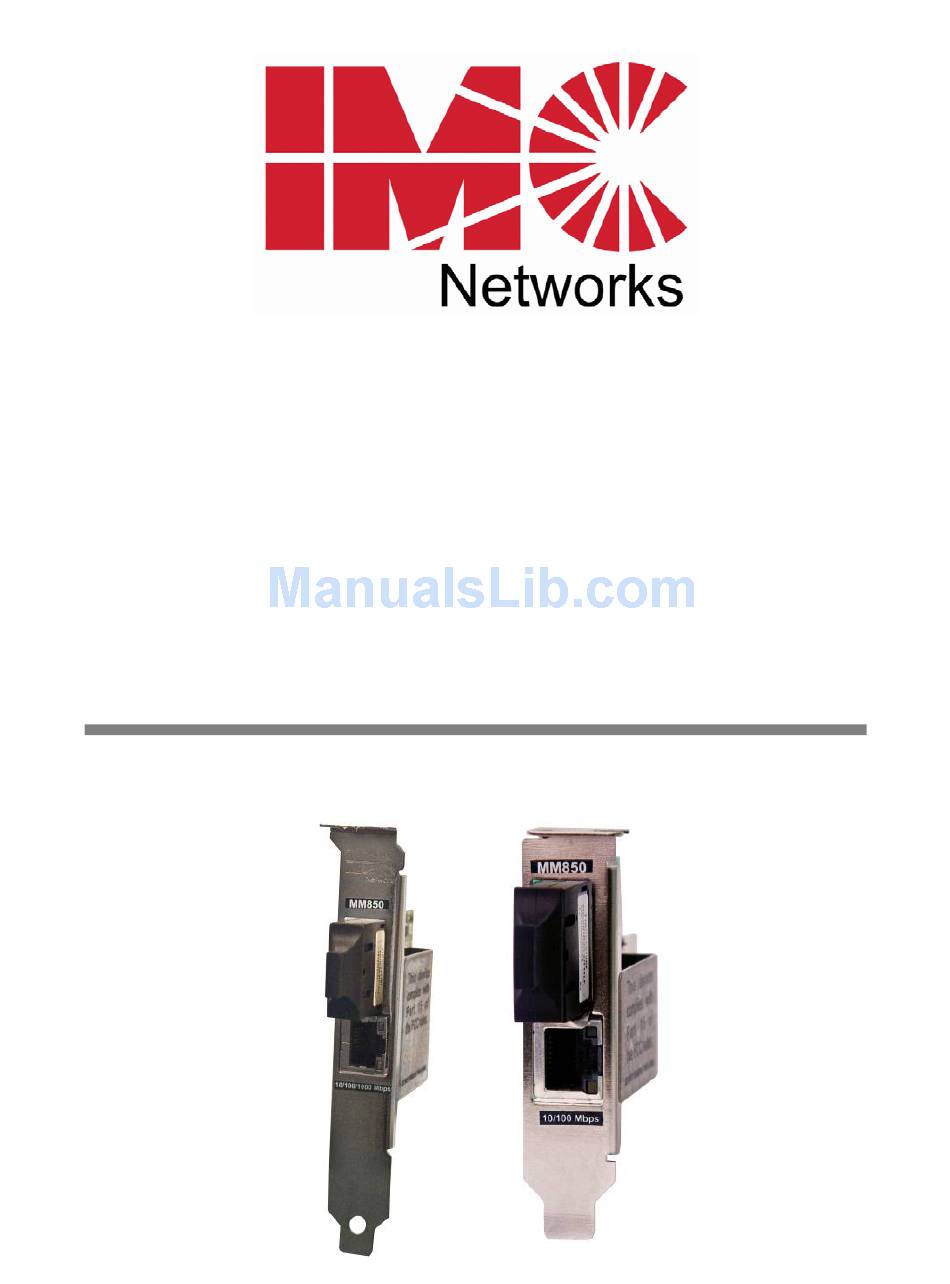

- Page 1 McPC/Giga-MediaLinX (PCI and Low Profile PCI Version) 10/100/1000 Mbps Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. - Page 3 Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the McPC/PCI-Giga-MediaLinX ..............1 Installing the McPC/PCI-Giga-MediaLinX (Standard and Low Profile Brackets) ..1 AutoCross ......................1 LED Indicators....................2 Specifications .....................2 IMC Networks Technical Support...............2 Fiber Optic Cleaning Guidelines.................3 Safety Certifications....................4...

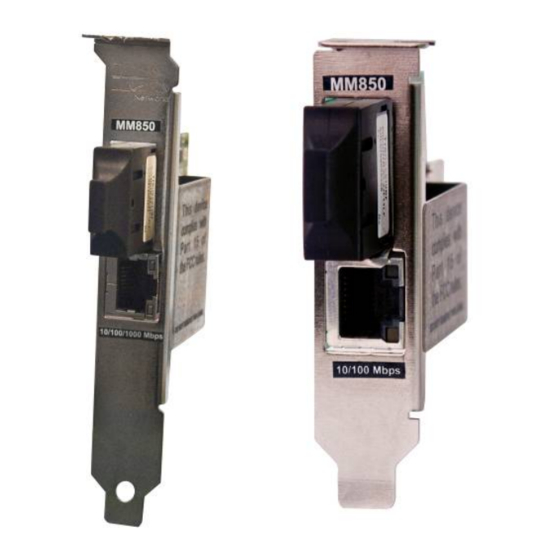

- Page 4 About the McPC/PCI-Giga-MediaLinX The McPC/PCI-Giga-MediaLinX is an IEEE 802.3 single-conversion, 10/100/1000 Mbps switching PC card media converter. It converts 10/100/1000 twisted pair connections to 1000Base-FX/SX fiber. The fiber port always operates at 1000 Mbps FDX; the copper port auto-senses the connected device's speed and duplex mode: 10 Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow Control).
-
Page 5: Specifications
-4°F to +158°F (-20°C to +70°C) Humidity: 5 - 95% (non-condensing) Power Consumption (Typical) Current Draw 0.7A @ 5 VDC Input Specifications Power Input: 5V IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada);... -
Page 6: Electrostatic Discharge Precautions
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. - Page 7 Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
- Page 8 © 2011 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McPC/Giga-MediaLinX is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
