When using dlsecure mode, configure the Uplink port for Tags in order for it to
accept VLAN tagged traffic. Assign up to 15 VLAN IDs to the Uplink port and then
assign one of those VLAN IDs to each Downlink port and SNMP.
Base VLAN Priority
The Uplink port has two outgoing queues; one for high priority traffic and one for low
priority traffic. iView² can set a Base VLAN Priority to designate what will be high
priority and low priority; the default value is 4. If the Base VLAN Priority is 4, 0-3 are
low priority and 4-7 are high priority. If the Base VLAN Priority is 3, 0-2 are low
priority and 3-7 are high priority. In the VLAN Configuration screen (shown above), a
Priority (0 - 7) can be entered for each port and SNMP.

Port Configuration

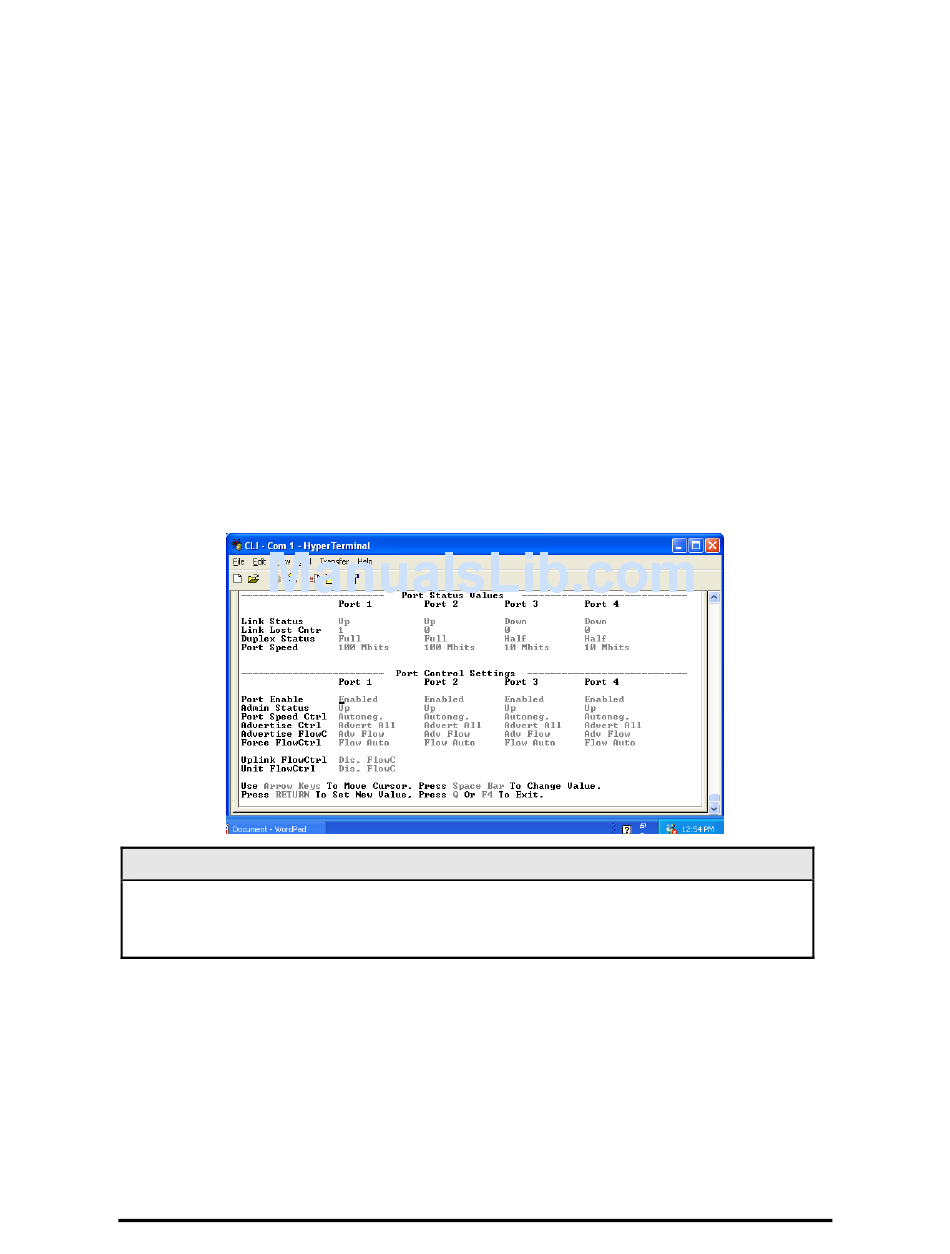

The AccessEtherLinX ports can be configured via serial configuration. Type ports and
press Enter to be taken to the Port Configuration screen. From this screen, users can
enable/disable ports, configure FiberAlert and Auto-Negotiation, etc. (This can also be
performed via iView².)
This screen shows the settings for the AccessEtherLinX/4 and includes information for the
unit's four downlink ports; the same screen for the AccessEtherLinX/3 will show information
for the unit's 3 ports.
Using iView²
iView² is a network management application for IMC Networks' intelligent
networking devices. It features a Graphic User Interface (GUI) and gives
network managers the ability to monitor and control products from a variety
of platforms.
