- Page 1 PD-Switch Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ...i Warranty...i About the PD-Switch ...1 Installing the PD-Switch ...2 Port LEDs ...3 Applications ...5 Fiber Optic Cleaning Guidelines...6 Electrostatic Discharge Precautions...6 IMC Networks Technical Support...7 Specifications ...7 Safety Certifications...8... -
Page 4: About The Pd-Switch

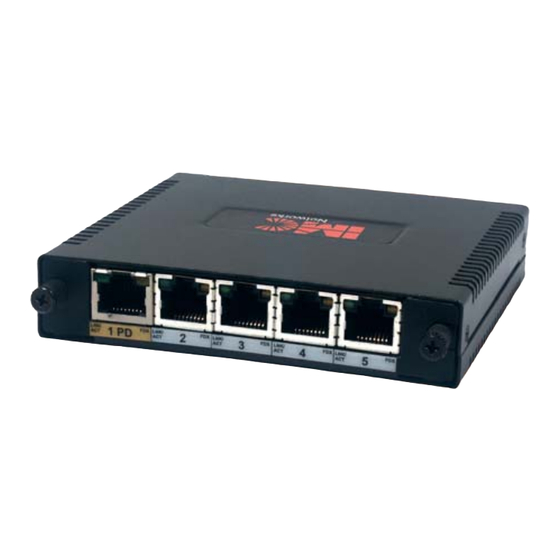

About the PD-Switch The PD-Switch is an unmanaged Ethernet powered device (IEEE 802.3af) that allows you to increase port density and service area of Ethernet networks. As a powered Layer 2 device, this switch receives power over the Ethernet cable instead of using a separate power outlet, providing Ethernet service to locations without being constrained by the availability of power outlets. -
Page 5: Installing The Pd-Switch
Installing the PD-Switch The PD-Switch is ready to use. Simply connect the appropriate data cables to ports 2 and up. Then connect the powered Ethernet cable to Port 1 (PD). Wall-Mount Installation The PD-Switch includes two X-shaped wall-mount holes in the enclosure. These holes accommodate the use of screws to flush-mount the PD-Switch to a wall. -
Page 6: Port Leds
Port LEDs The ports on the PD-Switch include diagnostic LEDs that indicate unique information about the port functionality and status. PD-Switch-TX/5 For all units with 5 copper ports, the two LEDs associated with each twisted pair port are defined as follows:... - Page 7 PD-Switch-TX/4+SFP On units with an SFP transceiver at Port 5, the FDX LED of port 4 has been re- defined as the “FX-LNK/ACT” LED for the fiber port. Port LED Name LNK/ACT AMBER Flash AMBER Color Function FEF or no link signal detected on SFP...
-
Page 8: Applications
Switch, extending the range of the network and increasing port density. One PD-Switch uses the standard four RJ-45 ports to connect to the network, while the other two use the fiber and SFP configurations to extend the network beyond the 200m range. -
Page 9: Fiber Optic Cleaning Guidelines
Fiber Optic Cleaning Guidelines Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;... -
Page 10: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Key Features: • Broadcast Storm Protection (limited to 1% of total traffic) • High Priority weighted queuing (10:1) to prevent port blocking •... -
Page 11: Safety Certifications
Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. PD-Switch is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
