Configuring VLAN IDs
The AccessEtherLinX is VLAN compatible, with the ability to accept traffic containing
802.1q VLAN tags on the Uplink port and direct that traffic to the twisted pair
downlink ports. When using VLAN IDs, the SNMP must be assigned an ID or else the
management and pinging features will not be available.
To configure VLAN IDs, press the Space Bar when in the Command List section of
the Main Configuration screen (serial configuration). VLAN is an available option.
Type vlan and press Enter for VLAN Configuration.
Decide whether the unit will be in dlsecure mode or dl_open mode. Configure as desired
and reboot. Use dl_open to configure multiple VLAN IDs on multiple ports

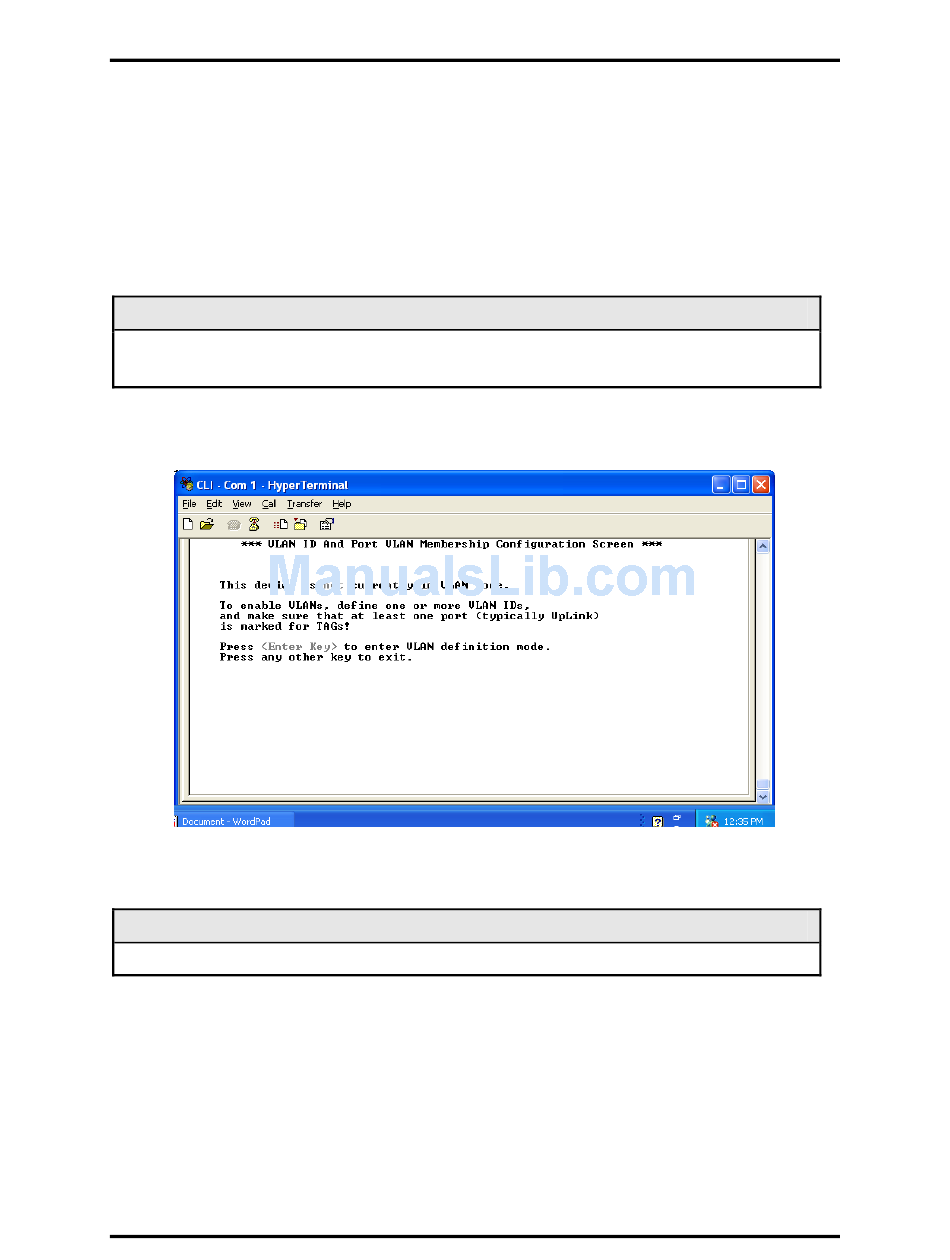

When the VLAN functionality is NOT already enabled, the following screen will
display:
Pressing Enter enables VLAN functionality and opens the VLAN Definition screen.
To disable VLAN functionality, delete all settings in the VLAN Definition screen.
A reboot must be performed after defining/changing VLAN ID information
To change VLAN functionality, when VLANS are enabled, type vlan and press Enter
to open the VLAN Definition screen (refer to the screen examples in the "dl_Open
Mode— Configuring Multiple VLAN IDs Per Port" and "Configuring a VLAN ID for
Each Port" sections).
Users can define up to 15 VLAN IDs. Valid VLAN IDs are 1 to 4,094.
NOTE
INSTALLATION TIP
11
.
.
