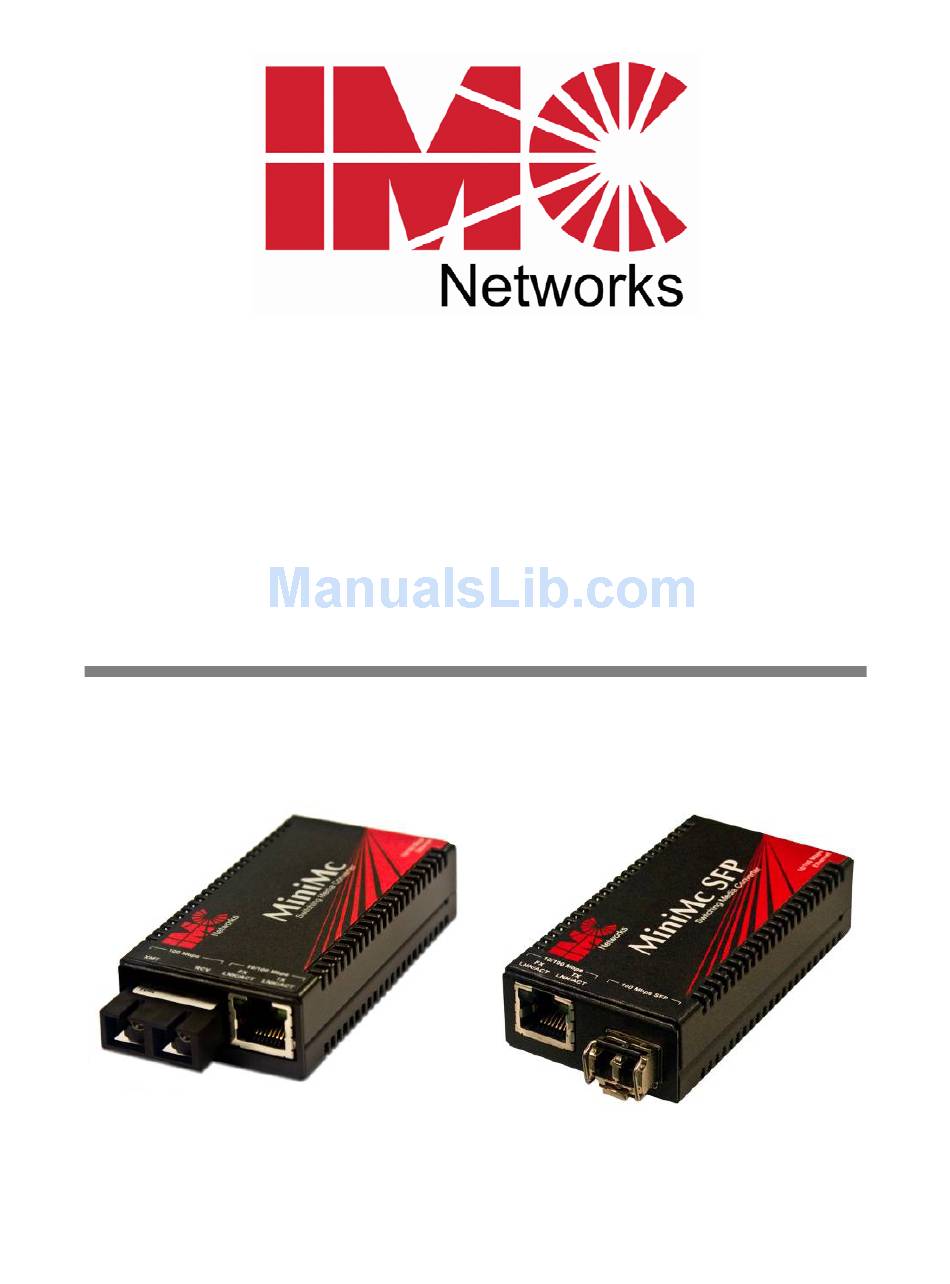

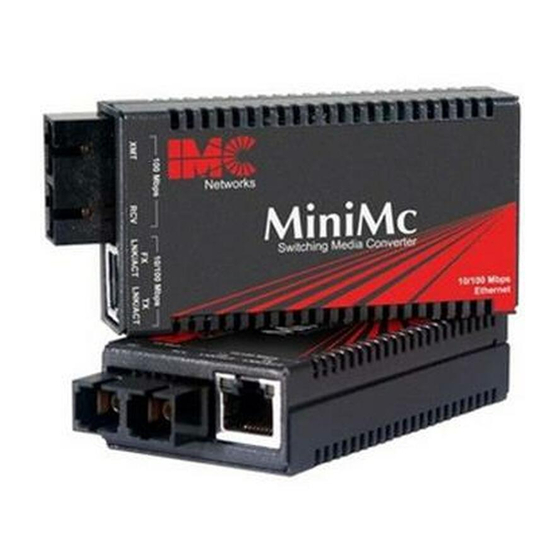

- Page 1 MiniMc TP-TX/FX MiniMc TP-TX/SFP Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement .............i Warranty......................i About the MiniMc....................1 Installing the MiniMc..................1 DIN Rail Mounting.....................1 Powering the MiniMc..................2 LED Operation....................2 Specifications .....................2 Fiber Optic Cleaning Guidelines.................3 Electrostatic Discharge Precautions..............3 Safety Certifications....................4... -
Page 4: Din Rail Mounting
1916 bytes. Installing the MiniMc The MiniMc can be installed in an IMC Networks PowerTray/18 (IMC P/N 850- 13086) or used as a standalone converter. The MiniMc installs virtually anywhere: as a standalone, table-top device or on a DIN rail. As a standalone device, install MiniMc in locations with extremely limited space. -
Page 5: Led Operation
Powering the MiniMc The MiniMc includes multiple powering options: • A country-specific, high-reliability AC power adapter (included) • IE-PowerTray/18 for Rack Mounting LED Operation Each MiniMc includes two LEDs, located on the RJ-45 connector. LED functions are as follows: FX TX FX TX FX LNK/ACT Glows green when a link is established on the fiber port;... -
Page 6: Fiber Optic Cleaning Guidelines
0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm) NOTE Use only the supplied IMC Networks wall adapter or USB cable with this product. Using a non-IMC Networks power source will void the warranty. Fiber Optic Cleaning Guidelines Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. -
Page 7: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 8 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. MiniMc is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
