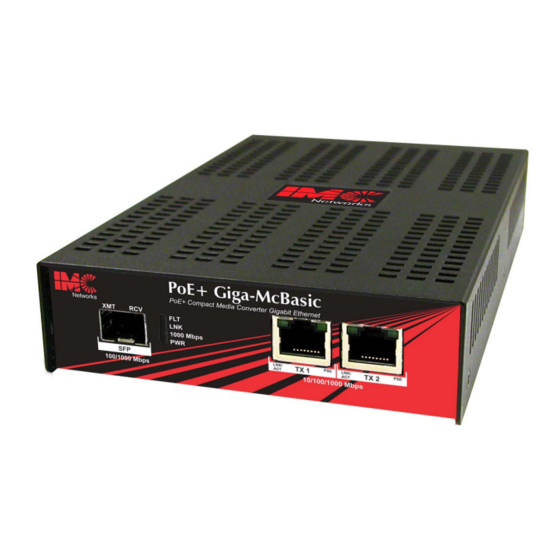

- Page 1 PoE Giga-McBasic and PoE+ Giga-McBasic Operation Manual Above illustration is representative; several models are available.
-
Page 2: Fcc Radio Frequency Interference Statement
IMC Networks' instructions and directions for a period of six (6) years after the original date of purchase. IMC Networks warrants to the original end- user purchaser that all SFPs shall be free from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions and directions for a period of one (1) year after the original date of purchase. -
Page 3: Table Of Contents
Installation ......................2 DIP Switch Configuration SFP and 1x9 ...............2 LED Operation SFP and 1x9................4 Troubleshooting ....................6 Specifications for the PoE Giga-McBasic .............7 About the PoE+ Giga-McBasic................9 Installation .......................10 DIP Switch Configuration SFP and 1x9 .............10 LED Operation SFP and 1x9................12 Troubleshooting ....................14... -
Page 4: About The Poe Giga-Mcbasic
CAT5 copper line, eliminating the need for a power connection to the remote device. The PoE Giga-McBasic provisions up to 15.4 watts on one copper port, and can be powered by an external AC adapter or DC terminal block. For more robust power requirements on both copper ports, please refer to the information about the PoE+ Giga-McBasic. -
Page 5: Installation
For example, connect a PoE Giga-McBasic , TX/SSLX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a product which has 1550 xmt and 1310 rcv, e.g. - Page 6 When set to ON, it will force the PSE output power on the copper port OFF when the LINK state is lost on the SFP line (copper or fiber SFP). By default, the DSW is set to OFF. PoE Giga-McBasic 1x9 Name Description...
-
Page 7: Led Operation Sfp And 1X9
LED Operation SFP and 1x9 The PoE Giga-McBasic includes LEDs for three ports, as shown below: PoE Giga-McBasic SFP SFP LED Functions are as follows: Glows red when a fault has been detected on the unit Glows green with a valid link... - Page 8 PoE Giga-McBasic 1x9 1x9 LED Functions are as follows: Glows red when a fault has been detected on the unit Glows green with a valid link 1000 Mbps Glows green when is running at 1000Mbps Glows green when unit is powered...
-
Page 9: Troubleshooting
Troubleshooting • PWR LED glows green when the unit is powered. If this LED is not lit, contact IMC Networks Technical Support. • If the PSE LED flashes twice at power-up, it may indicate an over current condition. The PSE LED should maintain solid green, to indicate consistent power. -
Page 10: Specifications For The Poe Giga-Mcbasic
Specifications for the PoE Giga-McBasic Multi-mode 1300nm Dual Fiber Single-mode 1310nm 1550nm Dual Fiber Single-mode 1310nm 1490nm Single-Strand Fiber Single-mode 1310nm 1550nm Single-Strand Fiber Copper 10/100/1000Mbps Ethernet Connections 10/100/1000 BaseT Auto Negotiation AutoCross Flow Control 10240 MTU Full Line-Rate Forwarding Input Specifications 100 to 240 ±10% VAC input, 50/60 Hz, 0.5A to 0.2A... - Page 11 IMC Networks Products Length of Warranty SFPs 1 year PoE Giga-McBasic 6 year NOTE Please refer to the Warranty Section at the beginning of this manual for the full terms of the warranty.
-
Page 12: About The Poe+ Giga-Mcbasic
100FDX or 1000FDX; a copper SFP supports the SGMII interface (10/100/1000Mbps). The SFP, with or without DDMI, is available for purchase through IMC Networks Distributors. The SFP must be MSA-compliant. The copper ports auto negotiate to the connected device’s speed and duplex mode: 10 Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow Control). -
Page 13: Installation
Installation PoE+ Giga-McBasic installs virtually anywhere: as a standalone, table-top device, with rackmount ears or using a Wallmount bracket. The rackmount ears and wallmount bracket are optional accessories available through IMC Networks distributors. Installation Tip Several models of the PoE+ Giga-McBasic support single-strand fiber for operation. Since single-strand fiber products use optics that transmit and receive on two different wavelengths, single-strand fiber products must be deployed in pairs. - Page 14 • Setting the LoSPd DSW to ON will force the SFP to operate at 100Mbps. When set in the default of OFF, the SFP will run at its maximum rate of the SFP installed. (100 or 1000 Mbps supported) • If a dual speed fiber SFP 100/1000Mbps is installed, setting the LoSpd to ON will force the SFP to operate at 100Mbps NOTE...
-
Page 15: Led Operation Sfp And 1X9
LED Operation SFP and 1x9 The PoE+ Giga-McBasic includes LEDs for three ports, as shown below: PoE+ Giga-McBasic SFP SFP LED Functions are as follows: Glows red when a fault has been detected on the unit Glows green with a valid link 1000 Mbps Glows green when SFP is running at 1000Mbps Glows green when unit is powered... - Page 16 PoE+ Giga-McBasic 1x9 1x9 LED Functions are as follows: Glows red when a fault has been detected on the unit Glows green with a valid link 1000 Mbps Glows green to indicate is running at 1000Mbps Glows green when unit is powered RJ-45 LED Functions are as follows: LNK/ACT Glows green with a valid link...
-
Page 17: Troubleshooting
PSE LED by a series of five flashes. • If the PoE injector has power that can be verified, but the PSE LED is off, then contact IMC Networks technical support. RJ-45 Pinouts The following table lists the pin configuration for the RJ-48 connector. -
Page 18: Specifications For The Poe+ Giga-Mcbasic
Specifications for the PoE+ Giga-McBasic Multi-mode 1300nm Dual Fiber Single-mode 1310nm 1550nm Dual Fiber Single-mode 1310nm 1490nm Single-Strand Fiber Single-mode 1310nm 1550nm Single-Strand Fiber Copper 10/100/1000Mbps Ethernet Connections 10/100/1000 BaseT Auto Negotiation AutoCross Flow Control 10240 MTU Full Line-Rate Forwarding Input Specifications Input Specifications 100 to 240 ±... -
Page 19: Poe Precautions (For Inside-A-Building Installation Only)
The PoE Giga-McBasic and PoE+ Giga-McBasic are for inside-a-building installation only. Both devices cannot be installed outside-a-building environment, as they cannot meet the PoE requirements, per the PoE standard. If installing the device outside, serious damage can occur and void the IMC Networks’ warranty. -
Page 20: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 21: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 22: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 23: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 24 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. PoE Giga-McBasic and PoE+ Giga-McBasic- is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
