PoE-Powered, Network-Extending 10/100Base-T Multi-Port Switch
PD-Switch combines flexible copper and fiber interface options with
port and packet-based traffic prioritization while extending network
range by utilizing Power over Ethernet (PoE) technology

Features and Benefits

10/100Base-T multi-port switch
powered by IEEE 802.3af Power Over
Ethernet
• PD accepts power from any network
device providing PoE
• Multiple ports increase network port
density
Meets a multitude of installation
requirements
• SFP and fiber port configurations
(optional) for different network
environments
• 1X9 fiber port is fixed at 100 Mbps
• SFP port speed is SFP dependent
• All RJ-45 ports feature Auto-Cross and
Auto-Negotiation
• Port for High Priority traffic
• Available with ST or SC fiber
connectors
• Optional single-strand fiber model
Full-Featured Switch
• Broadcast Storm Protection helps
control excessive broadcast traffic
• DiffServ on all ports provides quality of
service prioritization
• Far End Fault provides notification of
Link Loss on all fiber ports
• One High-Priority Port
• Supports 1,916 byte Packet Size

Application Example

The PD-Switch has been connected to a central (PoE) PSE-Switch, extending the range of the network and
increasing port density by using a combination of RJ-45 ports and fiber ports.
800-624-1070
PD-Switch

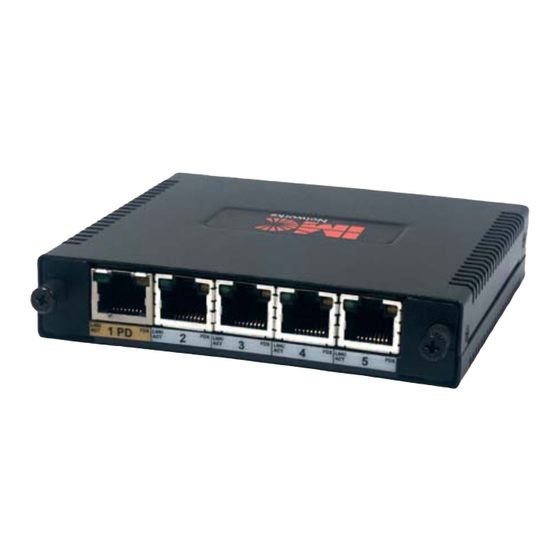

The (PoE) PD-Switch is a full-featured, 5-port 10/100Base-T MAC
layer switch that extends the range of Ethernet networks, and
increases port density, while being powered via IEEE 802.3af-
compliant PoE through its "PD-port" (eliminating the need to run
a separate power line for the device). Ethernet cabling usually
runs only 100 meters; through the use of the PD-Switch, the outer
range of an Ethernet network can be extended by an additional
100 meters.
With multiple port configurations, the PD-Switch provides a variety
of port options while increasing port density. PD-Switches come
equipped with one "PD" RJ-45 port and either:
• Four 10/100Base-T RJ-45 data ports
• Three 10/100Base-T RJ-45 data ports and one SFP data port
• Two 10/100Base-T RJ-45 data ports and one 100Base-FX fiber
data port
