Summary of Contents for IMC Networks IE-MiniMc LFPT

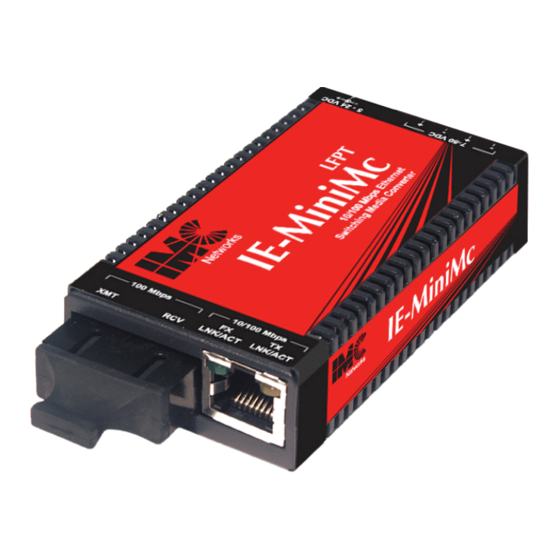

- Page 1 IE-MiniMc LFPT and Telco/LFPT Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
FCC Radio Frequency Interference Statement Class A (using DC terminal power or Power Over Ethernet (POE)) This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Warranty
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 4: Table Of Contents
Installing IE-MiniMc LFPT and Telco/LFPT ............1 Hardware Mounting Options ................1 Powering the IE-MiniMc LFPT and Telco/LFPT ...........2 About Power Over Ethernet (PoE) and IE-MiniMc LFPT and Telco/LFPT .....2 LED Operation....................2 Link Fault Pass Through (LFPT) ................3 DC Terminal Block Wiring Instructions...............3 Cascading DC Power ..................4... -
Page 5: About The Ie-Minimc Lfpt And Telco/Lfpt Versions
A PowerTray/18 for high density applications Hardware Mounting Options The IE-MiniMc LFPT and Telco/LFPT can be mounted on a DIN rail or using wall mount brackets (shown below). DIN rail clips (part number 806-39105) and wall mount brackets (part number 895- 39229) are available for purchase through an IMC Networks Distributor. -
Page 6: Powering The Ie-Minimc Lfpt And Telco/Lfpt
IE-PowerTray/18 for Rack Mounting About Power Over Ethernet (PoE) and IE-MiniMc LFPT and Telco/LFPT Power Over Ethernet technology allows the IE-MiniMc LFPT to be a Powered Device (PD) and draw power when connected to Power Sourcing Equipment (PSE). Power Sourcing Equipment distributes an electrical current across existing copper data cabling. -
Page 7: Link Fault Pass Through (Lfpt)
A fault on any segment will force all LINK LEDs off. DC Terminal Block Wiring Instructions The IE-MiniMc LFPT and Telco/LFPT can also be powered with the DC terminal block. From a power source, connect to any one positive and any one negative terminal on the IE-MiniMc LFPT and Telco/LFPT. -
Page 8: Cascading Dc Power
Cascading DC Power When installing multiple IE-MiniMc LFPT and Telco/LFPT units on a DIN rail, the end user can connect to one DC input source, and then cascade from one DC block to... -
Page 9: Specifications
(Telco Model) DC jack 5 to 24 VDC When IE-MiniMc LFPT uses PoE technology to be a PD, the maximum supply voltage is 50V * Telco compatible 48 VDC allows for an absolute maximum voltage of 56.5 VDC. AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A max. -
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MiniMc LFPT and Telco/LFPT is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
