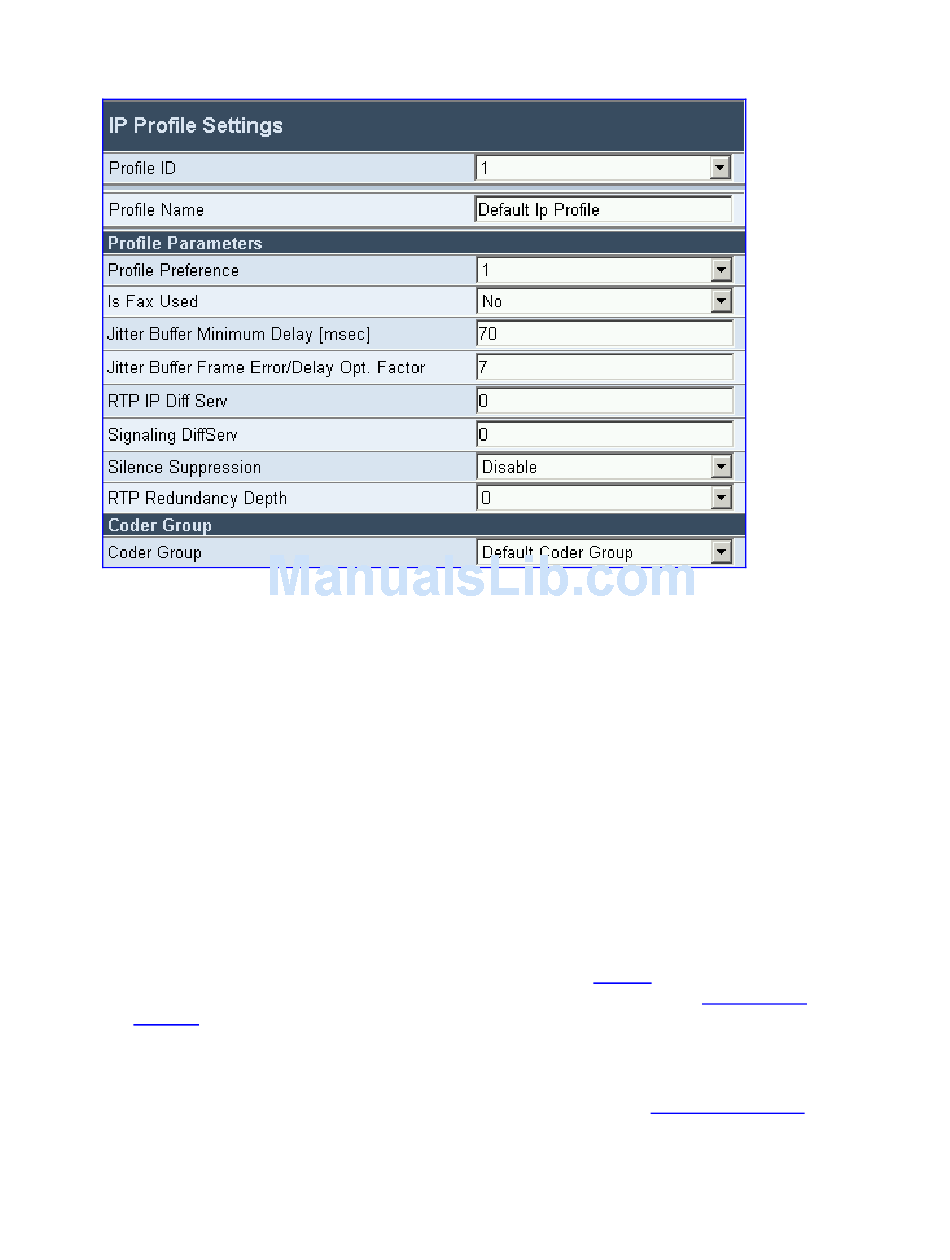

Figure 40 IP Profile Settings Screen
2 In the 'Profile ID' drop-down list, select the IP Profile you want to edit (up to four IP
Profiles can be configured).
3
In the 'Profile Name' field, enter a name that enables you to identify the Profile intuitively
and easily.
4
In the 'Profile Preference' drop-down list, select the preference (1-10) of the current
Profile. The preference option is used to determine the priority of the Profile. If both IP
and Tel profiles apply to the same call, the coders and other common parameters of the
preferred Profile are applied to that call. If the Preference of the Tel and IP Profiles is
identical, the Tel Profile parameters are applied.
Note: If the coder lists of both IP and Tel Profiles apply to the same call, an intersection of
the coders is performed (i.e., only common coders remain). The order of the coders is
determined by the preference.
5 Configure the Profile's parameters according to your requirements. For detailed
information on each parameter see the description of the screen in which it is configured
as an individual parameter.
6 In the 'Coder Group' drop-down list, select the coder group you want to assign to that
Profile. You can select the gateway's default coders (see
the coder groups you defined in the Coder Group Settings screen (see
Settings on page 89).
7 Repeat steps 2 to 6 for the second to fifth IP Profiles (optional).
8
Click the Submit button to save your changes.
9 To save the changes so they are available after a power fail see
page 145.
94
Coders
3Com VCX V7111 VoIP SIP Gateway User Manual
on page 58) or one of
Coder Group
Save Configuration on
