2
8FXS and 8FXO establish a voice path connection from the phone to the PBX
immediately the phone handset is raised.
3
Dial the destination number (the DTMF digits are sent, over IP, directly to the PBX).
4 All tones heard are generated from the PBX (such as Ringback, busy or fast busy tones).
5
There is one-to-one mapping between 8FXS ports and PBX lines.
6 The call is disconnected when the phone connected to the 8FXS goes onhook.
Dialing from Other PBX Line or from PSTN
To configure the call, follow these steps:
1
Dial the PBX subscriber number the same way as if the user's phone was connected
directly to PBX.
2
Immediately as PBX rings into 8FXO, the ring signal is "send" to phone connected to
8FXS.
3 Once the phone's handset, connected to 8FXS is raised, the 8FXO seizes the PBX line
and the voice path is established between the phone and the PBX line.
4 There is a one to one mapping between PBX lines and 8FXS ports. Each PBX line is
routed to the same phone (connected to 8FXS).
5
The call is disconnected when phone connected to 8FXS goes onhook.
8FXS Configuration (Using the Embedded Web Server)
To configure the 8FXS, follow these steps:
1
In the 'Endpoint Phone Numbers' screen, assign the phone numbers 100 to 107 for the
gateway's endpoints.

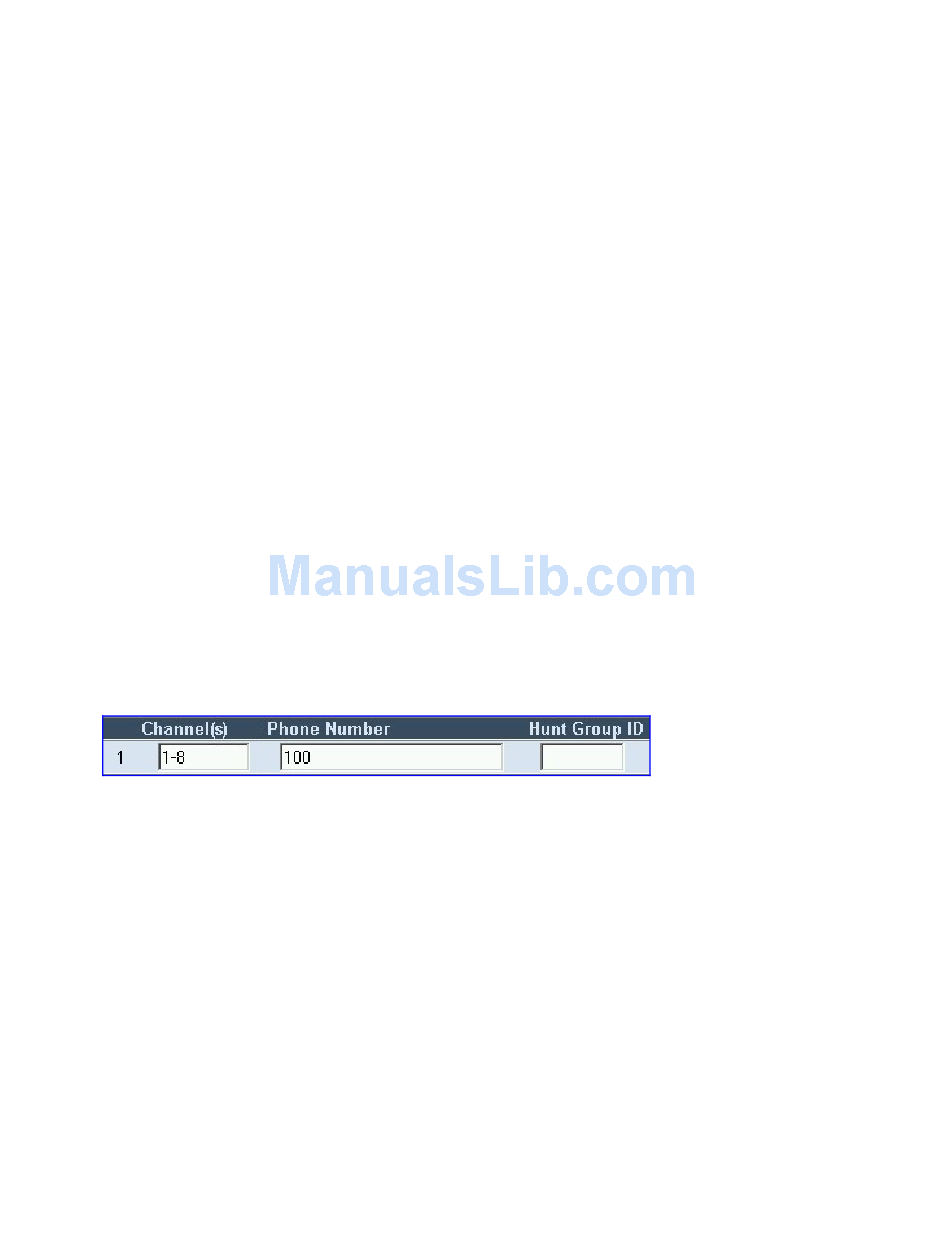

Figure 81
Assign Phone Numbers
2 In the 'Automatic Dialing' screen, enter the phone numbers of the 8FXO gateway in the
'Destination Phone Number' fields. When a phone connected to port #1 goes offhook,
the FXS gateway automatically dials the number '200'.
