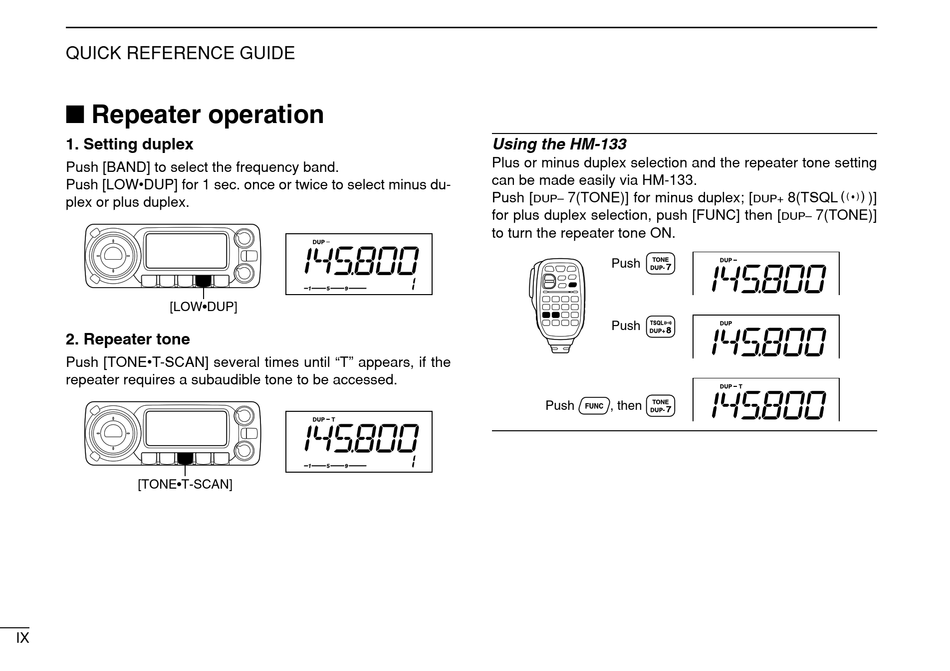

I Repeater Operation - Icom IC-E208 Instruction Manual

QUICK REFERENCE GUIDE

I Repeater operation

1. Setting duplex
Push [BAND] to select the frequency band.
Push [LOW•DUP] for 1 sec. once or twice to select minus du-
plex or plus duplex.
[LOW•DUP]
2. Repeater tone
Push [TONE•T-SCAN] several times until "T" appears, if the
repeater requires a subaudible tone to be accessed.
[TONE•T-SCAN]
IX
Using the HM-133
Plus or minus duplex selection and the repeater tone setting
can be made easily via HM-133.
Push [ 7(TONE)] for minus duplex; [
–
DUP
for plus duplex selection, push [FUNC] then [
to turn the repeater tone ON.
Push
Push
Push , then
8(TSQLS)]
+
DUP
7(TONE)]
–
DUP
