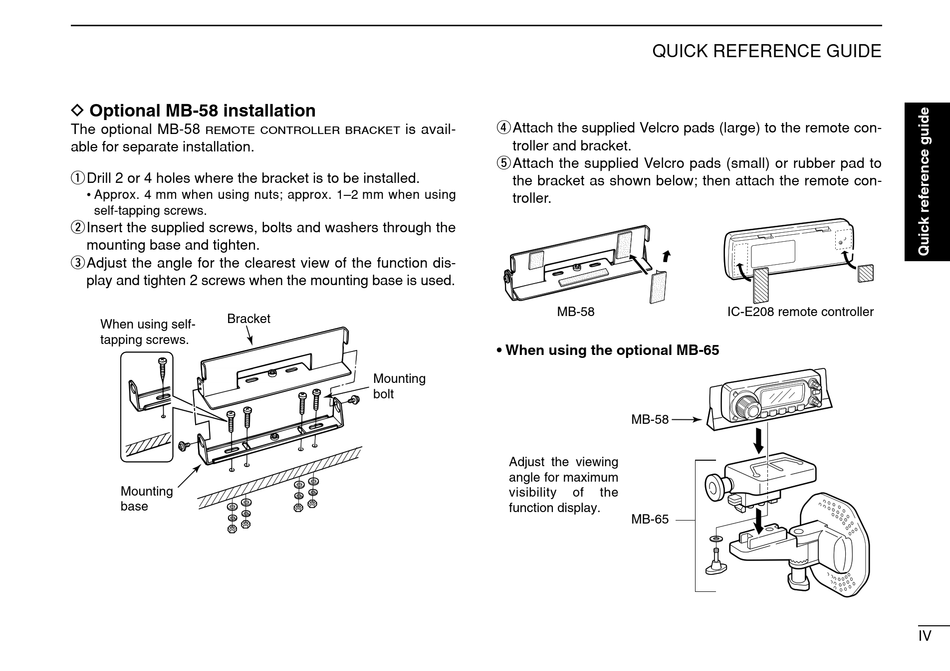

D Optional MB-58 installation
The optional MB-58
REMOTE CONTROLLER BRACKET
able for separate installation.
q Drill 2 or 4 holes where the bracket is to be installed.
• Approx. 4 mm when using nuts; approx. 1–2 mm when using
self-tapping screws.
wInsert the supplied screws, bolts and washers through the
mounting base and tighten.
eAdjust the angle for the clearest view of the function dis-
play and tighten 2 screws when the mounting base is used.
Bracket
When using self-
tapping screws.
Mounting
base
rAttach the supplied Velcro pads (large) to the remote con-
is avail-
troller and bracket.
tAttach the supplied Velcro pads (small) or rubber pad to
the bracket as shown below; then attach the remote con-
troller.
• When using the optional MB-65
Mounting
bolt
Adjust the viewing
angle for maximum
visibility
function display.
