4 – Managing Switches
Switch Data Window
Fan 2 Status
Power Supply 1 Status
Power Supply 2 Status
Temperature Failure Port
Shutdown
Warning Temperature
Failure Temperature
Diag Status
Diag Fault Code
Test Status
Test Fault Code
IP Address
Subnet Mask
Gateway
SNMP Enabled
Broadcast Support
NTP Client Enabled
NTP Server Address
Use Front Port
User Login Group
4-4

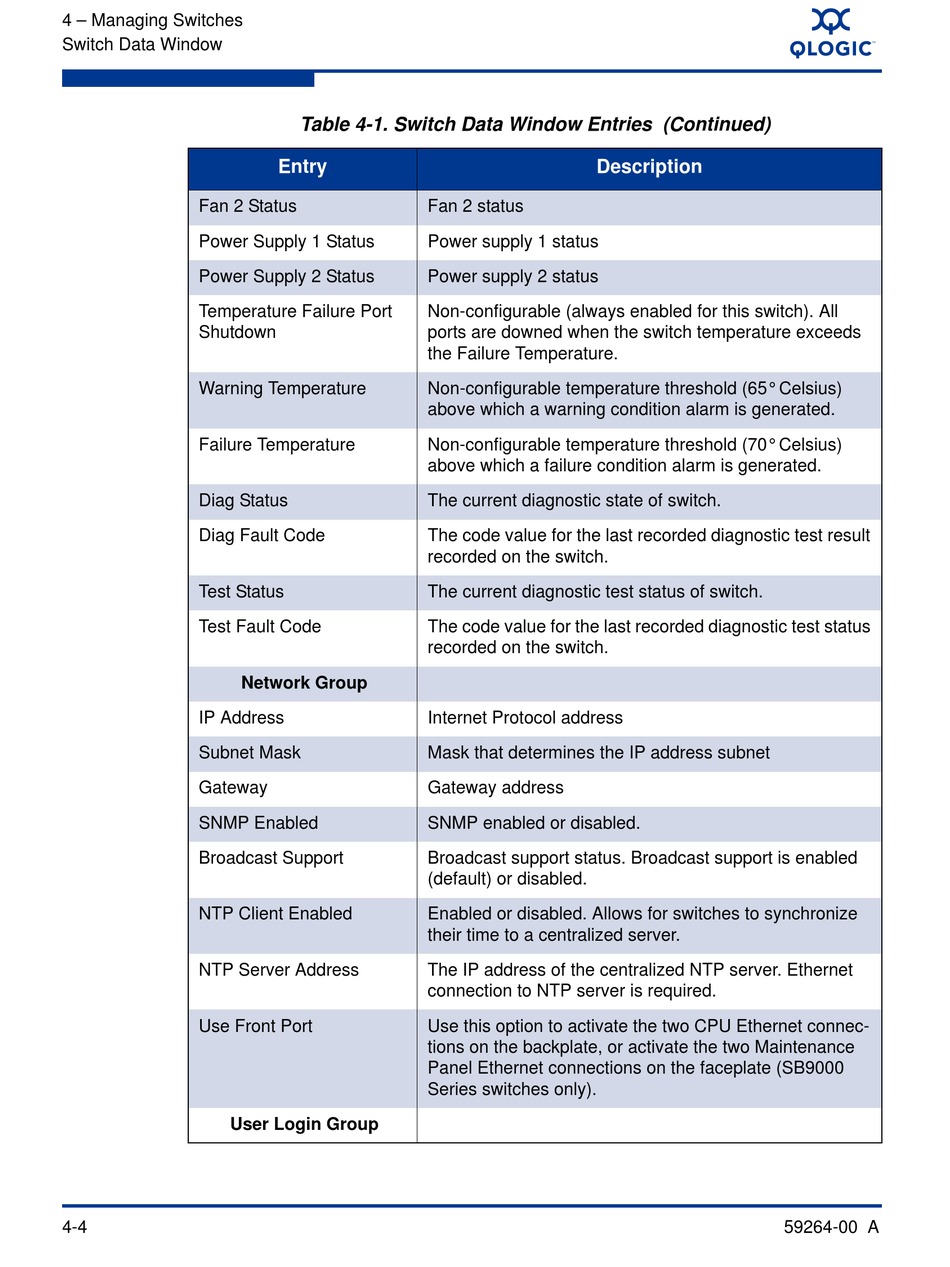

Table 4-1. Switch Data Window Entries (Continued)
Entry
Network Group
Description
Fan 2 status
Power supply 1 status
Power supply 2 status
Non-configurable (always enabled for this switch). All
ports are downed when the switch temperature exceeds
the Failure Temperature.
Non-configurable temperature threshold (65° Celsius)
above which a warning condition alarm is generated.
Non-configurable temperature threshold (70° Celsius)
above which a failure condition alarm is generated.
The current diagnostic state of switch.
The code value for the last recorded diagnostic test result
recorded on the switch.
The current diagnostic test status of switch.
The code value for the last recorded diagnostic test status
recorded on the switch.
Internet Protocol address
Mask that determines the IP address subnet
Gateway address
SNMP enabled or disabled.
Broadcast support status. Broadcast support is enabled
(default) or disabled.
Enabled or disabled. Allows for switches to synchronize
their time to a centralized server.
The IP address of the centralized NTP server. Ethernet
connection to NTP server is required.
Use this option to activate the two CPU Ethernet connec-
tions on the backplate, or activate the two Maintenance
Panel Ethernet connections on the faceplate (SB9000
Series switches only).
S
59264-00 A
