4 – Managing Switches
Configuring a Switch

Switch Properties

To open the Switch Properties dialog, choose one of the following:
Open the faceplate display for the switch you be configuring. Open the
Switch menu and select Switch Properties.
Right-click a switch graphic in the faceplate display, and select Switch
Properties from the popup menu.
Use the Switch Properties dialog to change the following switch configuration
parameters:

Domain ID and Domain ID Lock

Syslog
Symbolic Name
Switch Administrative States
Broadcast Support
In-band Management
Fabric Device Management Interface
Domain ID and Domain ID Lock
The domain ID is a unique Fibre Channel identifier for the switch. The Fibre
Channel address consists of the domain ID, port ID, and the Arbitrated Loop
Physical Address (ALPA). The maximum number of switches within a fabric is 239
with each switch having a unique domain ID.
4-16

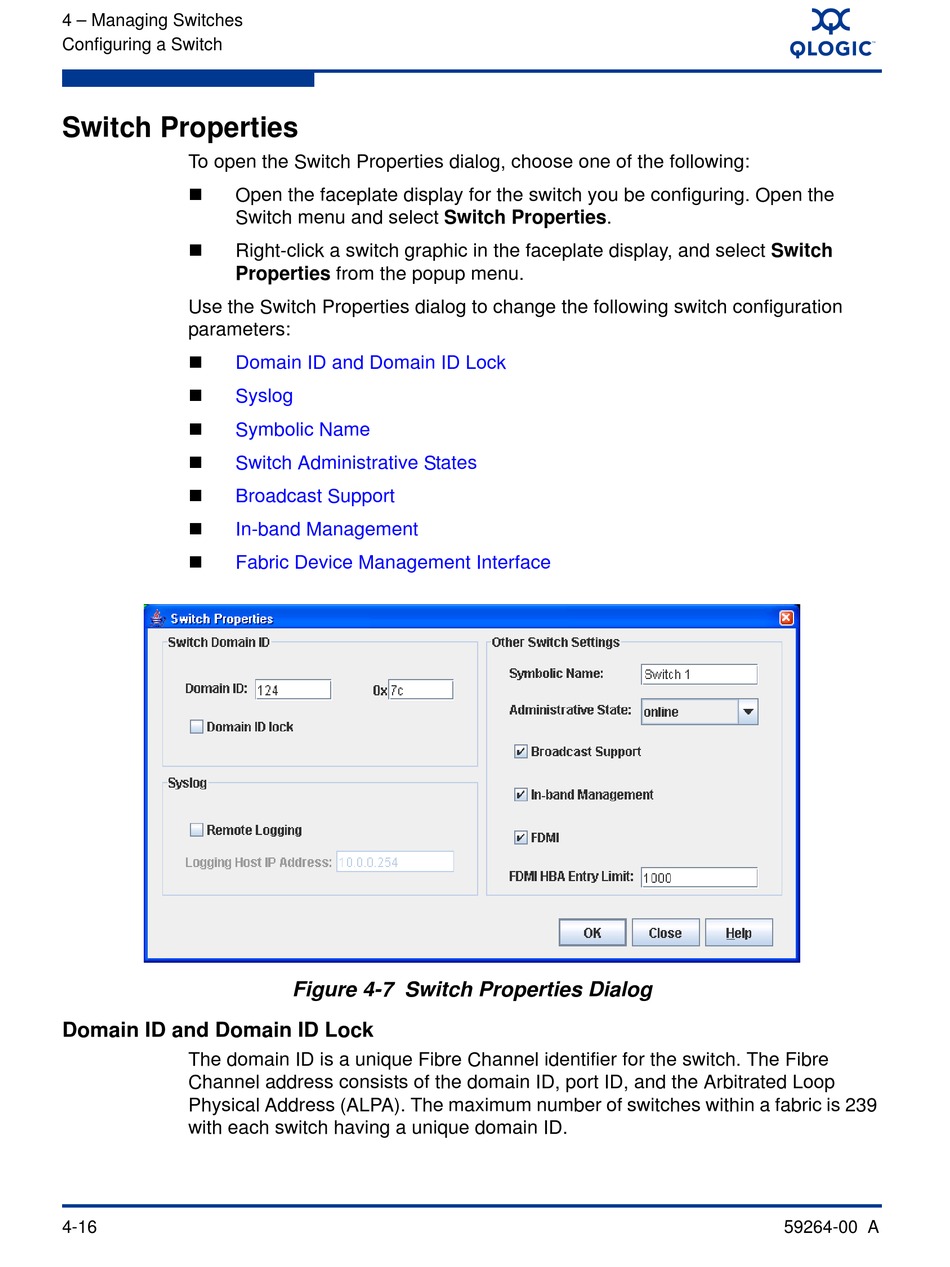

Figure 4-7 Switch Properties Dialog
S
59264-00 A
