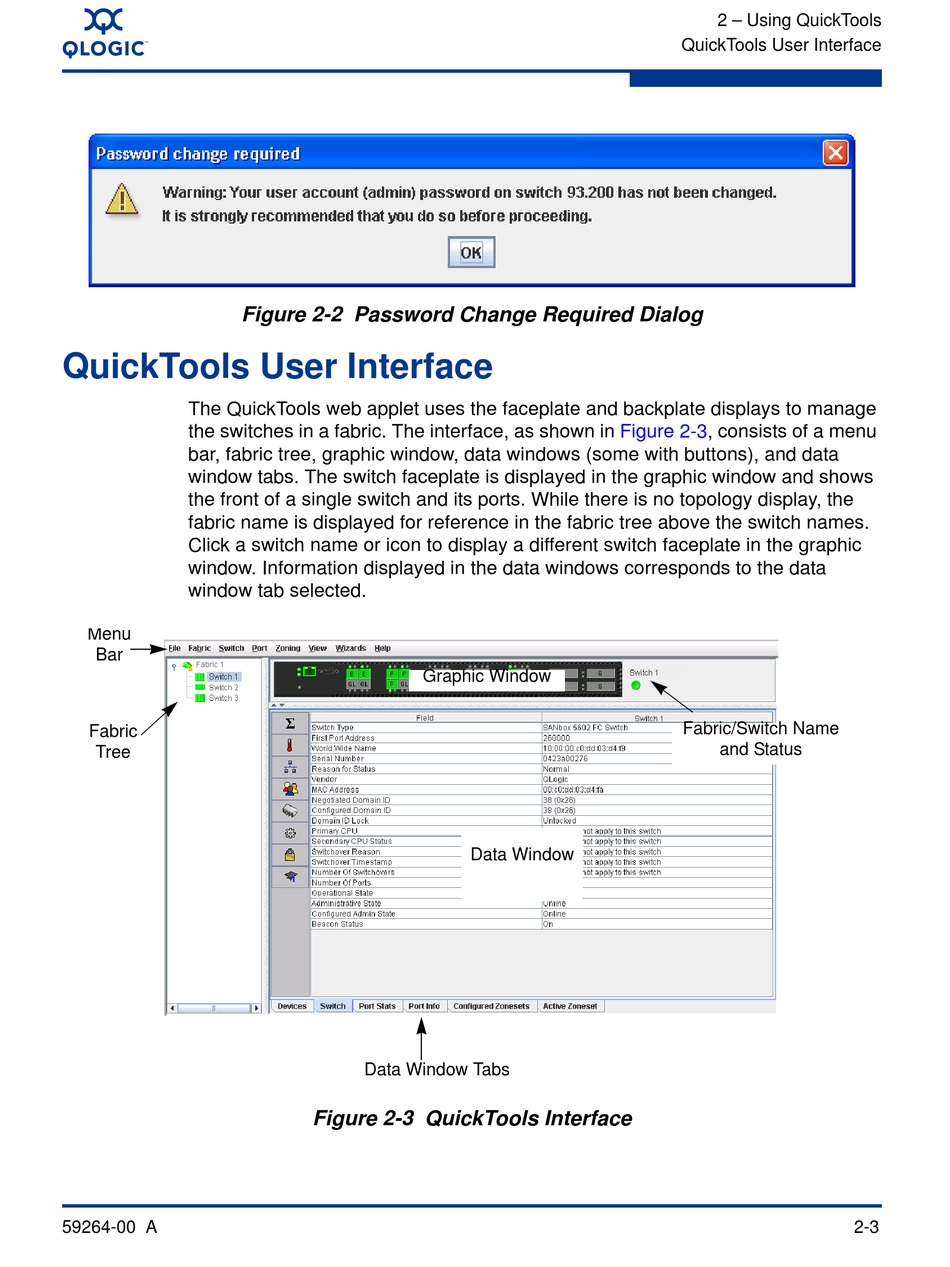

QuickTools User Interface

The QuickTools web applet uses the faceplate and backplate displays to manage
the switches in a fabric. The interface, as shown in
bar, fabric tree, graphic window, data windows (some with buttons), and data
window tabs. The switch faceplate is displayed in the graphic window and shows
the front of a single switch and its ports. While there is no topology display, the
fabric name is displayed for reference in the fabric tree above the switch names.
Click a switch name or icon to display a different switch faceplate in the graphic
window. Information displayed in the data windows corresponds to the data
window tab selected.
