A
Port
Zoning
View
Wizards
Help

Popup Menus

Popup menus are displayed when you right-click the switch faceplate or backplate
images in the graphic window. Popup menu options give you quick access to the
common tasks and dialogs, such as:
Refreshing a switch
Selecting all ports
Properties dialogs (Port, Switch, Network, and SNMP)
Services dialog
Port diagnostics dialogs
NOTE:
The Port menu bar and Port popup options are not accessible in backplate
view.
59264-00 A

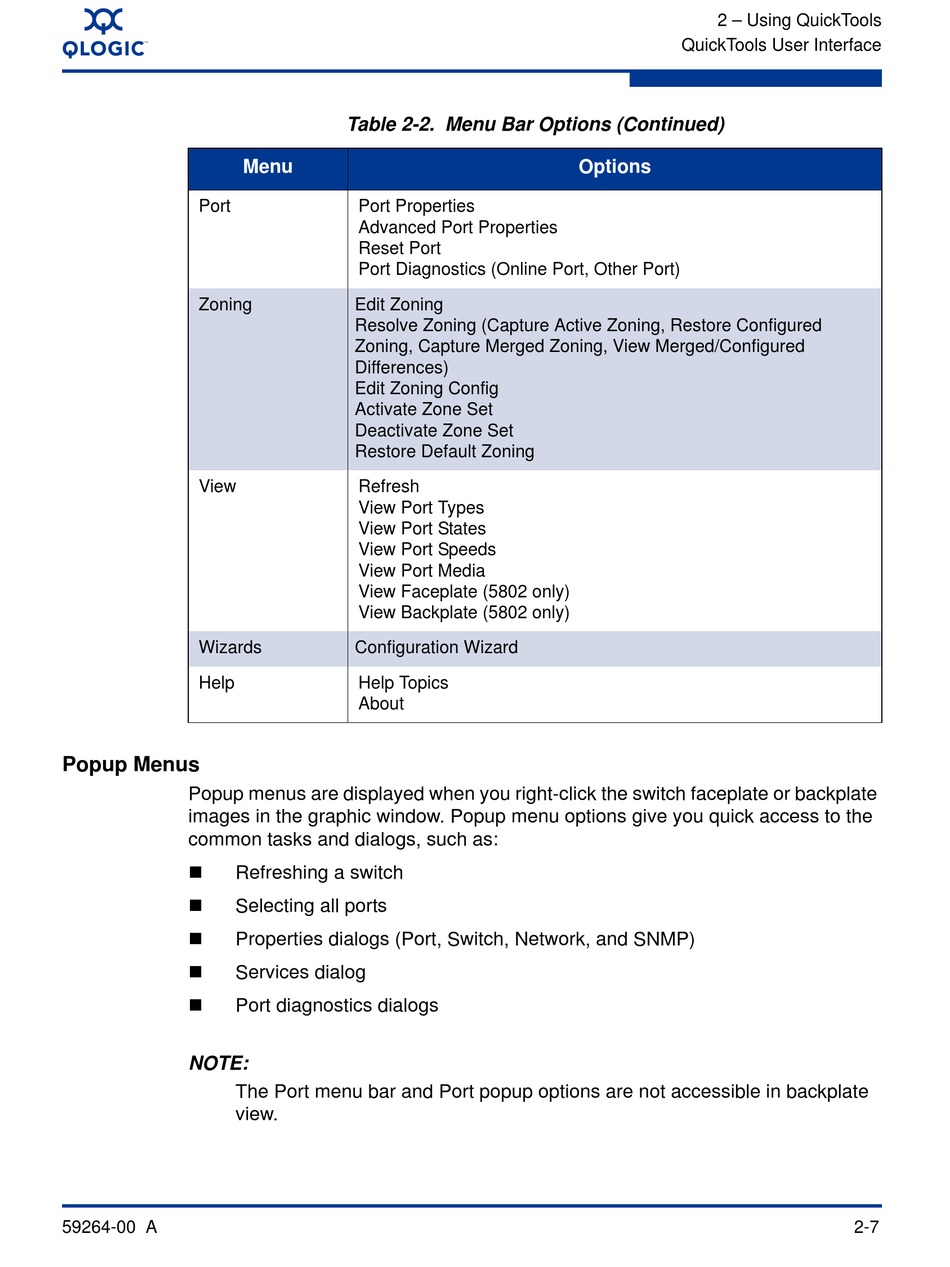

Table 2-2. Menu Bar Options (Continued)
Menu
Port Properties
Advanced Port Properties
Reset Port
Port Diagnostics (Online Port, Other Port)
Edit Zoning
Resolve Zoning (Capture Active Zoning, Restore Configured
Zoning, Capture Merged Zoning, View Merged/Configured
Differences)
Edit Zoning Config
Activate Zone Set
Deactivate Zone Set
Restore Default Zoning
Refresh
View Port Types
View Port States
View Port Speeds
View Port Media
View Faceplate (5802 only)
View Backplate (5802 only)
Configuration Wizard
Help Topics
About
2 – Using QuickTools
QuickTools User Interface
Options
2-7
