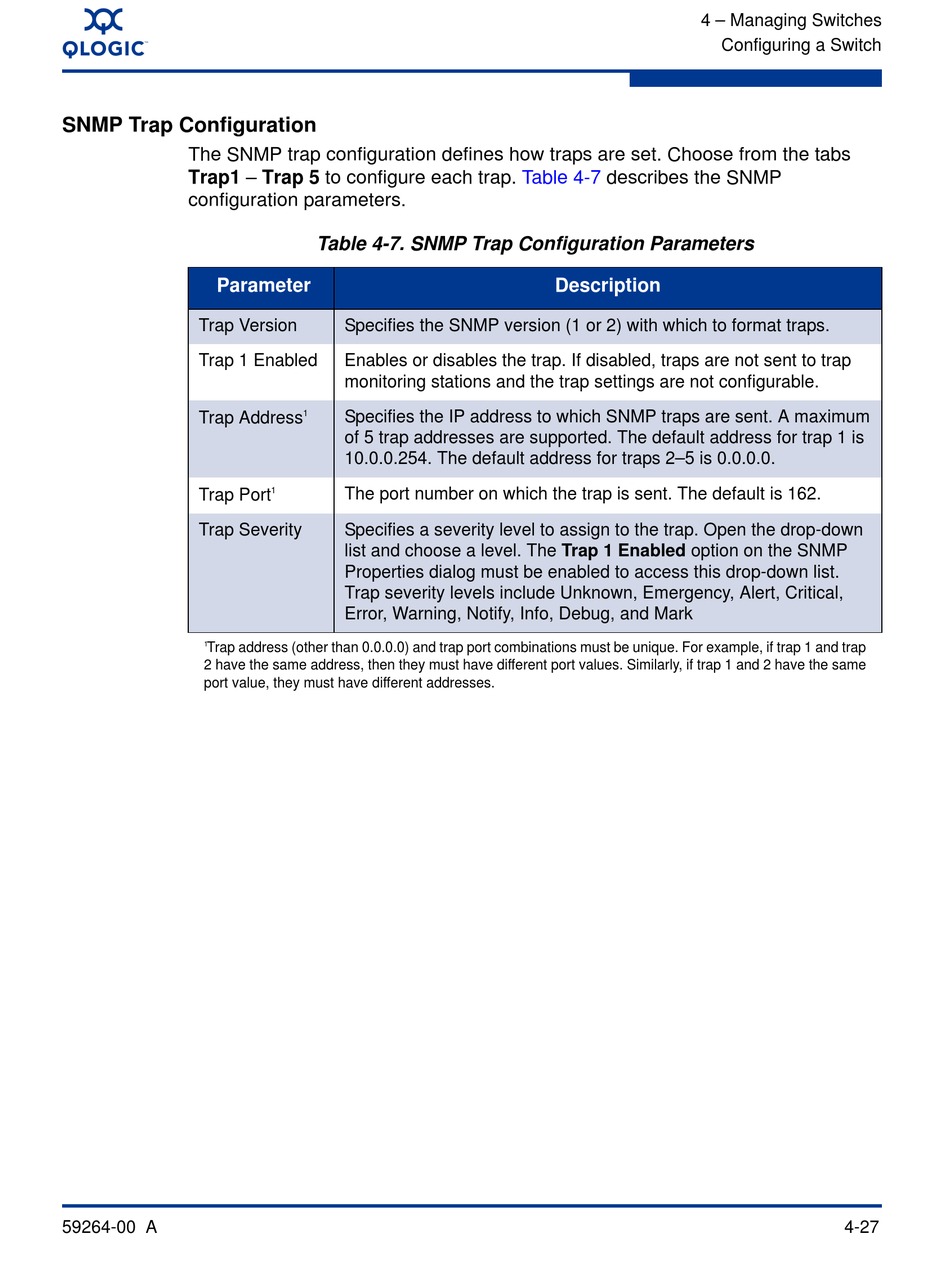

SNMP Trap Configuration

The SNMP trap configuration defines how traps are set. Choose from the tabs
Trap1 – Trap 5 to configure each trap.
configuration parameters.
Parameter
Trap Version
Trap 1 Enabled
Trap Address
Trap Port
Trap Severity
1
Trap address (other than 0.0.0.0) and trap port combinations must be unique. For example, if trap 1 and trap
2 have the same address, then they must have different port values. Similarly, if trap 1 and 2 have the same
port value, they must have different addresses.
59264-00 A
Table 4-7. SNMP Trap Configuration Parameters
Specifies the SNMP version (1 or 2) with which to format traps.
Enables or disables the trap. If disabled, traps are not sent to trap
monitoring stations and the trap settings are not configurable.
1 Specifies the IP address to which SNMP traps are sent. A maximum
of 5 trap addresses are supported. The default address for trap 1 is
10.0.0.254. The default address for traps 2–5 is 0.0.0.0.
The port number on which the trap is sent. The default is 162.
1
Specifies a severity level to assign to the trap. Open the drop-down
list and choose a level. The Trap 1 Enabled option on the SNMP
Properties dialog must be enabled to access this drop-down list.
Trap severity levels include Unknown, Emergency, Alert, Critical,
Error, Warning, Notify, Info, Debug, and Mark
Table 4-7 describes the SNMP
Description
