Configured Zonesets Data Window

The Configured Zonesets data window, shown in
sets, zones, aliases, and zone membership in the zoning database. To open the
Configured Zonesets data window, click the Configured Zonesets tab below the
data window.
The Configured Zonesets data window uses display conventions for expanding
and contracting entries that are similar to the fabric tree. An entry handle located
to the left of an entry in the tree indicates that the entry can be expanded. Click
this handle or double-click the following entries to expand or collapse them:
A zone set entry expands to show its member zones.
A zone entry expands to show its members by device port World Wide
Name, or device port Fibre Channel address.
The alias entry expands to show its entries.
59264-00 A

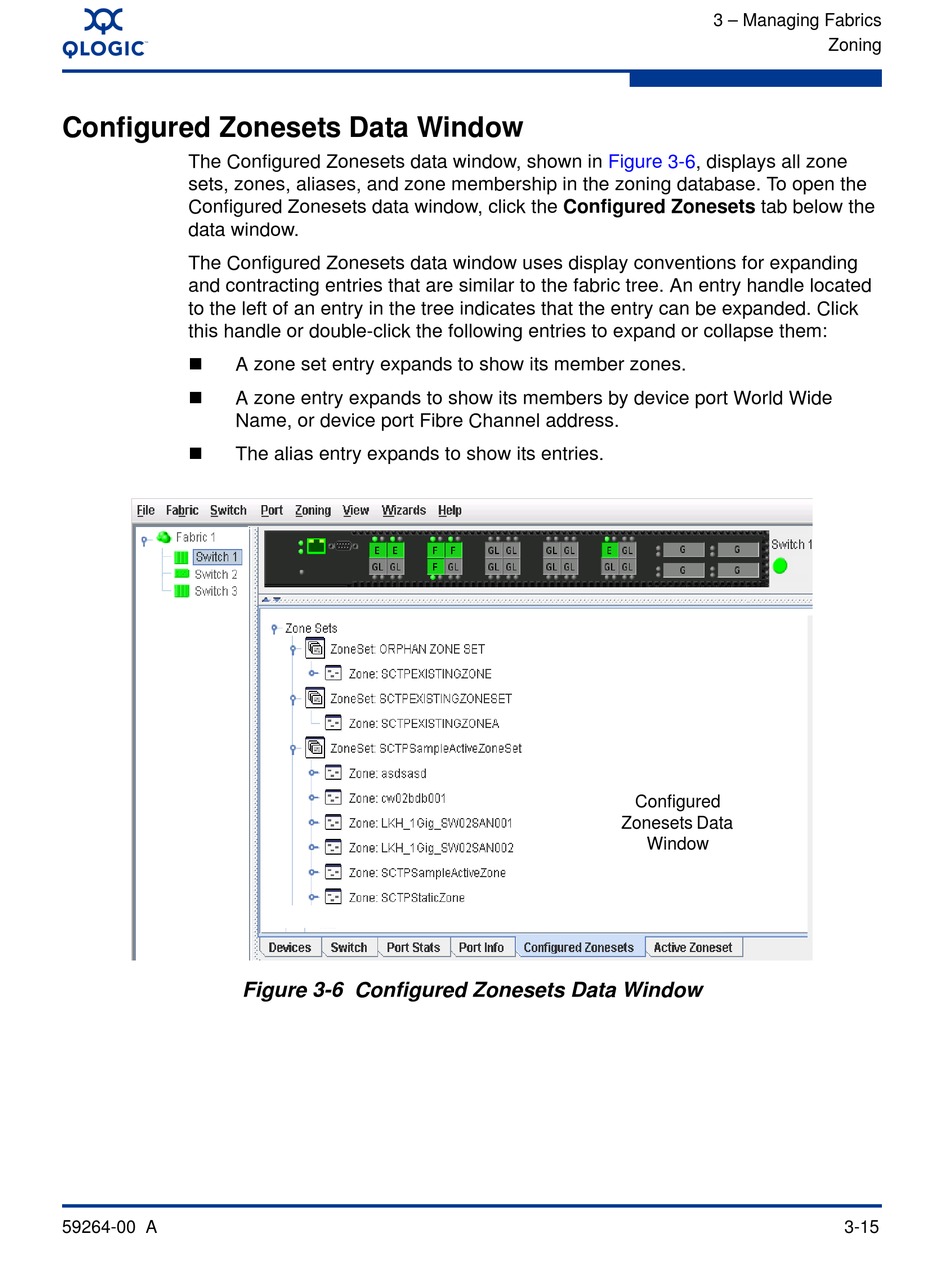

Figure 3-6 Configured Zonesets Data Window
3 – Managing Fabrics
Figure 3-6, displays all zone
Configured
Zonesets Data
Window
Zoning
3-15
