2 – Using QuickTools
QuickTools User Interface

Maintenance Panel Health Check

The Maintenance Panel Health Check feature provides notification to the user of
error conditions that have been detected and will require attention. After the fault
condition has been fixed, the fault field shown underneath the switch will be
removed, indicating that switch is normal status.
NOTE:
The up/down arrows on the divider bar (between the MP Health Check
entries and data windows) enable you to move the divider bar up or down.
With the faceplate image and data windows displayed, click the up arrow (on
left) to move the divider up to the top of the window, thus completely hiding
the faceplate image. Click the down arrow (on right) to move the divider
back to the middle; click the down arrow again to completely hide the data
window. You can also click-and-drag the divider bar to manually move it up
or down.
MP Health
Check
Entries
Move
Divider
Arrows
2-4

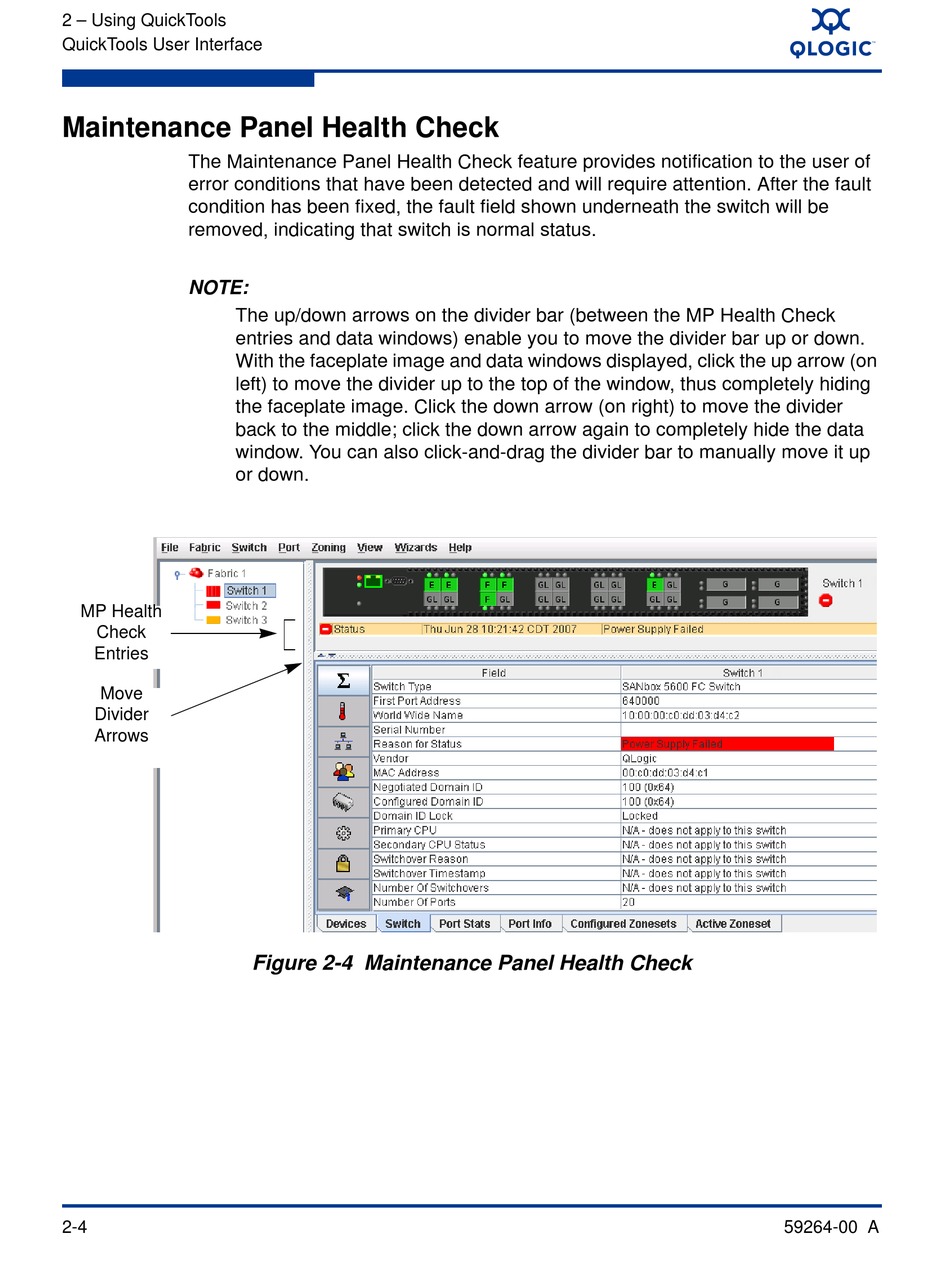

Figure 2-4 Maintenance Panel Health Check
