Getting Started with EPICenter

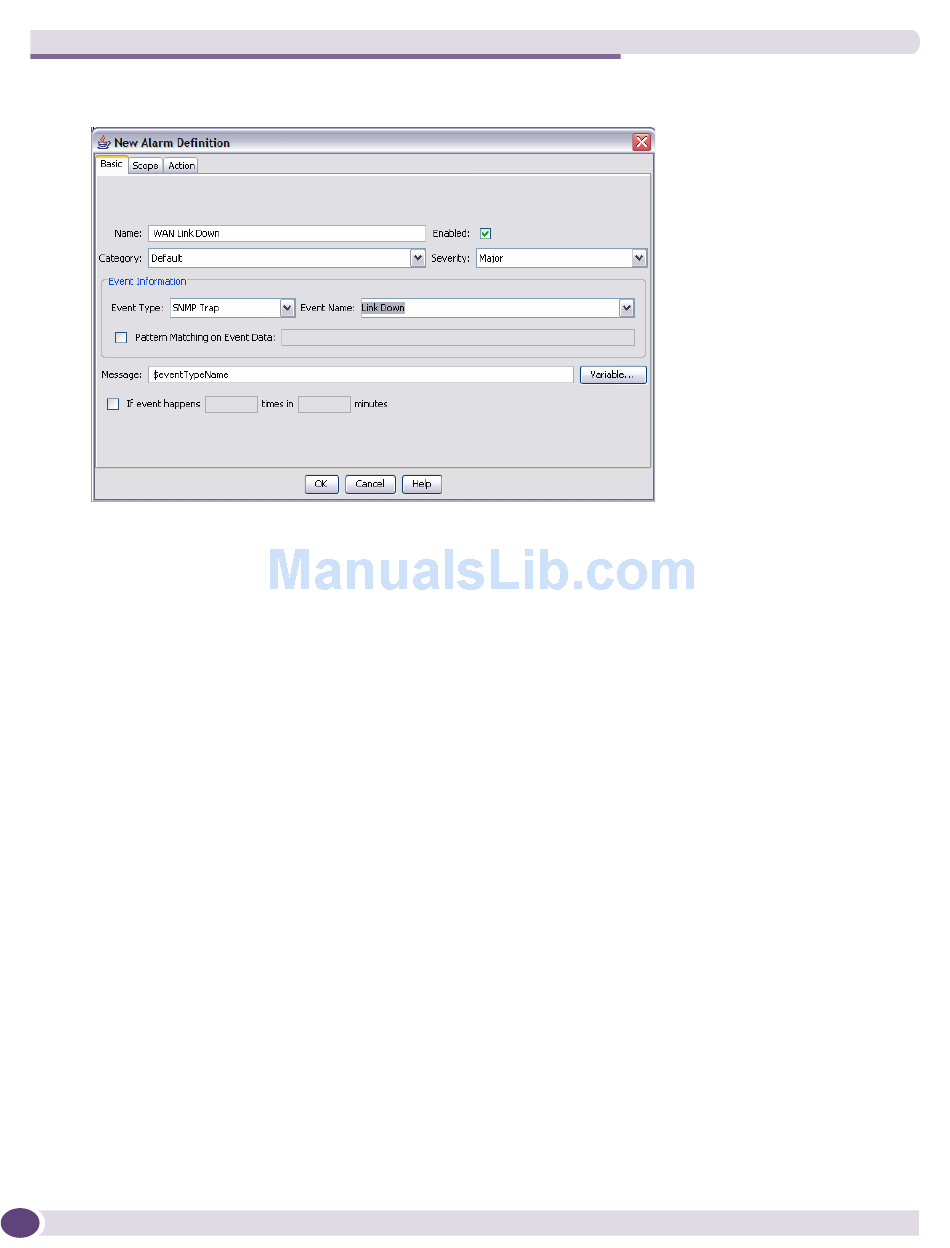

Figure 19: The Basic tab of the New Alarm Definition window
a Type a name for the alarm (for example, WAN Link Down) in the Name field.
b Make sure the Enabled checkbox is checked.
c Select a severity level in the Severity field
d Select a category (e.g. "Default") in the Category field.
e Select "SNMP Trap" in the Event Type field.
f Select "Link Down" in the Event Name field.
The information in the Basic tab should look as shown in
2 Click the Scope tab, and do the following:
a Make sure the All devices and ports checkbox is not checked.
b Select "Port" in the Source Type field.
c Select the device from the Device list.
d Select the port from the ifIndex list.
e Click the Add button to add the device and port to the Selection list.
The information in the Scope tab should look similar to what is shown in
52
Figure 19.
Figure 20.
