EUROCOM Notebook V09.2.00 User Manual page 56

Storage Devices, Mouse, Audio & Printer
2

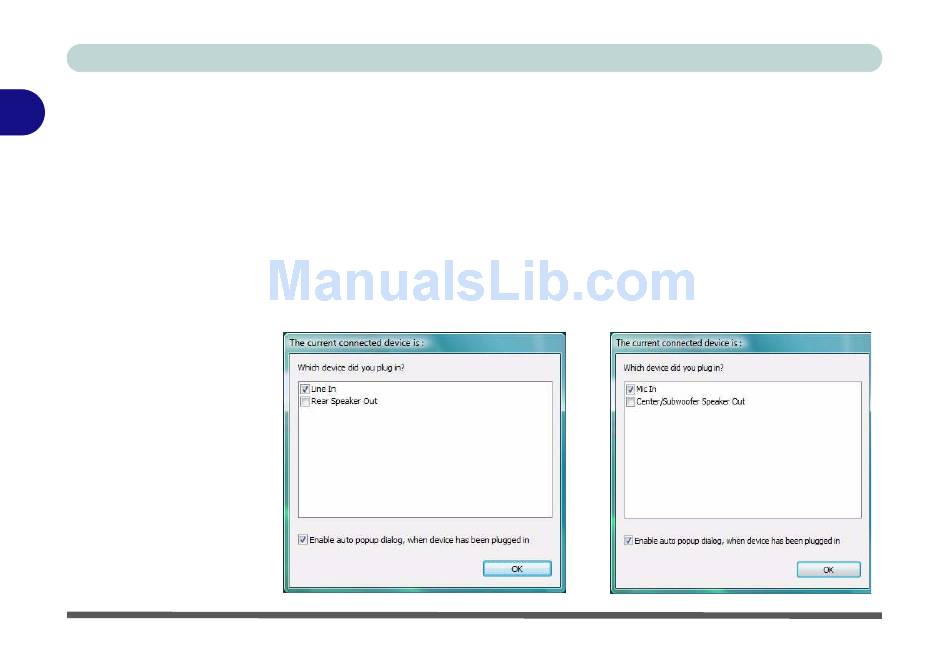

Figure 2 - 12
Connected Device
Auto Popup
2 - 14 Audio Features
5. Plug the front speaker cables into the Headphone-Out Jack.
6. Plug in the other cables (you may require an adapter to connect each cable to the
appropriate jack e.g a stereo mini to dual RCA adapter) from your speakers as
follows:
• Line-In Jack = Rear Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
7. As you plug in each cable a dialog box will pop up (see
page 2 - 13).
8. Click to put a tick in the appropriate box according to the speaker plugged-in (e.g.
Rear Speaker Out), and then click OK to save the setting.
9. Click OK to exit Realtek HD Audio Manager.
"Auto Popup Dialog" on
