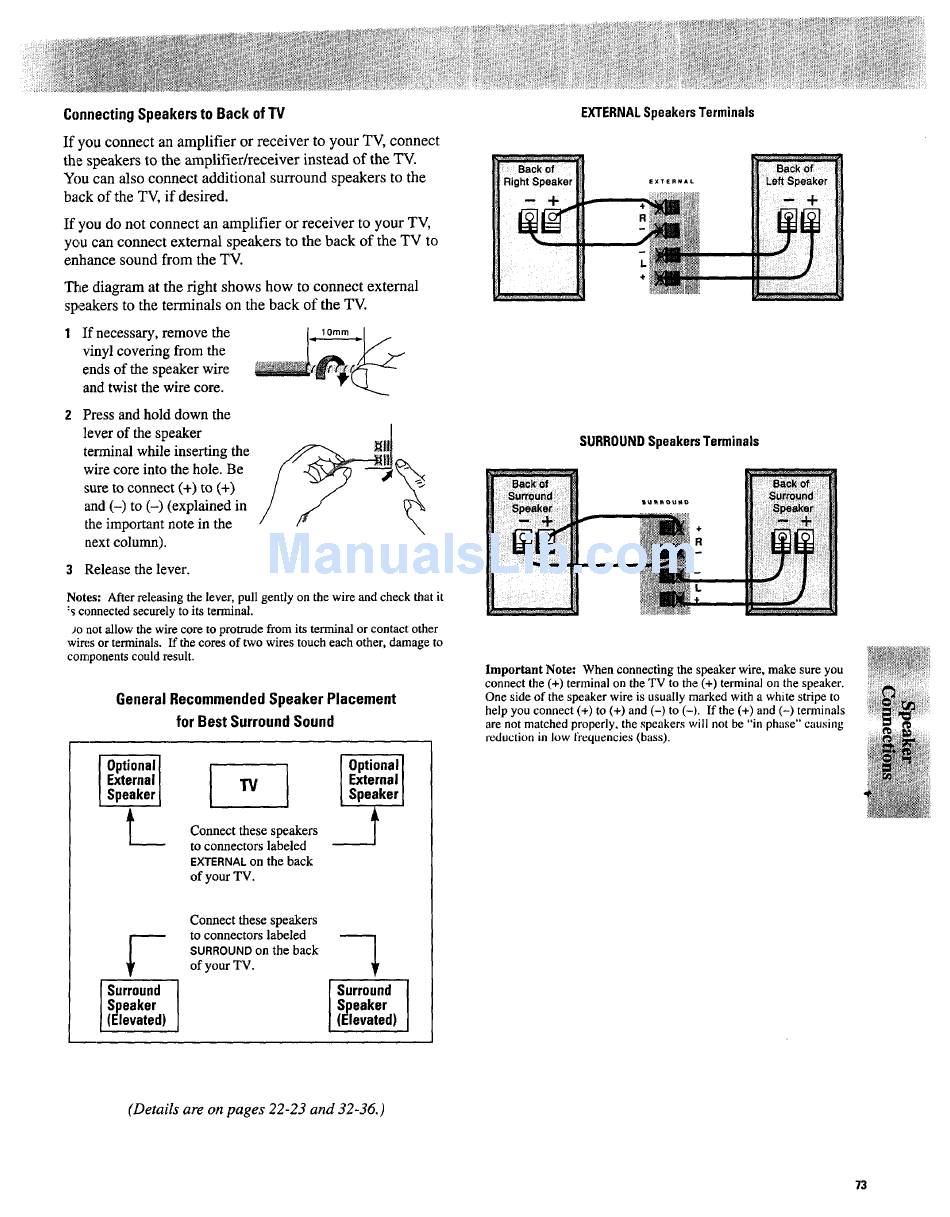

ConnectingSpeakers to Back ofTV
If you connect an amplifier or receiver to your TV, connect
the speakers to the amplifier/receiver instead of the TV.
You can also connect additional surround speakers to the
back of the TV, if desired.
If you do not connect an amplifier or receiver to your TV,
you can connect external speakers to the back of the TV to
enhance sound from the TV.
The diagram at the right shows how to connect external
speakers to the terminals on the back of the TV.
If necessary, remove the
vinyl covering from the
ends of the speaker wire
and twist the wire core.
Press and hold down the
lever of the speaker
terminal while inserting the
wire core into the hole. Be
sure to connect (+) to (+)
and (-) to (-) (explained in
the important note in the
next column).
3 Release the lever.
Notes: After releasing the lever, pull gently on the wire and check that it
:s connected securely to its terminal.
)o :not allow the wire core to protrude from its terminal or contact other
wires or terminals. If the cores of two wires touch each other, damage to
components could result.
General RecommendedSpeaker Placement
for Best SurroundSound
Optional ]
External I
Speaker I
t_
Optional [
I I ExternalI
TV [ Speaker J
_I
Connect these speakers
to connectors labeled
EXTERNALon the back
of your TV.
Connect these speakers
to connectors labeled
_-- SURROUND on the back
of your TV.
Is r ,ou ] IS r r°' ]
Speaker Speaker
(Elevated) (Elevated)
EXTERNAL SpeakersTerminals
SURROUND SpeakersTerminals
Important Note: When connecting the speaker wire, make sure you
connect the (+) terminal on the TV to the (+) terminal on the speaker.
One side of the speaker wire is usually marked with a white stripe to
help you connect (+) to (+) and (-) to (-). If the (+) and (-) terminals
are not matched properly, the speakers will not be "in phase" causing
,'eduction in low frequencies (bass).
::5!(y_ :
!i !i:_ i:
ii _i i iii_iii_i!ii_;il iiiiiii
(Details are on pages 22-23 and 32-36.)
