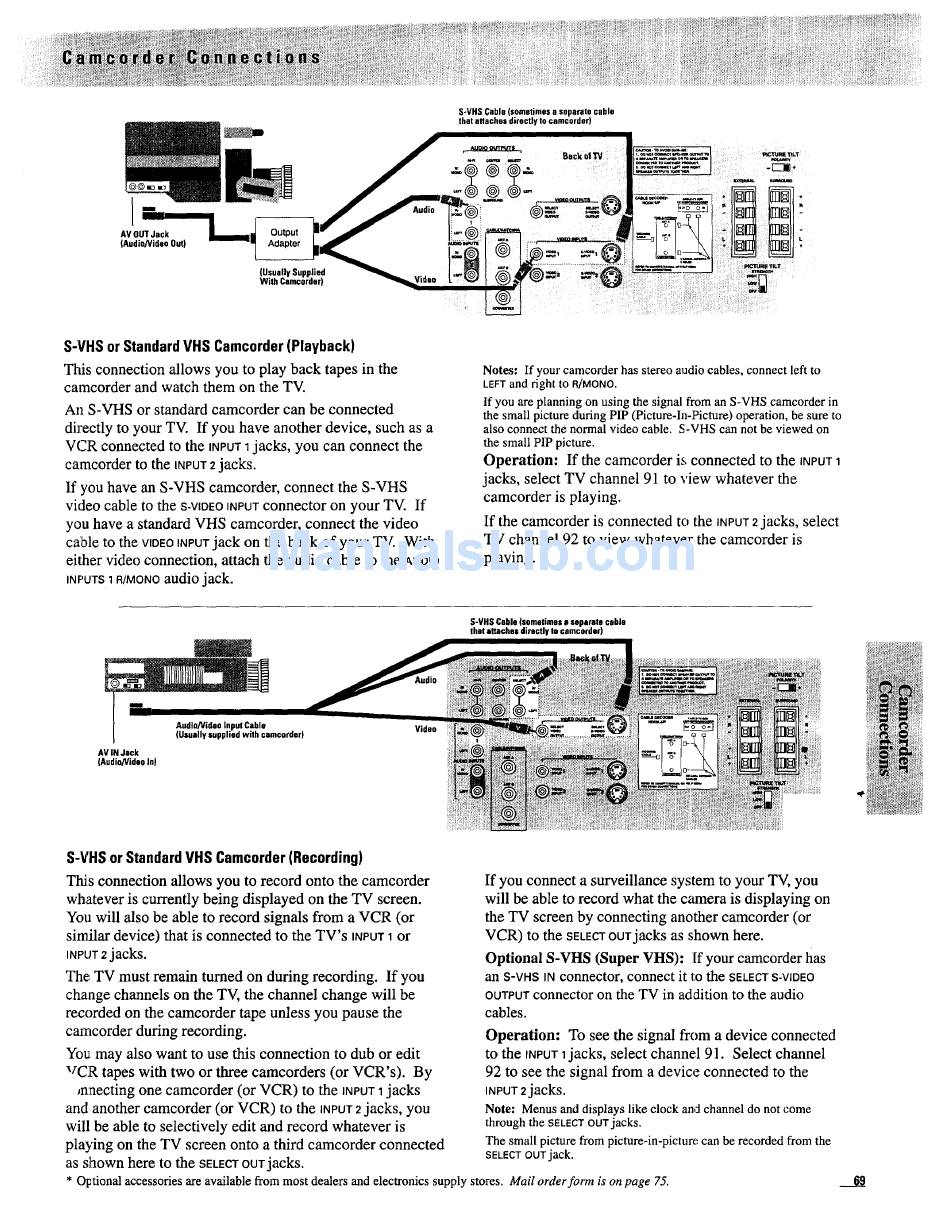

ProScan PS35682 Owner's Manual page 73

AVIO0_ --
(Audio/Video Out)
(Usually Supplied
With Camcorder) lidao
S-VHS Cable (sometimes a separate cable
that attaches directly to camcorder)
-[--'l÷
_ m
;_'TURe1LT
S-VHS or StandardVHS Camcorder(Playback)
This connection allows you to play back tapes in the
camcorder and watch them on the TV.
An S-VHS or standard camcorder can be connected
dh:ectly to your TV. If you have another device, such as a
VCR connected to the iNPUT 1jacks, you can connect the
camcorder to the INPUT 2 jacks.
If you have an S-VHS camcorder, connect the S-VHS
video cable to the S-VIDEO _NPOT c onnector on your TV. If
you have a standard VHS camcorder, connect the video
cable to the VIDEO I NPUT jack on the back of your TV. With
either video connection, attach the audio cable to the AUD(O
INPUTS 1 R/MONO
audio jack.
Notes: If your camcorder has stereo audio cables, connect left to
LEFTand right to R/MONO.
If you are planning on using the signal from an S-VHS camcorder in
the small picture during PIP (Picture-In-Picture) operation, be sure to
also connect the normal video cable. S-VHS can not be viewed on
the small PIP picture.
Operation: If the camcorder is connected to the INPUT 1
jacks, select TV channel 91 to view whatever the
camcorder is playing.
If the camcorder is connected to the iNPUT 2jacks, select
TV channel 92 to view whatever the camcorder is
playing.
I (Usually supplied with comcorder)
AV IN Jack
{Audio/Video In)
Video
S-VHS Cable (sometimes a separate cable
that attaches directly to camcorder)
S-VHSor StandardVHS Camcorder(Recording)
This connection allows you to record onto the camcorder
whatever is currently being displayed on the TV screen.
You will also be able to record signals from a VCR (or
similar device) that is connected to the TV's iNPUT 1or
INPUT 2
jacks.
The TV must remain turned on during recording. If you
change channels on the TV, the channel change will be
recorded on the camcorder tape unless you pause the
camcorder during recording.
You may also want to use this connection to dub or edit
x1CR tapes with two or three camcorders (or VCR's). By
Jnnecting one camcorder (or VCR) to the INPUT 1jacks
and another camcorder (or VCR) to the iNPUT 2 jacks, you
will be able to selectively edit and record whatever is
playing on the TV screen onto a third camcorder connected
as shown here to the SELECT OUTjacks.
If you connect a surveillance system to your TV, you
will be able to record what the camera is displaying on
the TV screen by connecting another camcorder (or
VCR) to the SELECT O UT jacks as shown here.
Optional S-VHS (Super ¥I-IS): If your camcorder has
an S-VHS INconnector, connect it to the
SELECT S-VIDEO
OUTPUT connector on the TV in addition to the audio
cables.
Operation: To see the signal from a device connected
to the INPUT l jacks, select channel 91. Select channel
92 to see the signal from a device connected to the
INPUT 2jacks.
Note: Menus and displays like clock an,:]channel do not come
through the SELECT OUTjacks.
The small picture from picture-in-picture can be recorded from the
SELECT OUT
jack.
* Optional accessories are available from most dealers and electronics supply stores. Mail order form is on page 75.
