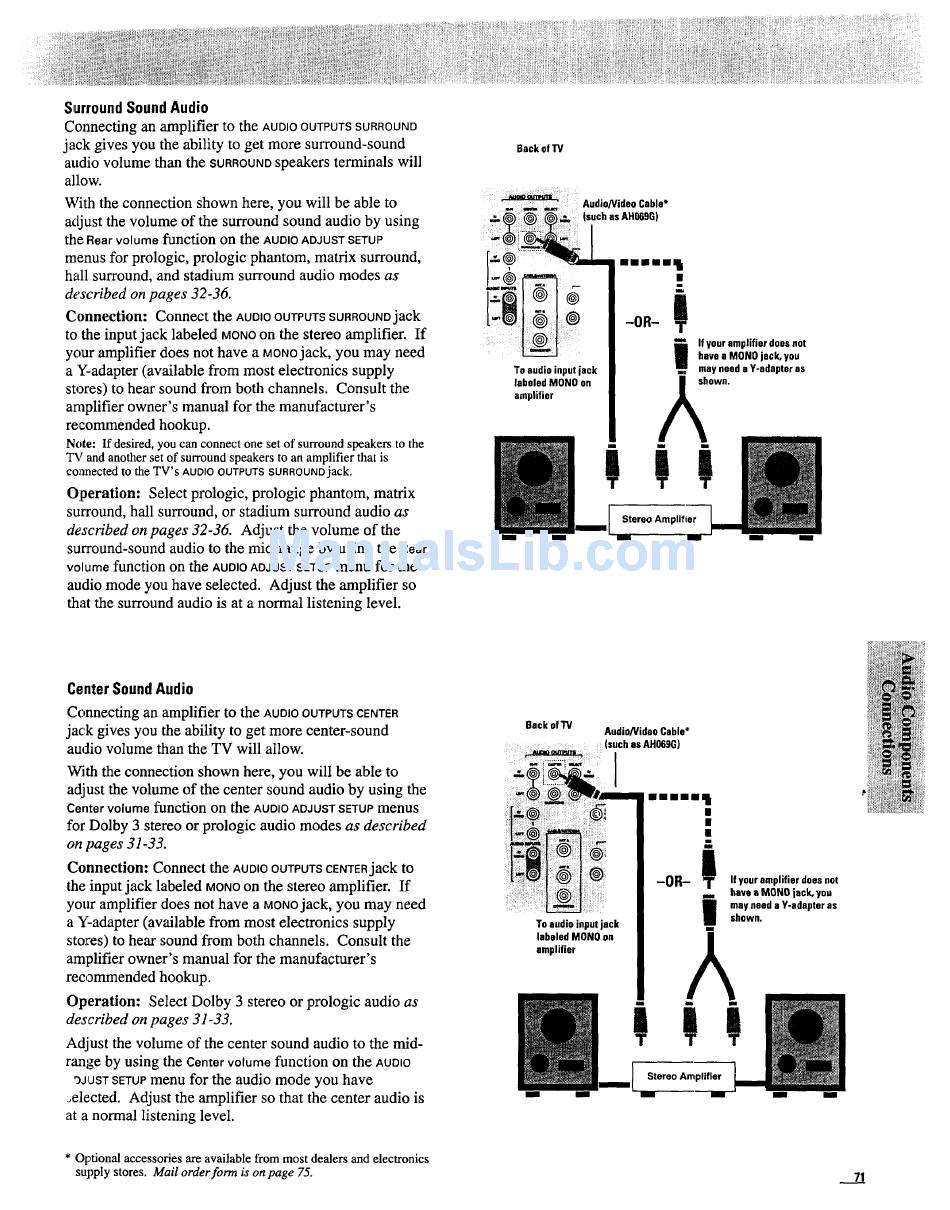

Surround SoundAudio
Connecting an amplifier
to the AUDIO OUTPUTS SURROUND
jack gives you the ability to get more surround-sound
audio volume than the SURROUND s peakers terminals will
allow.
With the connection shown here, you will be able to
adjust the volume of the surround sound audio by using
the Rear volume
function on the
AUDIO ADJUST SETUP
menus for prologic, prologic phantom, matrix surround,
hall surround, and stadium surround audio modes as
described on pages 32-36.
Connection: Connect the AUDIO OUTPUTS S URROUND jack
to the input jack labeled MONO on the stereo amplifier. If
your amplifier does not have a MONOjack, yOUmay need
a Y-adapter (available from most electronics supply
stores) to hear sound from both channels. Consult the
amplifier owner's manual for the manufacturer's
recommended hookup.
Note: If desired, you can connect one set of surround speakers to the
TV and another set of surround speakers to an amplifier that is
co;anected to the TV's AUDIO OUTPUTSSURROUND jack.
Operation: Select prologic, prologic phantom, matrix
surround, hall surround, or stadium surround audio as
described on pages 32-36. Adjust the volume of the
surround-sound audio to the mid-range by using the Rear
volume
function on the AUDIO ADJUST SETUPmenu for the
audio mode you have selected. Adjust the amplifier so
that the surround audio is at a normal listening level.
Back of TV
Audio/Video Cable*
--i
,sac, as....ol
-OR-
To eudia input jack
labeled MONO on
amplifier
lf your amplifier does not
have a MON0 jack, you
ed a Y-adapter as
all
Stereo Amplifier
"mlr'_ll
CenterSoundAudio
Connecting an amplifier to the AUDIO OUTPUTS CENTER
jack gives you the ability to get more center-sound
audio volume than the TV will allow.
With the connection shown here, you will be able to
adjust the volume of the center sound audio by using the
Center volume
function on the
AUDIO ADJUST SETUP menus
for Dolby 3 stereo or prologic audio modes as described
on pages 31-33.
Connection:
Connect the AUDIO
OUTPUTS
CENTER jack to
the input jack labeled MONO on the stereo amplifier. If
your amplifier does not have a MONOjack, yOU may need
a YLadapter (available from most electronics supply
sto_:es) to hear sound from both channels. Consult the
amplifier owner's manual for the manufacturer's
recommended hookup.
Operation: Select Dolby 3 stereo or prologic audio as
described on pages 31-33.
Adjust the volume of the center sound audio to the mid-
range by using the
Center volume
function on the AUDIO
_JUSTSETUP menu for the audio mode you have
,elected. Adjust the amplifier so that the center audio is
at a normal listening level.
Back of W
Audio/Video Cable*
....... (such as AH069G)
.....,..
|
I •
_o,_ ,,,..r..,,,,,..,
T
Stereo Amplifier
mm mm "_ roll mm mm
* Optional accessories are available from most dealers and electronics
supply stores. Mail order form is on page 75. 71
