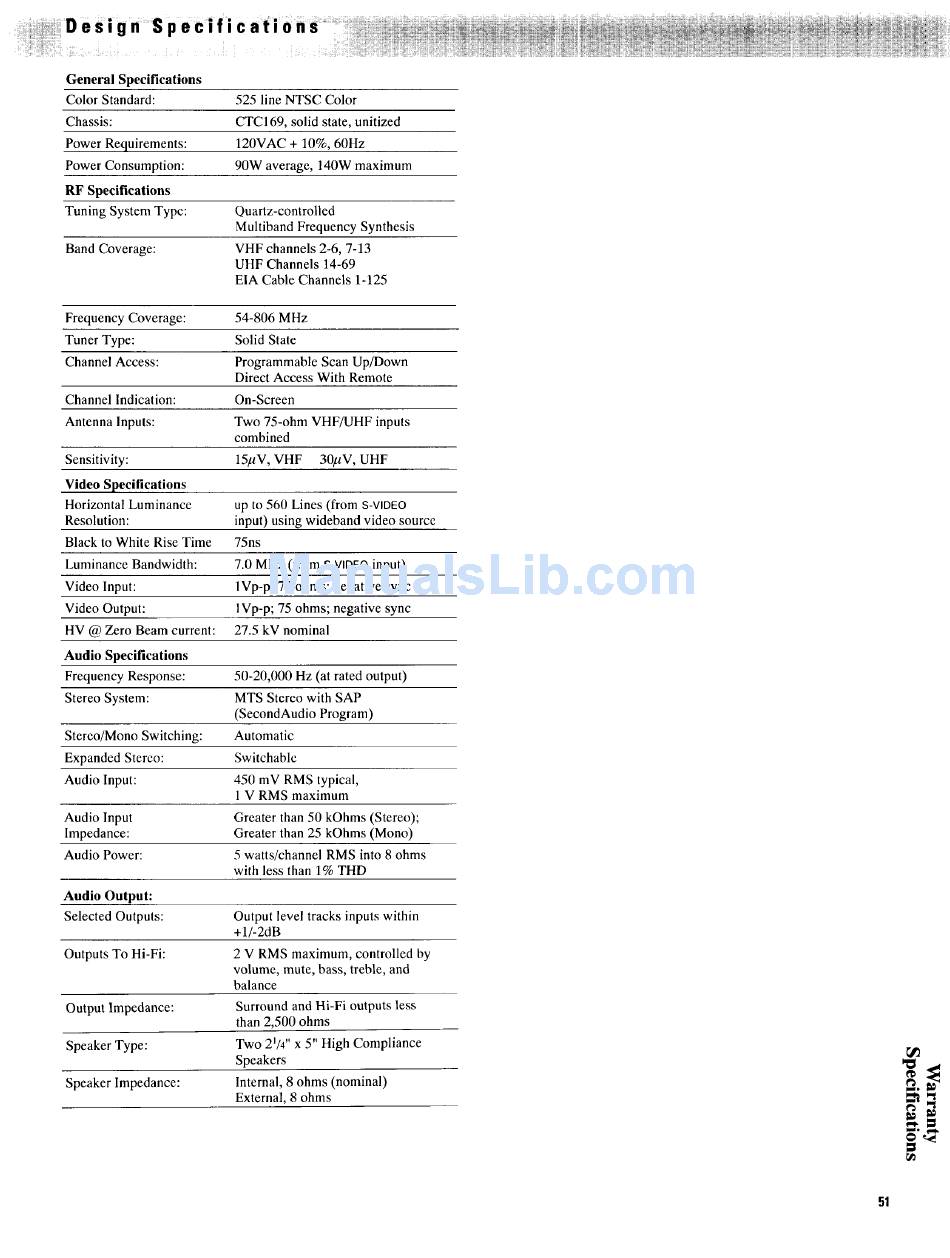

Destg ....Specif,cations
General Specifications
Color Standard: 525 line NTSC Color
Chassis: CTC169, solid state, unitized
Power Requirements: 120VAC + 10%, 60Hz
Power Consumption: 90W average, 140W maximum
RF Specifications
Tuning System Type: Quartz-controlled
Multiband Frequency Synthesis
Band Coverage: VHF channels 2-6, 7-13
UHF Channels 14-69
EIA Cable Channels 1-125
Frequency Coverage: 54-806 MHz
Tuner Type: Solid State
Channel Access: Programmable Scan Up/Down
Direct Access With Remote
Channel Indication: On-Screen
Antenna Inputs: Two 75-ohm VHF/UHF inputs
combined
Sensitivity: 15,uV, VHF 30,uV, UHF
Video Specifications
Horizontal Luminance up to 560 Lines (from S-VIDEO
Resolution: input) using wideband video source
Black to White Rise Time 75ns
Luminance Bandwidth: 7.0 MHz (from S-VIDEO input)
Video Input: 1Vp-p; 75 ohms; negative sync
Video Output: 1Vp-p; 75 ohms; negative sync
HV @ Zero Beam current: 27.5 kV nominal
Audio Specifications
Frequency Response: 50-20,000 Hz (at rated output)
Stereo System: MTS Stereo with SAP
(SecondAudio Program)
Stereo/Mono Switching: Automatic
Expanded Stereo: Switchable
Audio Input: 450 mV RMS typical,
1 V RMS maximum
Audio Input Greater than 50 kOhms (Stereo);
Impedance: Greater than 25 kOhms (Mono)
Audio Power: 5 watts/channel RMS into 8 ohms
with less than 1% THD
Audio Output:
Selected Outputs: Output level tracks inputs within
+l/-2dB
Outputs To Hi-Fi: 2 V RMS maximum, controlled by
volume, mute, bass, treble, and
balance
Output Impedance: Surround and Hi-Fi outputs less
than 2,500 ohms
Speaker Type: Two 21/4" x 5" High Compliance
Speakers
Speaker Impedance: Internal, 8 ohms (nominal)
External, 8 ohms
g.
51
