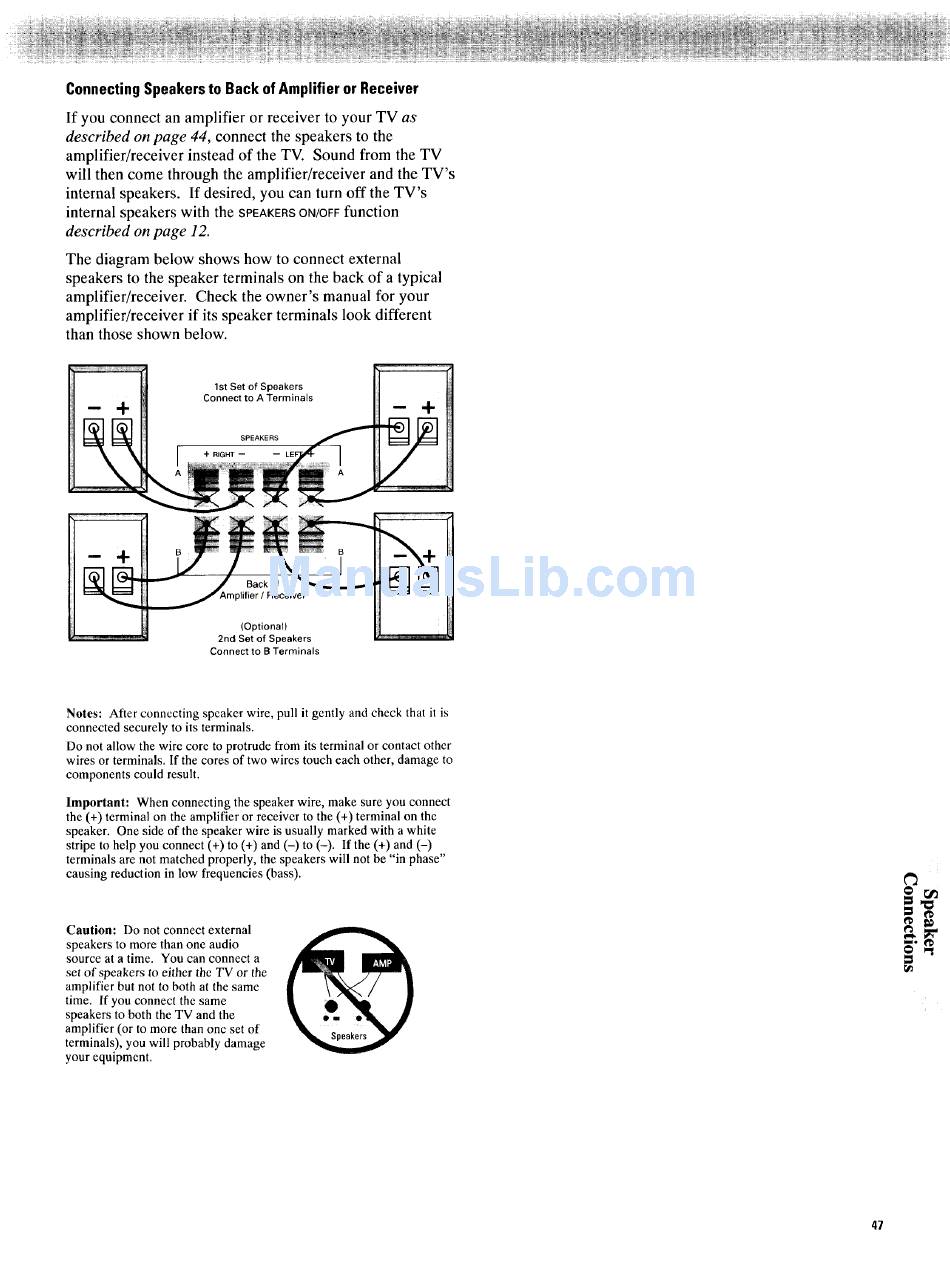

ConnectingSpeakers to Back of Amplifier or Receiver
If you connect an amplifier or receiver to your TV as
described on page 44, connect the speakers to the
amplifier/receiver
instead of the TV. Sound from the TV
will then come through the amplifier/receiver
and the TV's
internal speakers.
If desired, you can turn off the TV's
internal speakers with the SPEAKERS
ON/OFF f unction
described on page 12.
The diagram below shows how to connect external
speakers to the speaker terminals on the back of a typical
amplifier/receiver.
Check the owner's manual for your
amplifier/receiver
if its speaker terminals look different
than those shown below.
1st Set of Speakers
Connect
to A Terminals
Back of
)lifier / Receiver
(Optional)
2nd Set of Speakers
Connect
to B Terminals
Notes:
After connecting
speaker wire, pull it gently and check that it is
connected
securely to its terminals.
Do not allow the wire core to protrude from its terminal or contact other
wires or terminals.
If the cores of two wires touch each other, damage to
components
could result.
Important:
When connecting
the speaker wire, make sure you connect
the (+) terminal
on the amplifier or receiver
to the (+) terminal on the
speaker.
One side of the speaker wire is usually marked with a white
stripe to help you connect (+) to (+) and (-) to (-). If the (+) and (-)
terminals
are not matched properly,
the speakers will not be "in phase"
causing
reduction
in low frequencies
(bass).
Caution:
Do not connect external
speakers
to more than one audio
source at a time. You can connect a
set of speakers
to either the TV or the
amplifier but not to both at the same
time. If you connect the same
speakers to both the TV and the
amplifier (or to more than onc set of
terminals),
you will probably
damage
your equipment.
47
