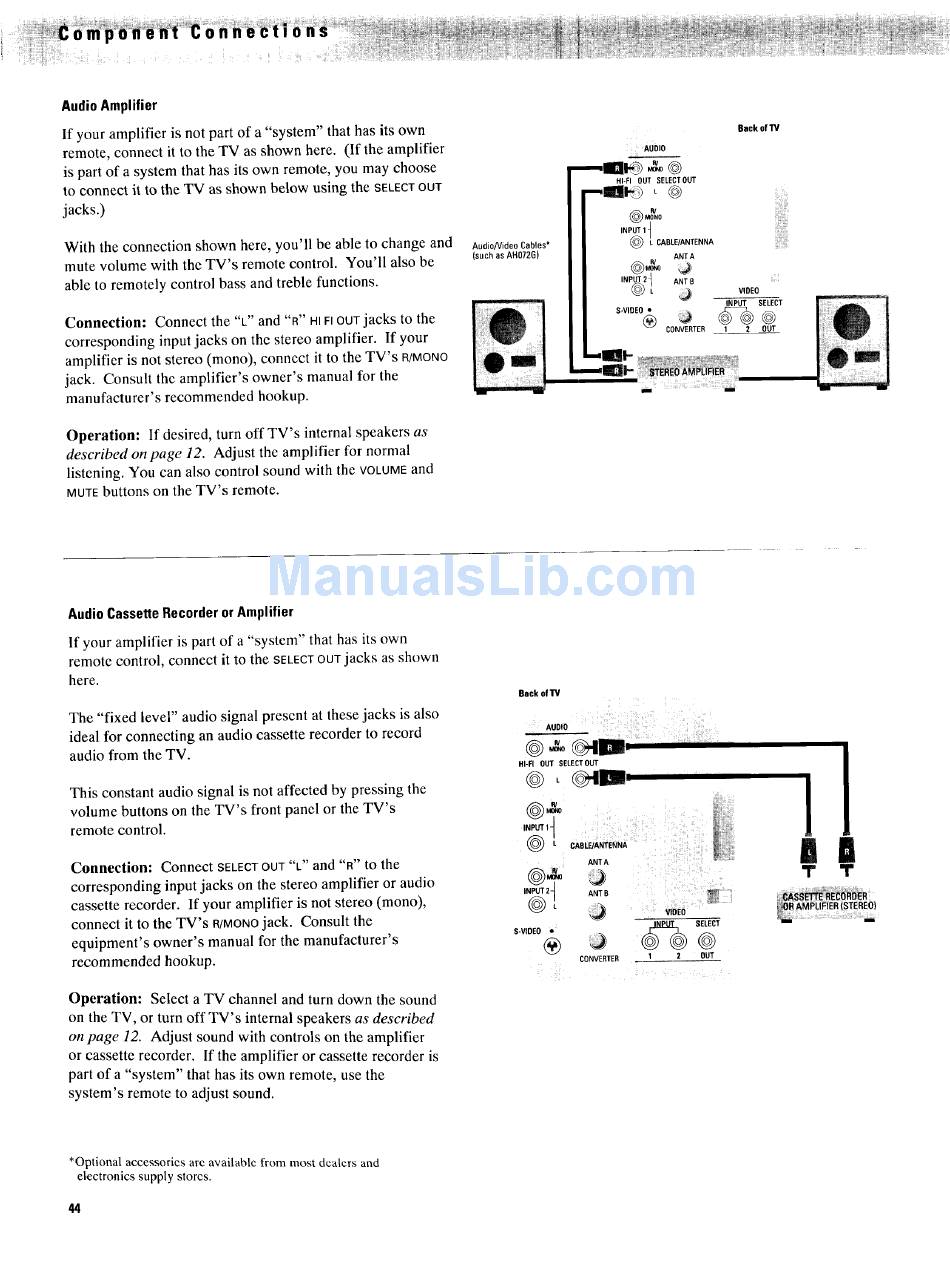

Audio Amplifier
If your amplifier
is not part of a "system"
that has its own
remote, connect
it to the TV as shown here.
(If the amplifier
is part of a system that has its own remote, you may choose
to connect it to the TV as shown below using the SELECTOUT
jacks.)
With the connection
shown here, you'll be able to change and
mute volume with the TV's
remote control.
You'll
also be
able to remotely
control bass and treble functions.
Connection:
Connect the "L" and "R" HIFf OUTjacks to the
corresponding
input jacks on the stereo amplifier.
If your
amplifier
is not stereo (mono),
connect
it to the TV's R/MONO
jack.
Consult
the amplifier's
owner's
manual
for the
manufacturer's
recommended
hookup.
Operation:
If desired,
turn off TV's
internal
speakers
as
described
on page
12. Adjust the amplifier for normal
listening.
You can also control sound with the
VOLUME
and
MUTEbuttons
on the TV's remote.
Audio/Video Cables*
(such as AH0726)
,
Aumo
HI-FI
OUT SELECTOUT
--,_!_
L @
INPUT 1 t
L CABLE/ANTENNA
ANTA
0_
_
INPUT 2
@!
,,NT_
S-VIOEO •
CONVERTER
Back of "13/
VIDEO
_
SELECT
@
1
_
OUT
iiiiiii+i?
iiiii!++iiill
-.--,131--
Audio Cassette Recorder or Amplifier
If your amplifier is part of a "system" that has its own
remote control, connect it to the SELECT O UT jacks as shown
here.
The "fixed level" audio signal present
at these jacks is also
ideal for connecting
an audio cassette
recorder
to record
audio from the TV.
This constant
audio signal is not affected by pressing
the
volume
buttons
on the TV's front panel or the TV's
remote control.
Connection:
Connect SELECT OUT"L" and "R" to the
corresponding input jacks on the stereo amplifier or audio
cassette recorder. If your amplifier is not stereo (mono),
connect it to the TV's R/MONO jack. Consult the
equipment's owner's manual for the manufacturer's
recommended hookup.
Operation:
Select a TV channel and turn down the sound
on the TV, or turn off TV's internal
speakers
as described
on page 12. Adjust
sound with controls on the amplifier
or cassette
recorder.
If the amplifier or cassette recorder
is
part of a "system"
that has its own remote, use the
system's
remote to adjust sound.
Back of 113/
AUOtO
HI-FI OUT SELECTOUT
INPUT li
(_)
t
CABLE/ANTENNA
ANT A
@=
ANT B
@L
j
g-VIDEO
•
O(]NV[RTER
VIDEO
SELECT
1
2
PUT
I
Ag
T
T
*Optional
accessories
are available from most dealers and
electronics
supply stores.
