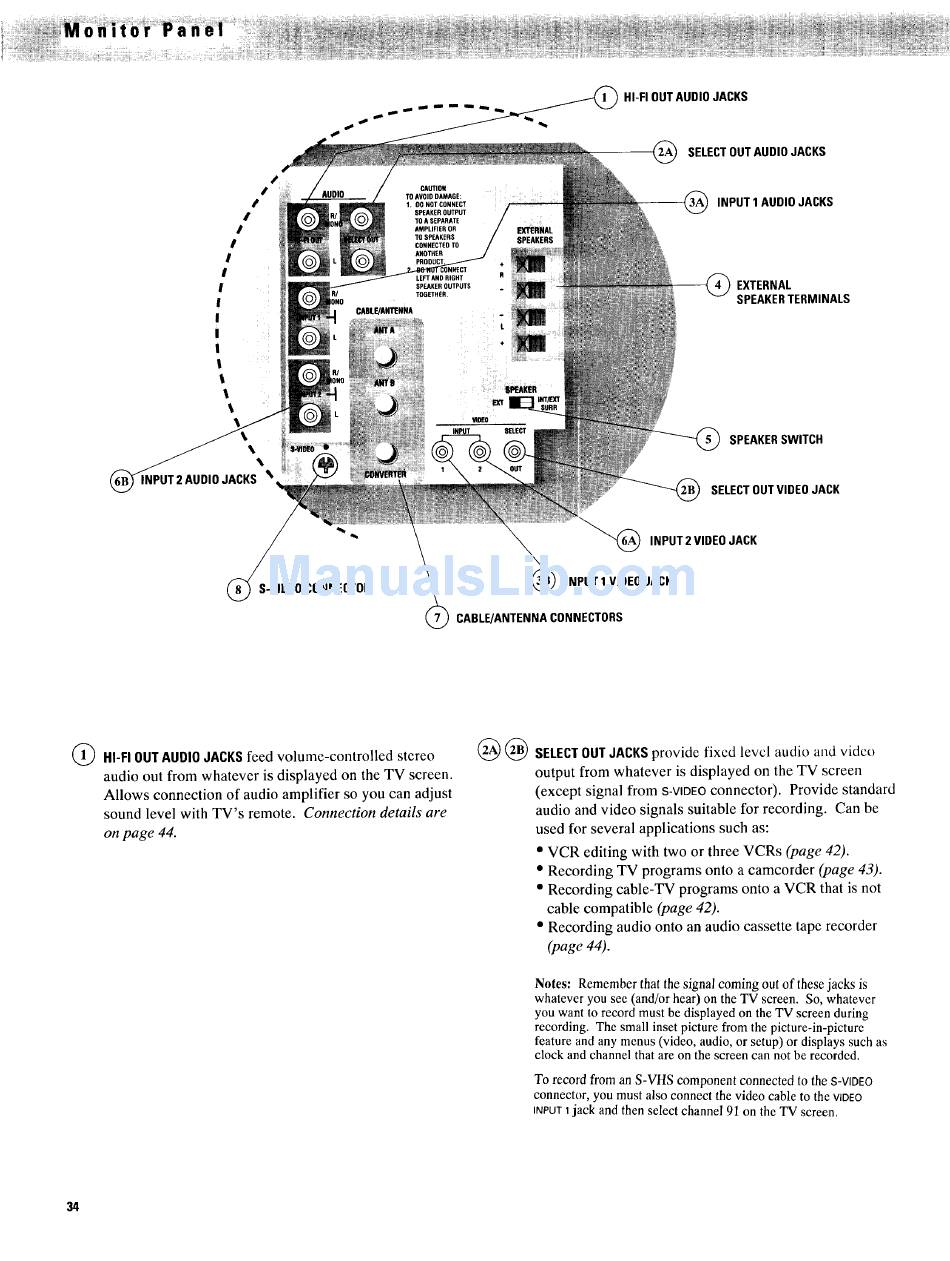

IDIOJACKS %
AUDIO
CAUTIO#
TO AVOID DAMAGE:
1. O0 NOT CONNECT
SPEAKER OUTPUT
"TO A SEPARATE
LEFT AND RIGHT
SPEAKER OUTPUTS
TOGETHER.
CABL_ANTENNA
SPEAKERS
SELECT OUTAUDIO JACKS
INPUT 1 AUDIOJACKS
EXTERNAL
SPEAKERTERMINALS
SPEAKERSWITCH
SELECTOUTVIDEOJACK
(_ S-VIDE0 CONNECTOR
INPUT 2 VIDEOJACK
(_ INPUT 1 VIDEO JACK
CABLE/ANTENNACONNECTORS
(_) HI-FIOUT AUDIO JACKS feed volume-controlled stereo
audio out from whatever is displayed on the TV screen.
Allows connection of audio amplifier so you can adjust
sound level with TV's remote. Connection details are
on page 44.
@®
SELECT OUT JACKS provide fixed levcl audio and vidco
output from whatever is displayed on the TV screen
(except signal from S-VIDEO connector). Provide standard
audio and video signals suitable for recording. Can be
used for several applications such as:
• VCR editing with two or three VCRs (page 42).
• Recording TV programs onto a camcorder (page 43).
• Recording cable-TV programs onto a VCR that is not
cable compatible (page 42).
• Recording audio onto an audio cassette tape recorder
(page 44).
Notes: Remember that the signal coming out of these jacks is
whatever you see (and/or hear) on the TV screen. So, whatever
you want to record must be displayed on the TV screen during
recording. The small inset picture from the picture-in-picture
feature and any menus (video, audio, or setup) or displays such as
clock and channel that are on the screen can not be recorded.
To record from an S-VHS component connected to the S-VIDEO
connector, you must also connect the video cable to the VIDEO
iNPUT 1jack and then select channel 91 on the TV screen.
