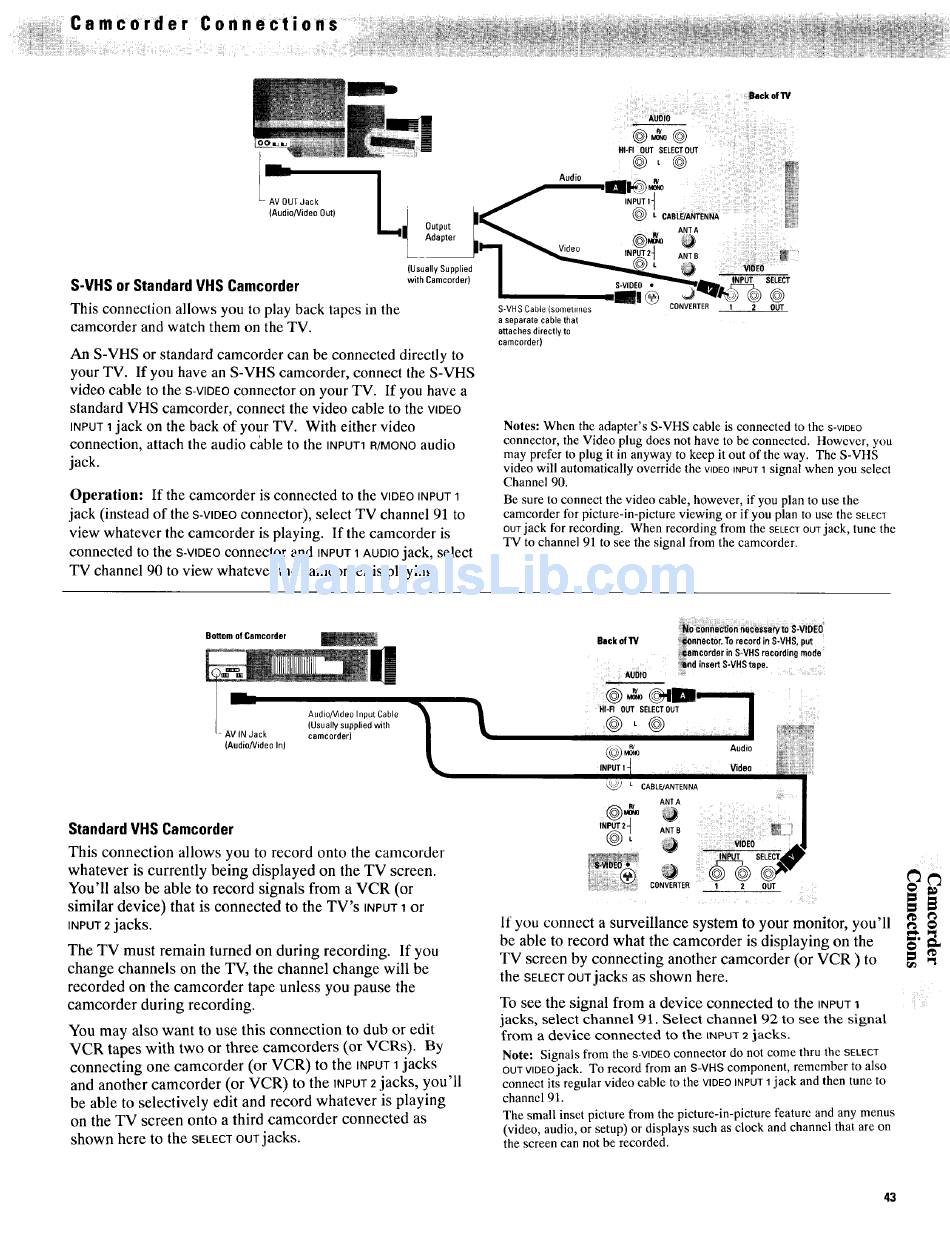

.... Camcorder Connections
]ackofW
:/i:i!ii;J_i:_m ¸ ¸_¸¸_¸¸_¸¸ _!_ 2!!i_! i!!:::i ;i_ii!ii:iiii::il _
vJ'_ _iiiivi!:i_:iiiiiii_iiiiiii! _iiii_i __iiii_ _ ii
_-Ff OUT SELECTOUT ......
® ' ®
a Aud o _ _;;
I / -_
(Audio/Video Out) I J i_" @. c..t_._.,_
I . d Output [- "_. ANTA
_ Adapter L., "_.. _ _
Video _'_'_'_'_'_J
L P'I _ ,.%H ,.,.
(Usually S upplied
I _ _ .....
with Camcorder)
I
S-VIDEO ,-_"'_,llllllw. NPr_q SELECT
S-VHS or Standard VHS Camcorder / -U! _ CO_TE_"_ ?
This connection allows you to play back tapes in the
S-VHS Cable (so,netm, es
camcorder and watch them on the TV.
An S-VHS or standard camcorder can be connected directly to
your TV. If you have an S-VHS camcorder, connect the S-VHS
video cable to the S-VIDEO connector on your TV. If you have a
standard VHS camcorder, connect the video cable to the VaDEO
INPUT 1jack on the back of your TV. With either video
connection, attach the audio cable to the INPUT1 R/MONO audio
jack.
Operation:
If the camcorder is connected to the VIDEO INPUT 1
jack (instead of the S-VIDEO c onnector), select TV channel 91 to
view whatever the camcorder is playing. If the camcorder is
connected to the S-VIDEO connector and _NPUT 1AUDIO jack, select
TV channel 90 to view whatever the camcorder is playing.
a separate cable that
attaches directly to
camcorder)
Notes: When the adapter's S-VHS cable is connected to the S-VIDEO
connector, the Video plug does not have to be connected. However, you
may prefer to plug it in anyway to keep it out of the way. The S-VHS
video will automatically override the VIDED tNPOr 1 signal when you select
Channel 90.
Be sure to connect the video cable, however, if you plan to use the
camcorder for picture-in-picture viewing or if you plan to use the SELECT
OUTjack for recording. When recording from the SELECT O UT jack, tune the
TV to channel 91 to see the signal from the camcorder.
Bottom of Camcorder
AV IN Jack
(Audio/Video In)
Audio/Video Input Cable '_
(UsuaRy supplied with L |
camcorder)
IL
Back of11/ _nnectOr. To record in S-VHS put
_amcorder in S-VHS recording mode:
_nd insert S-VHS tape.
AUOiO
Rf
- llm I' .,-., oo. ::
®L ® I
StandardVHS Camcorder
This connection allows you to record onto the camcorder
whatever is currently being displayed on the TV screen.
You'll also be able to record signals from a VCR (or
similar device) that is connected to the TV's INPUT 1 or
INPUT 2
jacks.
The TV must remain turned on during recording. If you
change channels on the TV, the channel change will be
recorded on the camcorder tape unless you pause the
camcorder during recording.
You may also want to use this connection to dub or edit
VCR tapes with two or three camcorders (or VCRs). By
connecting one camcorder (or VCR) to the INPUT 1jacks
and another camcorder (or VCR) to the INPUT 2jacks, you'll
be able to selectively edit and record whatever is playing
on the TV screen onto a third camcorder connected as
shown here to the SELECT OUT jacks.
If you connect a surveillance system to your monitor, you'll
be able to record what the camcorder is displaying on the
TV screen by connecting another camcorder (or VCR ) to
the SELECT OUT jacks as shown here.
To see the signal from a device connected to the INPUT 1
jacks, select channel 91. Select channel 92 to see the signal
from a device connected to the INPUT 2 jacks.
Note: Signals from the S-VIDEO connector do not come thru the SELECT
OUTVIDEO jack. To record from an S-VHS component, remember to also
connect its regular video cable to the VIDEO INPUT1 jack and then tune to
channel 91.
The small inset picture from the picture-in-picture feature and any menus
(video, audio, or setup) or displays such as clock and channel that are on
the screen can not be recorded.
@
43
