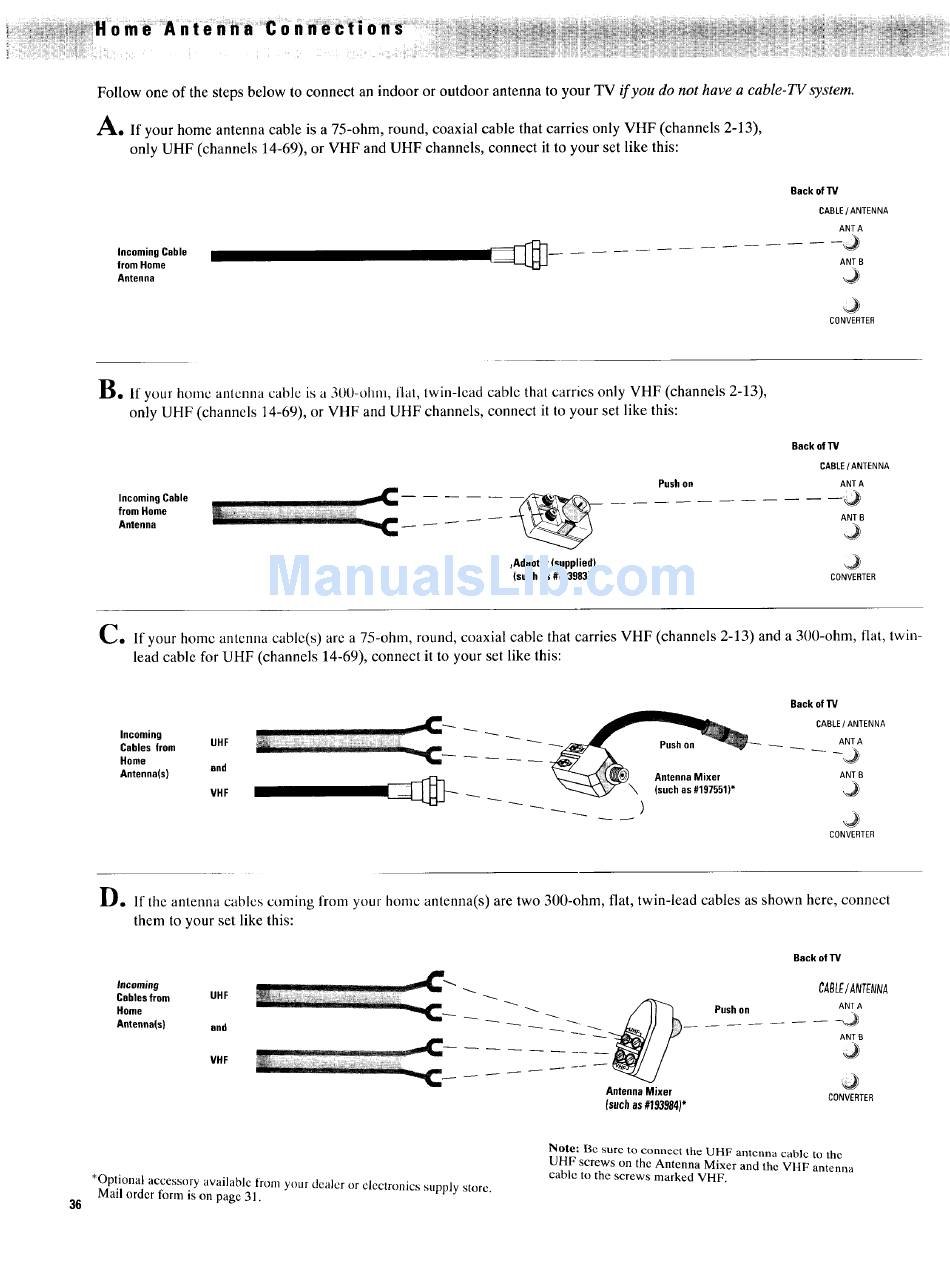

Follow one of the steps below to connect an indoor or outdoor antenna to your TV if you do not have a cable-TVsystem.
A. if your home antenna cable is a 75-ohm, round, coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Back ofTV
CABLE/ ANTENNA
ANTA
Incoming Cable _-- -- --
from Home ANT B
Antenna
CONVERTER
B,
If your home antenna cable is a 300-ohnl, flat, twin-lead cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Back of TV
CABLE / ANTENNA
Push on ANT A
from Incoming HomeCable ,,_ _ _ --_
!lu/.................. _:: ........ Jm
ANT B
Antenna ........... _ ....
_Adapter (supplied)
(such as #193983)* CONVERTER
Co if your home antenna cable(s) are a 75-ohm, round, coaxial cable that carries VHF (channels 2-13) and a 300-ohm, flat, twin-
lead cable for UHF (channels 14-69), connect it to your set like this:
Incoming
Cables from UHF
Home
and
Antenna(s)
VHF
Back ofTV
_;_ _o._1_ _ _ _ _CABLE/ ANTENNA
ANT B
_ _ _ _ (suchas#197551)*
CONVERTER
Do if the antenna cables coming t'rom your home antenna(s) are two 300-ohm, flat, twin-lead cables as shown here, connect
them to your set like this:
Back of TV
Incoming -_ _. CA_LK /ANTKNNA
Antennals)CableSH°me from UHandF ......... _-- __ _'_ "_'_ _ _-_ -_-_ _-_ __ Pushon
__
--_ANT
A
_ _ ANT B
Antenna Mixer
[suchus#t93984)*
CONVERTER
36
*Optional accessory available from your dealer or electronics supply store.
Mail order form is on page 31.
Note: Be sure to connect the UHF antenna cable 1o the
UHF screws on the Antenna Mixer and the VHF antenna
cable to the screws marked VHF.
