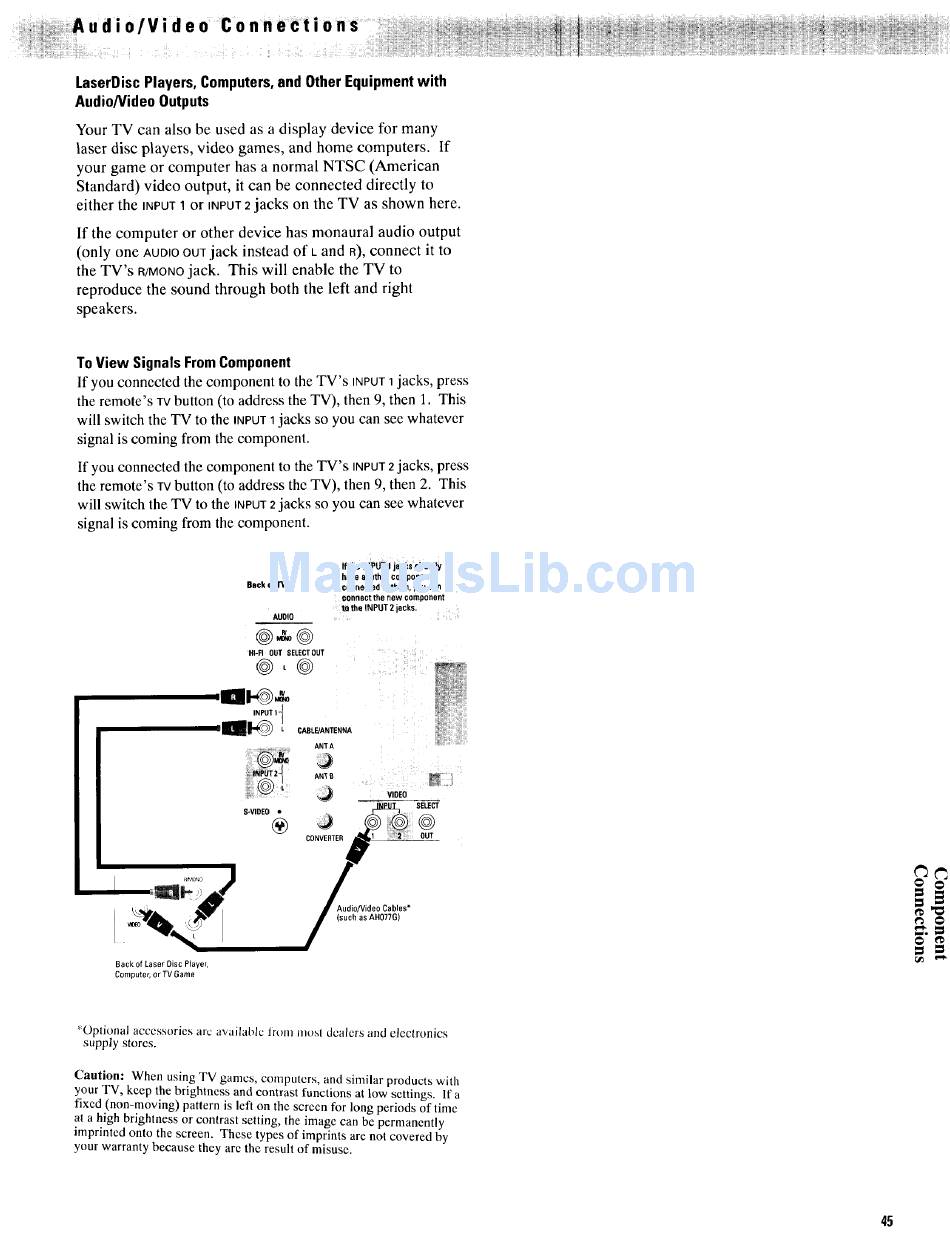

ProScan PS35310 Owner's Manual page 49

_:_:_Audio/Video Connect
LaserDisc Players, Computers,and Other Equipmentwith
Audio/Video Outputs
Your TV can also be used as a display device for many
laser disc players, video games, and home computers. If
your game or computer has a normal NTSC (American
Standard) video output, it can be connected directly to
either the iNPUT 1 or INPUT 2 jacks on the TV as shown here.
If the computer or other device has monaural audio output
(only one AUDIO OUTjack instead of k and a), connect it to
the TV's R/MONO jack. This will enable the TV to
reproduce the sound through both the left and right
speakers.
To View Signals From Component
If you connected the component to the TV's INPUT1jacks, press
the remote's TVbutton (to address the TV), then 9, then 1. This
will switch the TV to the INPUT1 jacks so you can see whatever
signal is coming from the component.
If you connected the component to the TV's INPUT 2 jacks, press
the remote's TVbutton (to address the TV), then 9, then 2. This
will switch the TV to the iNPUT2 jacks so you can see whatever
signal is coming from the component.
Back of TV
_.U01O
HI-FI OUT SELECTOUT
@,@
INPUT 1t
CABLE/ANTENNA
ffthe INPUT ! jacks already
have another component
connected tothem, youcan
connect the new component
to the INPUT Z lacks.
ANT A
@'
VIDEO
SELECT
S-VIDEO •
CONVERTER OUT
Cables*
I (such as AH077G)
Back of Laser Disc Playel,
Computer, or TV Game
.,_.=
*Optional accessories arc available Item Most dealers and electronics
supply stores.
Caution: When using TV games, computers, and similar products with
your TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of time
at a high brightness or contrast setting, the image can be permanently
imprinted onto the screen. These types of imprints are not covered by
your warranty because they are the result of misuse.
45
