Mounting - Outback Power Systems EXTREME OBX-IC2024S-120 Owner's Manual

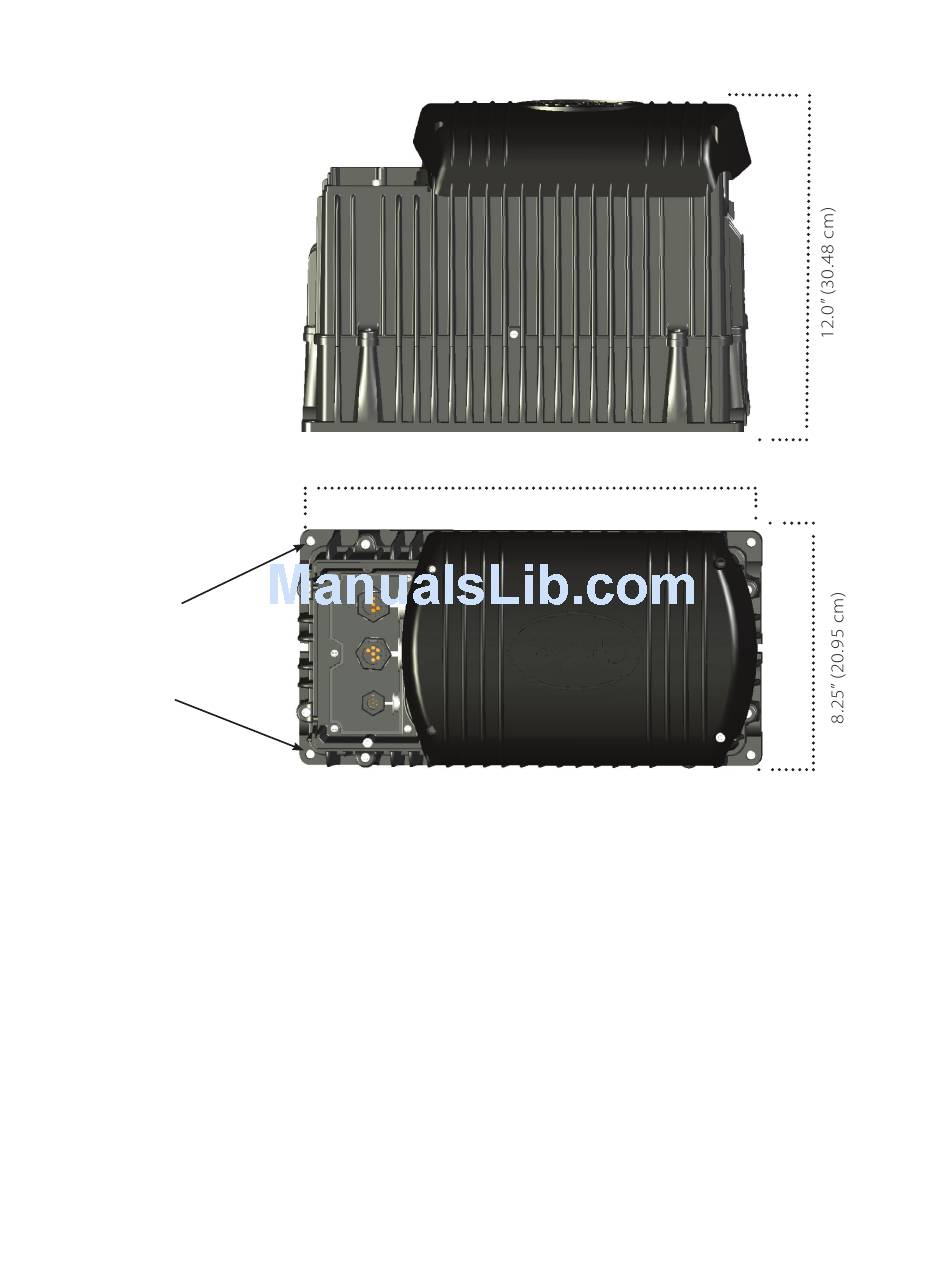

Insert fasteners at all
four corners of the
Inverter for a secure
installation.

MOUNTING

• The Inverter weighs 57.5 lbs (26.08 kg) and must be secured with appropriate fasteners to a sturdy
mounting surface capable of supporting its weight. Depending on application, it may be easier for
two people to install the unit due to the Inverter's weight.
• If internally mounted (protected from the environment), the Inverter can be mounted in any position
or orientation. If externally mounted (exposed to the environment), the Inverter cannot be mounted
upside-down, to ensure that water will not stand under the DC cover. (It can be mounted in any other
position or orientation.) In all cases, the Inverter will perform better in locations offering plenty of air
circulation.
• When mounting the Inverter on a given surface, use appropriate fasteners to support its weight.
OutBack cannot be responsible for damage to the Inverter if it is attached with inadequate fasteners.
• Install and secure each Inverter before attaching any wiring.
• If mounted on a tracked or other non-suspension-type profile, consideration should be made to use
shock dampening technology betwen the platform and the Inverter chassis due to the potential
vibration and other mechanical energy transfer.
6
16.25" (41.27 cm)
