HOT KEYS

"Hot" keys have fixed functions. Pressing a hot key always takes you to the same menu or series of menus.
INV Hot Key
The INV hot key takes you to the Inverter Control screen, allowing direct control of the inverting function
from anywhere in the menu system. (The inverting function is defined as the process of converting DC to
AC, as compared to the charging or other functions.)
The green LED indicator above the INV has three modes:
• Flashing—the Inverter is either in the search or power save modes
• Continuously On—DC battery power is converted to AC power and the Inverter is supplying loads
• Off—the Inverter is not converting DC power to AC power, or else the AC input source is powering
the loads
<OFF> —turns off all Inverters connected to the MATE
<SRCH> —the Inverter begins search mode if the AC load connected is smaller than allowed by
the programming of the search function. This function is not normally required to be used with the
OBX-IC2024S-120/60 Inverter.
<ON> —turns on all Inverters connected to the MATE.
<OK> —returns to the point in the menu system where you entered the INVERTER CONTROL screen.
16
MAIN-------------------------
1:35:04p
SUM STATUS SETUP ADV
INV

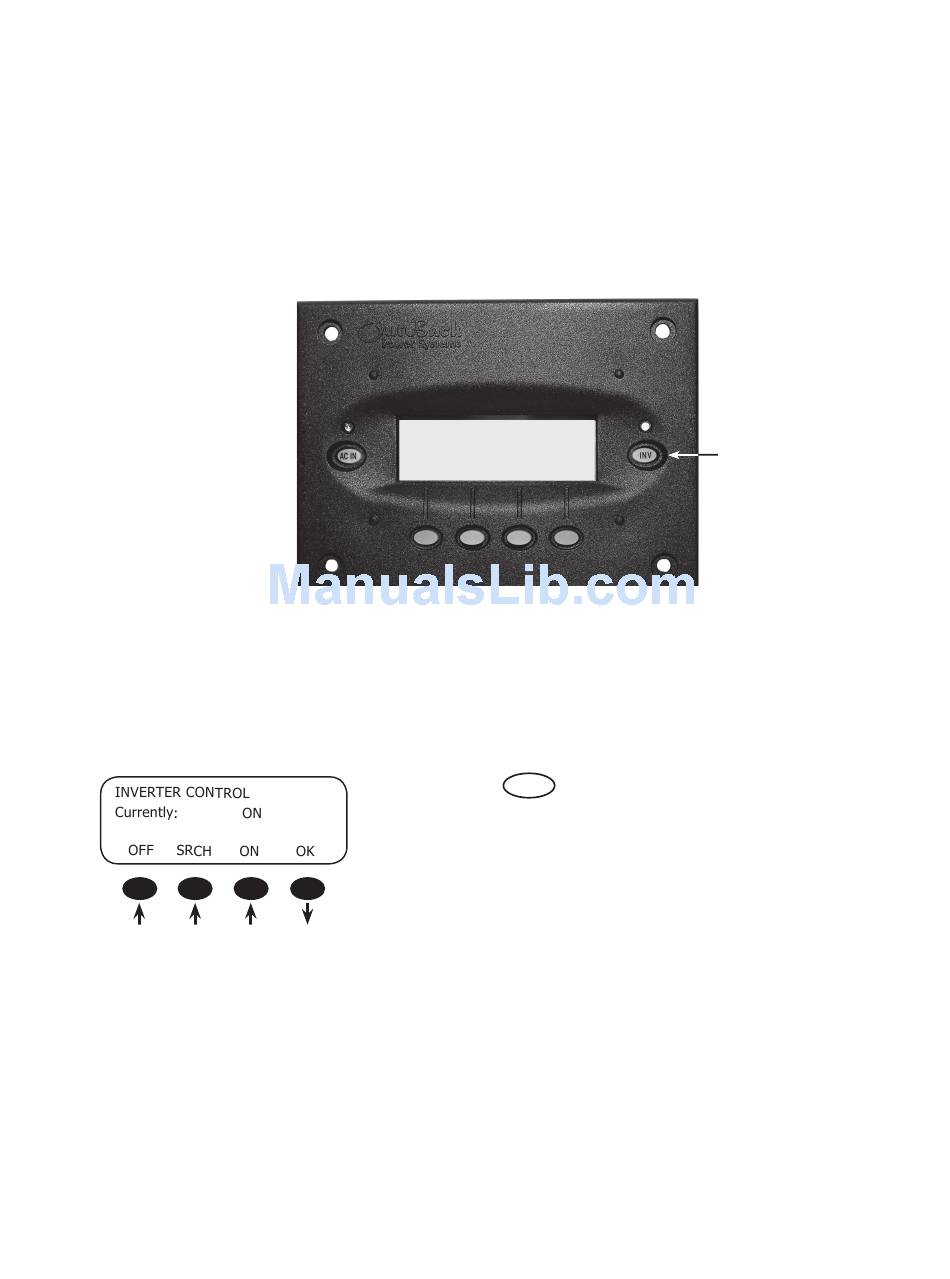

PRESS ONCE:
• The INVERTER CONTROL screen is called up, allowing the
user to turn the inverting function ON or OFF.
INV
Hot Key
