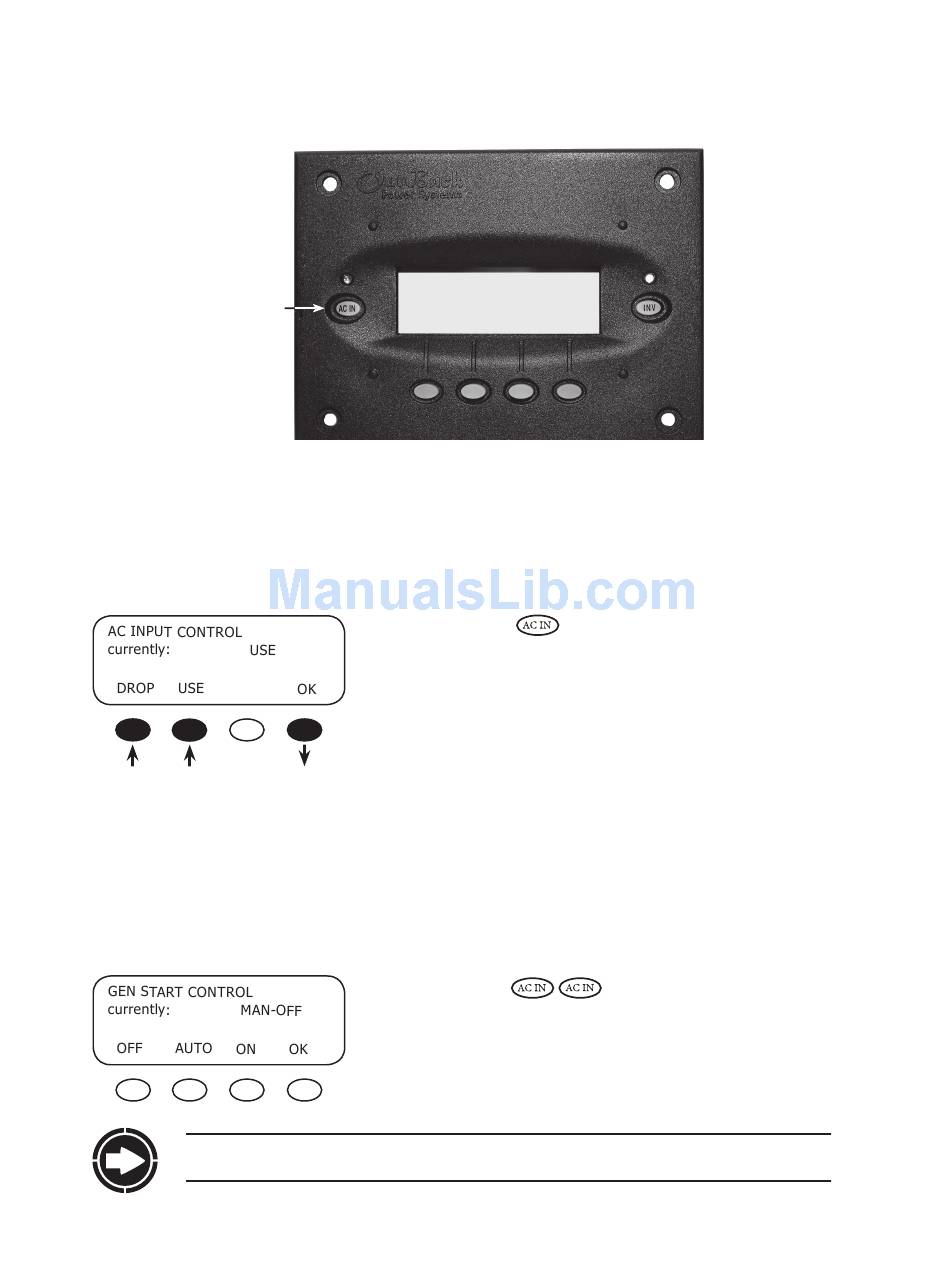

AC IN Hot Key
The AC IN hot key allows direct control of the AC input from anywhere in the menu system.
AC IN
Hot
Key
The yellow LED indicator above the AC IN "hot" key has three modes:
• Flashing - an AC source is available, but not connected
• Continuously On - the AC source is connected and in use (unit stops inverting during this time)
• Off - no AC source is present
Multiple AC IN keypresses will call up different AC and charging-related menus..
<USE> enables the Inverter to connect to an AC input source.
<DROP> disconnects the AC input source but will allow it to be reconnected if the "low battery cut-off set
point" occurs or the Inverter is overloaded.
<OK> returns to the point in the menu system before the user entered the AC INPUT CONTROL menu cycle.
NOTE: The AGS mode cannot be used with the OBX-IC2024S-120/60 Inverter.
MAIN--------------------------
1:35:04p
SUM STATUS SETUP ADV
PRESS ONCE:
• The AC INPUT CONTROL screen is called up, allowing the user
to connect or disconnect the Inverter to an AC input source.
PRESS TWICE:
• The GEN START CONTROL screen allows changes to the
Automatic Generator Start (AGS) mode, which is used with
some models of FX inverter.
