AC OUT PLUG

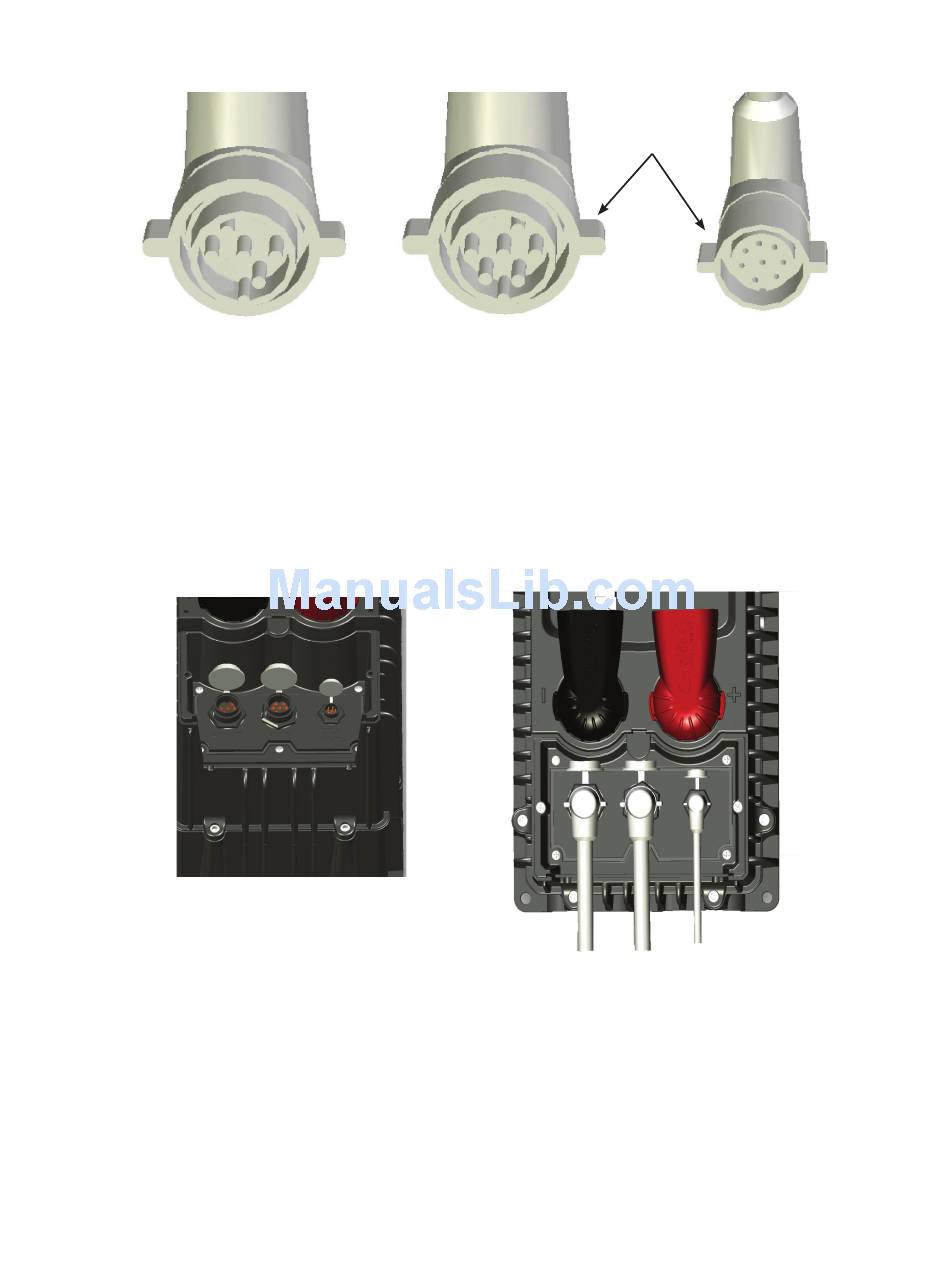

To connect cables to the Connector Plate sockets:
Position each cable plug over the appropriate jack. The cables are easy to tell apart, as the AC In plug has six
pins, the AC Out plug only has five, and the MATE plug is smaller than the others.
Match each cable to its matching jack and fit the plugs into the jacks. If necessary, twist the plugs back and
forth until they fit, and then push them in until they seat in place. (The plugs are keyed to fit only one way
into the jacks, so they cannot be plugged in the wrong way.)
Once each plug is seated, turn the locking collar clockwise a quarter-turn until you feel the plug lock
into place.
POWERING UP
Once all connections are established, it is safe to turn the power on, in the following order:
• Connect DC power, by closing the DC breaker or connecting the fuse. The MATE will power up.
Inverter will energize and begin delivering 120 volts to the output immediately. (The on/off
function is controlled by the MATE. See the next section.)
• Connect the load panel by turning on the main AC breaker. Measure voltage at the disconnect
to ensure that the Inverter is operating. Once this is confirmed, you should be able to run loads
immediately.
• If an AC source is present, connect it by turning on the main AC input breaker. After a short delay, the
Inverter will begin charging the battery.
14
locking collar
AC IN PLUG MATE PLUG
