Outback Power Systems EXTREME OBX-IC2024S-120 Owner's Manual page 13

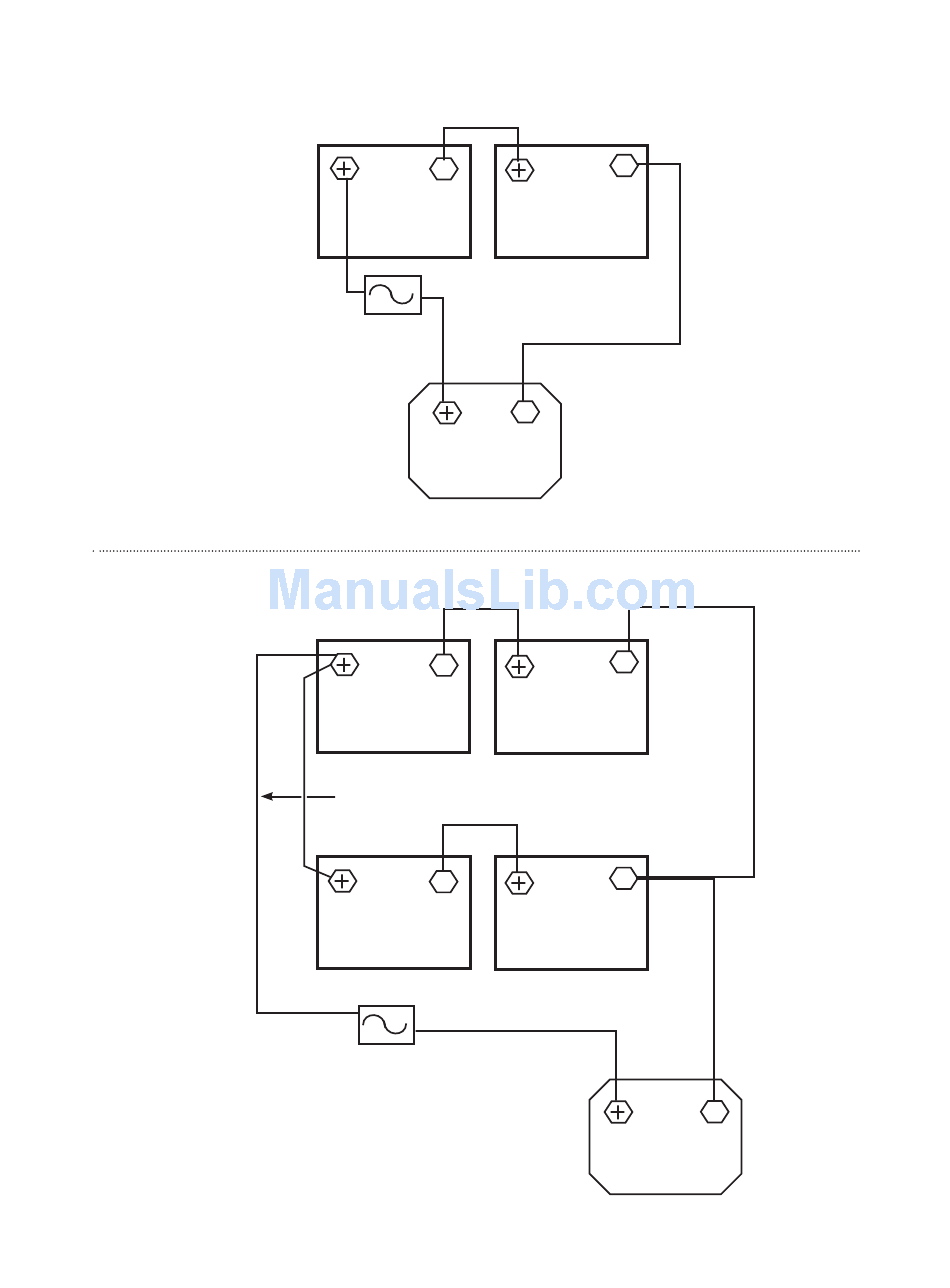

12 V Battery Wiring Examples for a 24-volt system
DC DISCONNECT (FUSE OR
CIRCUIT BREAKER)
SERIES: 200 amp-hours
SERIES/PARALLEL: 400 amp-hours
-
12 V/200
amp-hours
24-volt Inverter
-
12 V/200 amp-hours
SERIES STRING 1 CONNECTS TO
INVERTER'S POSITIVE TERMINAL
-
12 V/200 amp-hours
SERIES STRING 2
DC DISCONNECT (FUSE OR
CIRCUIT BREAKER)
-
12 V/200 amp-hours
-
-
12 V/200 amp-hours
SERIES STRING 1
-
12 V/200 amp-hours
24-volt Inverter
-
11
