AC Wiring

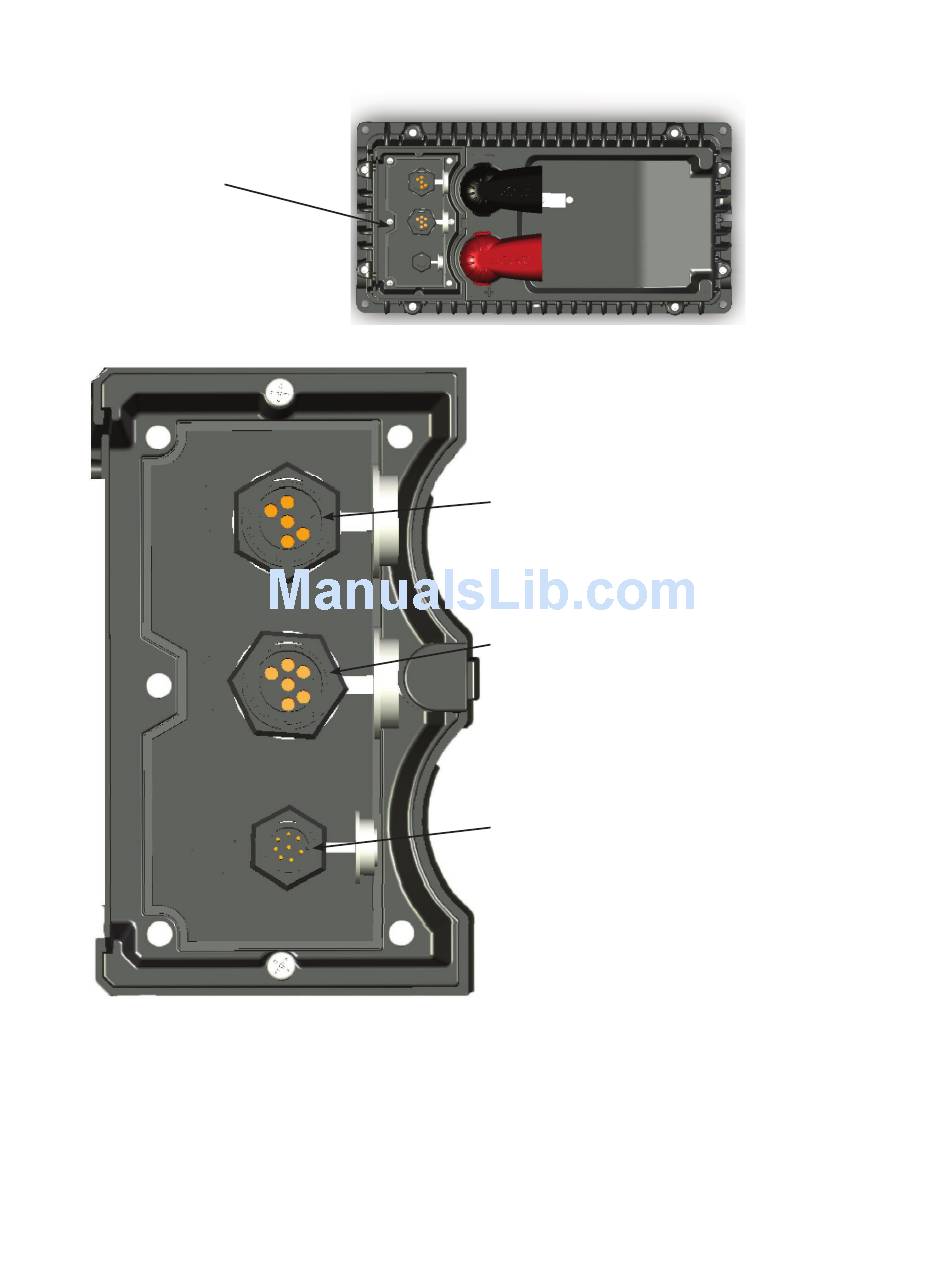

Connector Plate
12
AC OUT SOCKET
• — Maxicon circular
molded watertight connector supplies
power to the loads using the provided AC
cable and plug.
AC IN SOCKET
• — Maxicon circular molded
watertight connector supplies incoming AC
from the grid or a generator to the Inverter.
This AC is used to run loads and recharge
batteries.
MATE (REMOTE) SOCKET
•
circular molded watertight connector
provides an interface with the optional
MATE2 System Controller and Display.
When installed, the MATE provides meter
readings, status messages, and error codes.
— Minicon
