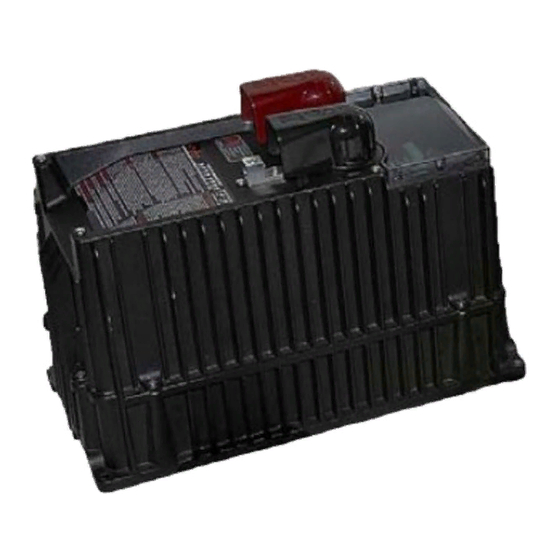

FX and VFX Inverter/Charger
I n s t a l l a t i o n a n d P r o g r a m m i n g M a n u a l
FX 2012T - 2.0 kW / 12 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Americas)
FX 2524T - 2.0 kW / 24 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Americas)
FX 3048T - 2.5 kW / 48 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Americas)
VFX 2812 - 2.8 kW / 12 VDC / 120 VAC / 60 Hz (Ventilated / Americas)
VFX 3524 - 3.5 kW / 24 VDC / 120 VAC / 60 Hz (Ventilated / Americas)
VFX 3648 - 3.6 kW / 48 VDC / 120 VAC / 60 Hz (Ventilated / Americas)
FX 2012MT - 2.0 kW / 12 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Mobile)
FX 2524MT - 2.0 kW / 24 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Mobile)
FX 2532MT - 2.5 kW / 32 VDC / 120 VAC / 60 Hz (Sealed + Turbo / Mobile)
VFX 2812M - 2.8 kW / 12 VDC / 120 VAC / 60 Hz (Ventilated / Mobile)
VFX 3524M - 3.5 kW / 24 VDC / 120 VAC / 60 Hz (Ventilated / Mobile)
VFX 3232M - 3.2 kW / 32 VDC / 120 VAC / 60 Hz (Ventilated / Mobile)
The "Sealed" version of the FX
The "Turbo Kit" that comes with the FX "T" series is shown on page 15
Please check our website at
Installation & Programming Manual
Page 1
OutBack Power Systems
"Americas" and "Mobile"
Document Revision 7.2
"T" stands for Turbo
www.outbackpower.com
FX & VFX Series Inverter/Charger System
"M" stands for Mobile
The "Vented" version of the FX
for the latest product information
900-0027-1
Rev 7.2
08/26/05
Copyright 2003
OutBack Power Systems, Inc.
nd
19009 62
Ave NE, Arlington WA 98223 USA
Tel 360 435 6030
Fax 360 435 6019
Advertisement
Table of Contents
Related Manuals for Outback Power Systems FX 2012T
Summary of Contents for Outback Power Systems FX 2012T
- Page 1 Please check our website at www.outbackpower.com for the latest product information Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 1 Rev 7.2...
- Page 2 Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 2 Rev 7.2 08/26/05 Tel 360 435 6030 Fax 360 435 6019...
-
Page 3: Table Of Contents
STACK PHASE ............................... 27 POWER SAVE LEVEL MASTER ADJUST ONLY .................... 28 FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 3 Rev 7.2... - Page 4 WIRE SIZES ............................62 WARRANTY ............................63 REGISTRATION........................... 65 Extended Warranty Application..................... 65 Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 4 Rev 7.2 08/26/05...
-
Page 5: Important Safety Instructions
IMPORTANT: Always install the battery terminal covers, even in systems that include the DCC (DC Compartment Cover). FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 5 Rev 7.2... -
Page 6: General Precautions
If a remote or automatic generator start system is used, disable the automatic starting circuit and/or disconnect the generator from its starting battery while servicing it to prevent starting while servicing. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 6 Rev 7.2... -
Page 7: Ratings
All Other FXs 60 AAC per FX (AAC = amps AC) FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 7 Rev 7.2... - Page 8 VFX3648 175 amps OBDC-175 Not Recommended Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 8 Rev 7.2 08/26/05 Tel 360 435 6030...
-
Page 9: Mounting
Side view of FX with FXA kit attached. The Turbo Kit adds 1” (25mm) additional height to achieve a total height of 12.87” (327mm) FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 9 Rev 7.2... -
Page 10: Complete Outback Integrated Systems
These components are designed to complete the installation to NEC code while offering flexibility for future expansion. PS4AC PS4DC PS2DC PS2AC Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 10 Rev 7.2 08/26/05 Tel 360 435 6030... -
Page 11: Ac Wiring Connections
NOTE: Non-Mobile FXs need only bypass the AC input hot conductors. Mobile FXs need to bypass both the AC input hot and AC input neutral conductors. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 11 Rev 7.2... -
Page 12: Indicators & Control Wiring
OutBack products and one MATE. NOTE: Although the HUB has 2 ports for MATEs, only the 1 port is operational. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 12 Rev 7.2... -
Page 13: Dc Battery Terminals
UL listed DC rated circuit breakers are available from OutBack Power Systems with amperages of 100, 175 and 250 amps DC. All of the OutBack DC breakers come with threaded studs out the back for connection to ring type terminal lugs. -
Page 14: Fx Accessories
DCA and DCC (or Turbo) are required. The DCC is provided with all VFX inverter/chargers. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 14 Rev 7.2... -
Page 15: Turbo Kit Information
470 uF (micro Farad) electrolytic capacitor (found at your local electronics shop) across the auxiliary output will solve this problem. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 15 Rev 7.2... -
Page 16: Hub Communication Manager
NOTE: There is a limit of ten FX’s when operated as a stacked system. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 16 Rev 7.2... -
Page 17: Fx System Configurations
DC circuit and the chassis of the FX is the responsibility of the installer. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 17 Rev 7.2... -
Page 18: Series Or Series/Parallel Dual Fx System
DC circuit and the chassis of the FX is the responsibility of the installer. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 18 Rev 7.2... -
Page 19: Paralleled Dual Fx System
DC circuit and the chassis of the FX is the responsibility of the installer. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 19 Rev 7.2... -
Page 20: Series/Parallel Quad Fx System
DC circuit and the chassis of the FX is the responsibility of the installer. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 20 Rev 7.2... -
Page 21: Paralleled Quad Fx System
DC circuit and the chassis of the FX is the responsibility of the installer. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 21 Rev 7.2... -
Page 22: 3-Phase Fx System
DC circuit and the chassis of the FX is the responsibility of the installer. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 22 Rev 7.2... -
Page 23: Start-Up & Operation
“Re-Float”. This process of “Silent”, “Re-Float”, “Float, “Silent”, “Re-Float”, etc. will continue until the generator is manually shut off. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 23 Rev 7.2... -
Page 24: Battery Charging Information
FX’s AC transfer switch to the loads connected to the FX’s AC output terminals. When an AC voltage source connects to the FX, a battery charging sequence begins. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 24 Rev 7.2... -
Page 25: Battery Charging Constraints
“Master” FX, leaving the “Master” FX to finish the charge. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 25 Rev 7.2... -
Page 26: Stacking Information
Classic, OutBack, and 3-Phase Stacking Methods OutBack Power Systems offers four different ways to stack multiple FX’s (up to 10 for single or split phase systems, only 3 for three- phase systems). The first thing to consider is if you want all of the FX’s in parallel (FX’s on same AC Output Leg producing 120VAC only), in series (FX’s divided between two AC Output Legs producing 120VAC on each Leg and 240VAC between the two Legs), or in... -
Page 27: Stacking Instructions
FX’s using their DC breakers and verify that the MATE recognizes all FX’s. You can verify this by watching the MATE go through its boot-up sequence. The MATE’s boot-up sequence will show the following screens: (1) “G’day Mate!” (2) “OutBack Power Systems”... -
Page 28: Power Save Level Master Adjust Only
FX down is plugged into port 4 (again, location of the FXs is not a rule, just for simplicity). Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 28 Rev 7.2... -
Page 29: Stacked System Using Outback's "Series / Parallel" Stacking
We’re starting out with port 3 because the FX on port 3 is the first slave that is in series (“OB Slave L2”) with the master. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 29 Rev 7.2... -
Page 30: 3-Phase Stacked System (3 Fx's Only)
Remember that the AC input to a 3-phase system must be a 3-phase source (generator or grid). Have fun with your system! Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 30 Rev 7.2... -
Page 31: Automatic Generator Start Instructions
The socket for this relay is…. Grainger #6C898 MFR: Omron #P2RF-05-E FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 31 Rev 7.2... -
Page 32: Mobile Fx Information
NEU-GND BOND NEUTRAL OUT HOT AC OUT Ground Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 32 Rev 7.2 08/26/05 Tel 360 435 6030 Fax 360 435 6019... -
Page 33: Dual Input Transfer Switch Setup
If the system is 120/240 VAC with 120/240 VAC inputs, a Triple-Pole Double-Throw Switch is required. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 33 Rev 7.2... -
Page 34: Mate - System Controller And Display
OutBack Power Systems dealer. Tracking software is available at www.RightHandEng.com/OutBack. Outback Power Systems currently offers the following different versions of the MATE: “MATE”: Basic MATE with an oval encasing shown below. The casing is grayish white in color. This option includes an RS-232 port. - Page 35 FX you have purchased. The MATE displays that follow are from the most current MATE being sold by OutBack Power Systems. The DC voltage values (the letters “vdc” usually follow these values) shown in the following MATE displays will be the default values for a 12V version of the FX.
-
Page 36: Menu Structure
NOTE: Pressing the left two buttons simultaneously from anywhere in the menu will return you to the MAIN menu screen. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 36 Rev 7.2... - Page 37 Pressing <INC> or <DEC> will cycle through the available modes. function DOWN PORT FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 37 Rev 7.2 Tel 360 435 6030...
-
Page 38: Inverter Control
Select OK to return to the point in the menu system from where you entered the INVERTER CONTROL screen. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 38 Rev 7.2... -
Page 39: Ac Input Control
Once the equalizing process has started, you can stop it at anytime by selecting <STOP> from this same control screen. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 39 Rev 7.2... -
Page 40: Mate - Menu Map
MATE - MENU MAP Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 40 Rev 7.2 08/26/05 Tel 360 435 6030 Fax 360 435 6019... - Page 41 MATE – MENU MAP FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 41 Rev 7.2 Tel 360 435 6030 Fax 360 435 6019...
-
Page 42: Mate Screens
Selling $$$ ..will only appear on “Grid-Tie” FX’s. Battery 13.4V Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 42 Rev 7.2 08/26/05... -
Page 43: Status Screens
Pressing PORT will access the next FX if a HUB is present. MODE PORT FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 43 Rev 7.2... -
Page 44: Meter Menu
STATUS returns to the STATUS screen. end of meter menu TOP STATUS Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 44 Rev 7.2... -
Page 45: Battery Menu
STATUS returns to the STATUS screen. end of battery menu STATUS FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 45 Rev 7.2... -
Page 46: Error Menu
STATUS returns to the first page of the STATUS screen. TOP STATUS Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 46 Rev 7.2... -
Page 47: Warning Menu
STATUS returns to the STATUS screen to allow selection of another product. end of warnings menu TOP STATUS FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 47 Rev 7.2... -
Page 48: Disconnect Menu
TOP STATUS STATUS returns to the STATUS screen to allow selection of another product. Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 48 Rev 7.2... -
Page 49: Sell Menu
The SELL section of the STATUS menu has only one screen. This screen gives a number that refers to a reason the FX would stop selling. OutBack Power Systems technicians use this number to quickly understand what the FX thinks is happening. The system user should not be concerned about this number unless they are experiencing many unknown grid disconnects and they need troubleshooting help. -
Page 50: Setup Screens
MATE. Selecting MAIN returns the display to the MAIN screen. completed TOP SETUP MAIN Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 50 Rev 7.2... -
Page 51: Input Menu
MATE. Selecting MAIN returns the display to the MAIN screen. completed SETUP MAIN FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 51 Rev 7.2... -
Page 52: Advanced Screens
Selecting MAIN will return the user to the MAIN screen. SELL MAIN Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 52 Rev 7.2... -
Page 53: Inverter Menu
Selecting MAIN returns the display to the MAIN screen. completed MAIN FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 53 Rev 7.2... -
Page 54: Charger Menu
Selecting MAIN returns the display to the MAIN screen. completed MAIN Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 54 Rev 7.2... -
Page 55: Grid Menu
Selecting MAIN returns the display to the MAIN screen. completed MAIN FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 55 Rev 7.2... -
Page 56: Generator Menu
Selecting MAIN returns the display to the MAIN screen. completed MAIN Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 56 Rev 7.2... -
Page 57: Auxiliary Menu
The AUX menu section is continued on the following page. FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 57 Rev 7.2... - Page 58 Selecting MAIN returns the display to the MAIN screen. MAIN Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 58 Rev 7.2...
-
Page 59: Stacking Menu
Selecting MAIN returns the display to the MAIN screen. completed MAIN FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 59 Rev 7.2... -
Page 60: Sell Menu
This function should not , I repeat, should not be changed without consulting DOWN IEEE USER PORT OutBack Power Systems first. The GRID TIE AUTHORITY screen allows the user to turn on or off the selling function of the FX. ADV/FX/SELL------P00 When the screen displays “GridTie”... -
Page 61: Calibration Menu
MATE. Selecting MAIN returns the display to the MAIN screen. MAIN END OF ADVANCED MENU SYSTEM FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 61 Rev 7.2... -
Page 62: Wire Sizes
.1662 107.20 .645 16.38 0.06 FX & VFX Series Inverter/Charger System Installation & Programming Manual Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 15 Rev 7.2 08/26/05 Tel 360 435 6030 Fax 360 435 6019... -
Page 63: Warranty
Power Systems will issue a Return Material Authorization (RMA) Number. Mark the outside of the package with the RMA number and include a copy of the purchase invoice in the package. You must ship the products back to OutBack Power Systems in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk of loss or damage during shipment. - Page 64 Installation & Programming Manual FX & VFX Series Inverter/Charger System Copyright 2003 OutBack Power Systems, Inc. 900-0027-1 19009 62 Ave NE, Arlington WA 98223 USA Page 64 Rev 7.2 08/26/05 Tel 360 435 6030 Fax 360 435 6019...
-
Page 65: Registration
REGISTRATION Your purchase of an OutBack Power Systems product is an important investment. Registering your products will help us maintain the standard of excellence you expect from us in terms of performance, quality and reliability. Please take a moment to register and provide us with some important information.
