Status Batt(ery) Screens

STATUS/FX/PAGE 1----------------
choose category:
MODES METER BATT PG2
STATUS/FX/MODE-------------P00
battery
actual
DOWN
STATUS/FX/BATT---------------P00
absorb
time remaining
DOWN UP
STATUS/FX/BATT---------------P00
refloat
setpoint
DOWN UP
STATUS/FX/BATT---------------P00
batt temp.
(not in degree C/F)
DOWN UP
BATT(ERY) Screens
• battery actual
• battery temp compensated
actual reading)
absorb set point
•
absorb time remaining
•
• float set point
• refloat set point
• equalize set point
• equalize time remaining: time remaining in equalize recharging cycle
• batt temp : not active in the OBX-IC2024S-120/60 Inverter
The BATT MODE values cannot be changed in the STATUS screens.
28

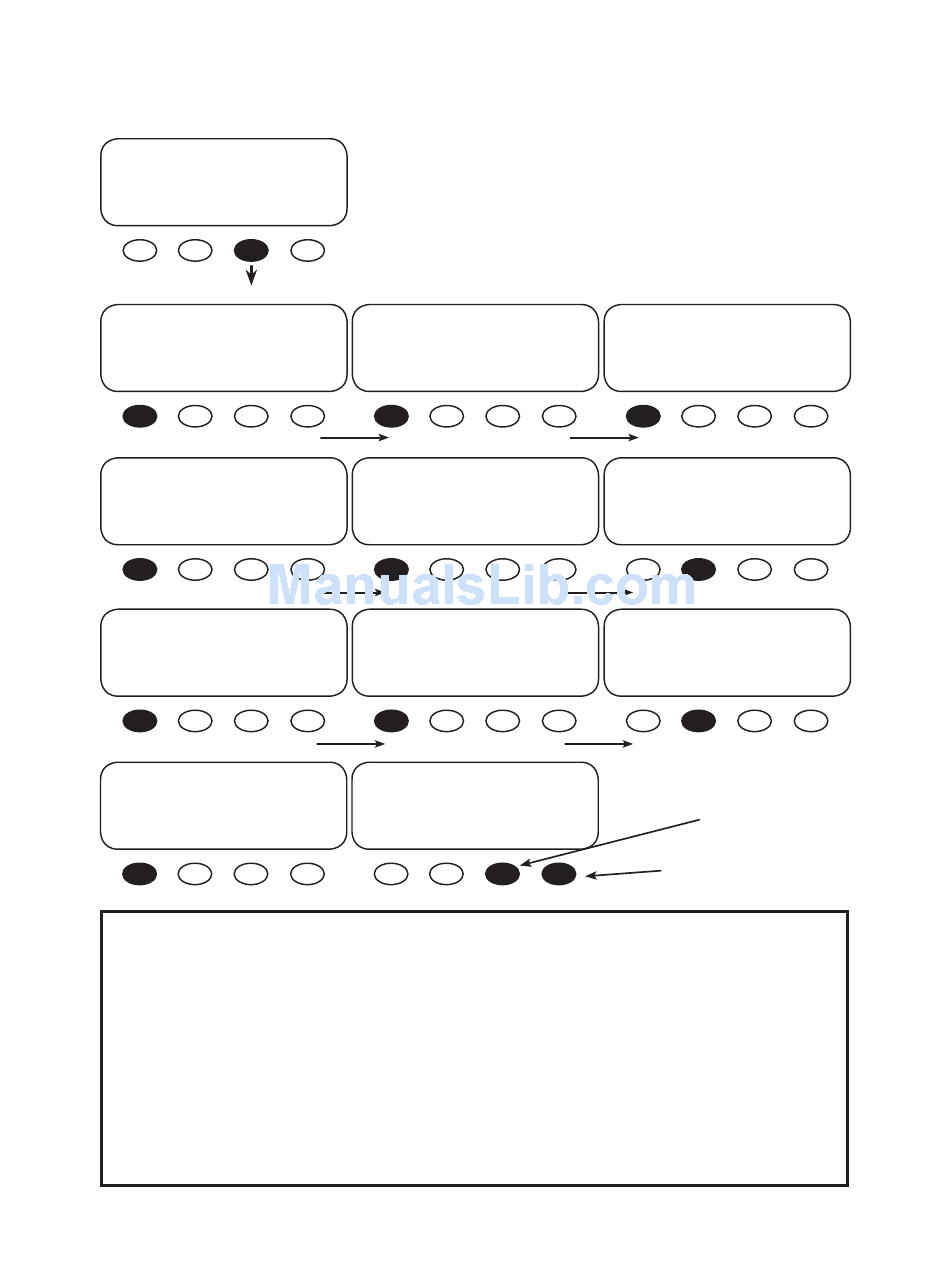

Pressing the <BATT> soft key brings up the first BATT screen.
Pressing the <DOWN> soft key brings up successive BATT screens.
STATUS/FX/MODE-------------P00
27.8 vdc battery
temp compensated
STATUS PORT DOWN
STATUS/FX/BATT---------------P00
00.0 hrs float
setpoint
TOP PORT DOWN
STATUS/FX/BATT---------------P00
12.5 vdc equalize
setpoint
TOP PORT DOWN
STATUS/FX/BATT---------------------
255 end of battery menu
TOP PORT
: battery voltage as measured by the Inverter
: not active in the OBX-IC2024S-120/60 Inverter (reads the same as the battery
: charger set point for absorb recharging cycle
: time remaining in absorb recharging cycle
: battery set point for float recharging cycle
: at this battery voltage, the charger restarts the float recharging cycle
: charger set point for equalize recharging cycle
27.8 vdc
UP TOP PORT
13.6 vdc
UP TOP PORT
14.4 vdc
UP TOP PORT
UP TOP STATUS
STATUS/FX/METER-------------P00
absorb 28.8 vdc
setpoint
DOWN UP TOP PORT
STATUS/FX/BATT---------------P00
float 24.0 hrs
time remaining
DOWN UP TOP PORT
STATUS/FX/BATT---------------P00
equalize 00.0 hrs
time remaining
DOWN UP TOP PORT
Push <TOP> to return to the
first METER screen.
Push <STATUS> to return
to the "choose category"
STATUS screen.
