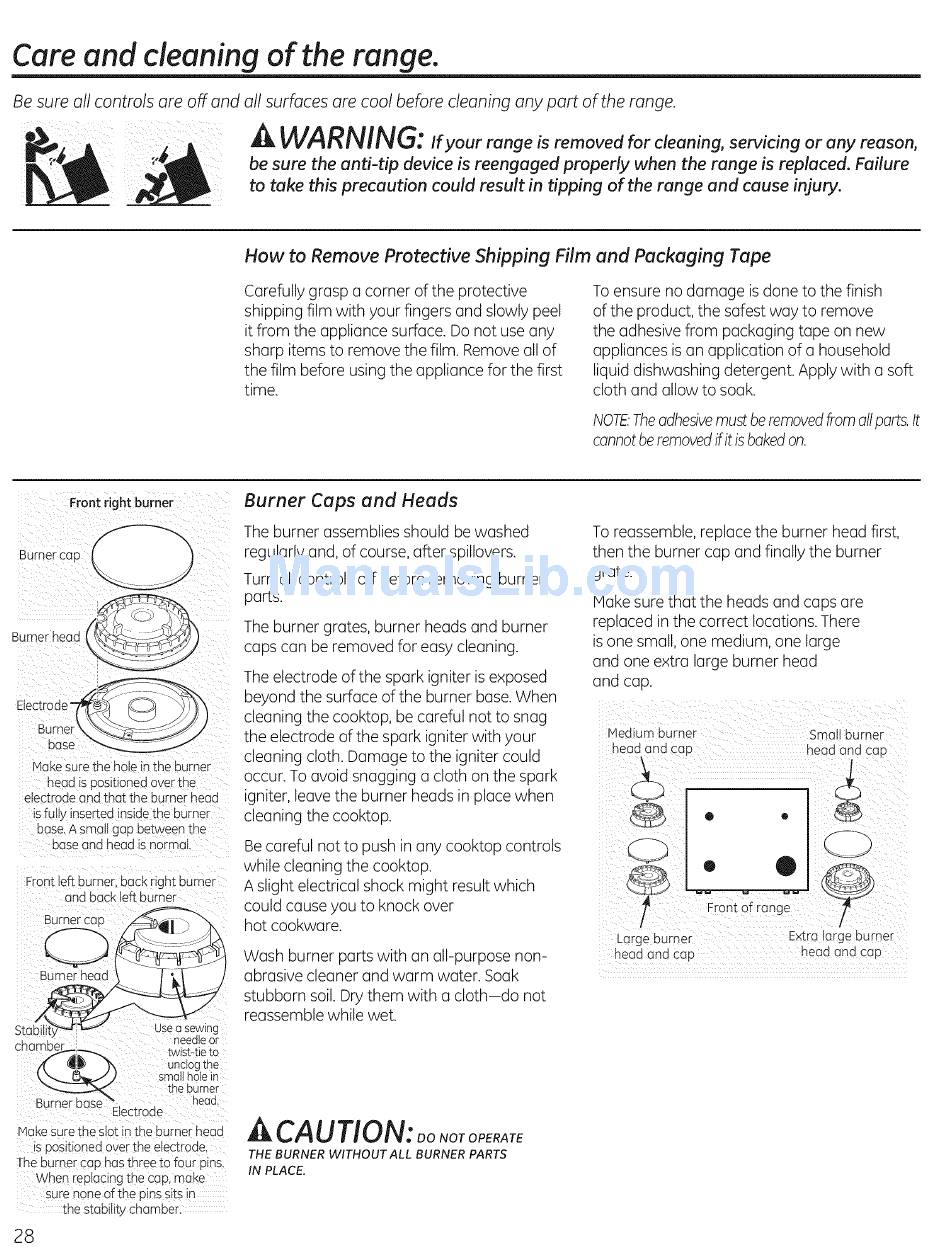

Care and cleaning of the range,
Be sure all controls are off and all surfaces are cool before cleaning any part of the range.
: ,L A WARNING:
Ifyourrangeisremovedfordeaning, servicingoranyreason,
__ be sure the anti-tip device is reengaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective
shipping film with your fingers and slowly peel
it from the appliance surface. Do not use any
sharp items to remove the film. Removeall of
the film before using the appliance for the first
time.
To ensure no damage is done to the finish
of the product, the safest way to remove
the adhesive from packaging tape on new
appliances is an application of a household
liquid dishwashing detergent. Apply with a soft
cloth and allow to soak.
NOTE: Theadhesive mustbe removed from alfparts.It
cannotberemovedifit is bakedon.
Front right burner
\
Burnercao ( )
Burner neac
Electrode_'_
Burner
base ___
Make sure _ne noie _nme Ourner
neaa _soositioned over the
electrode and that me ourner head
is fully inserted inside the ourner
base. A small gap between me
oase and head is normal.
Front left burner, back rignt ourner
ana oack left burner
cnam_._ _
twls_-_le to
if_ _ _ undogthe
L__) small hole in
n_ the burner
Burner base Electrode head.
Make sure the siot inthe burner head
s positioned o er_he electrode.
The burner cad has three to four Dins.
When replacing the cap make
sure none of the Dinssits in
the stabilit, cnamDer.
28
Burner Caps and Heads
The burner assemblies should be washed
regularly and, of course, after spillovers.
Turn all controls off before removing burner
parts.
The burner grates, burner heads and burner
caps can be removed for easy cleaning.
The electrode of the spark igniter is exposed
beyond the surface of the burner base. When
cleaning the cooktop, be careful not to snag
the electrode of the spark igniter with your
cleaning cloth. Damage to the igniter could
occur. To avoid snagging a cloth on the spark
igniter, leave the burner heads in place when
cleaning the cooktop.
Be careful not to push in any cooktop controls
while cleaning the cooktop.
A slight electrical shock might result which
could cause you to knock over
hot cookware.
Wash burner parts with an all-purpose non-
abrasive cleaner and warm water. Soak
stubborn soil. Dry them with a cloth-do not
reassemble while wet.
A CAUTION: oo NOTOPERATE
THE BURNER WITHOUT ALL BURNER PARTS
IN PLACE.
To reassemble, replace the burner headfirst,
then the burner cap and finally the burner
grate.
Make sure that the heads and caps are
replaced in the correct locations. There
is one small, one medium, one large
and one extra large burner head
and cap.
ii;;45 ): ; if??(; ;/ ;/7i ¸
Medium burner Small burner
head and Cap head an d cap
......t
®
Large burner Extra large burner
head andCap headandCap
