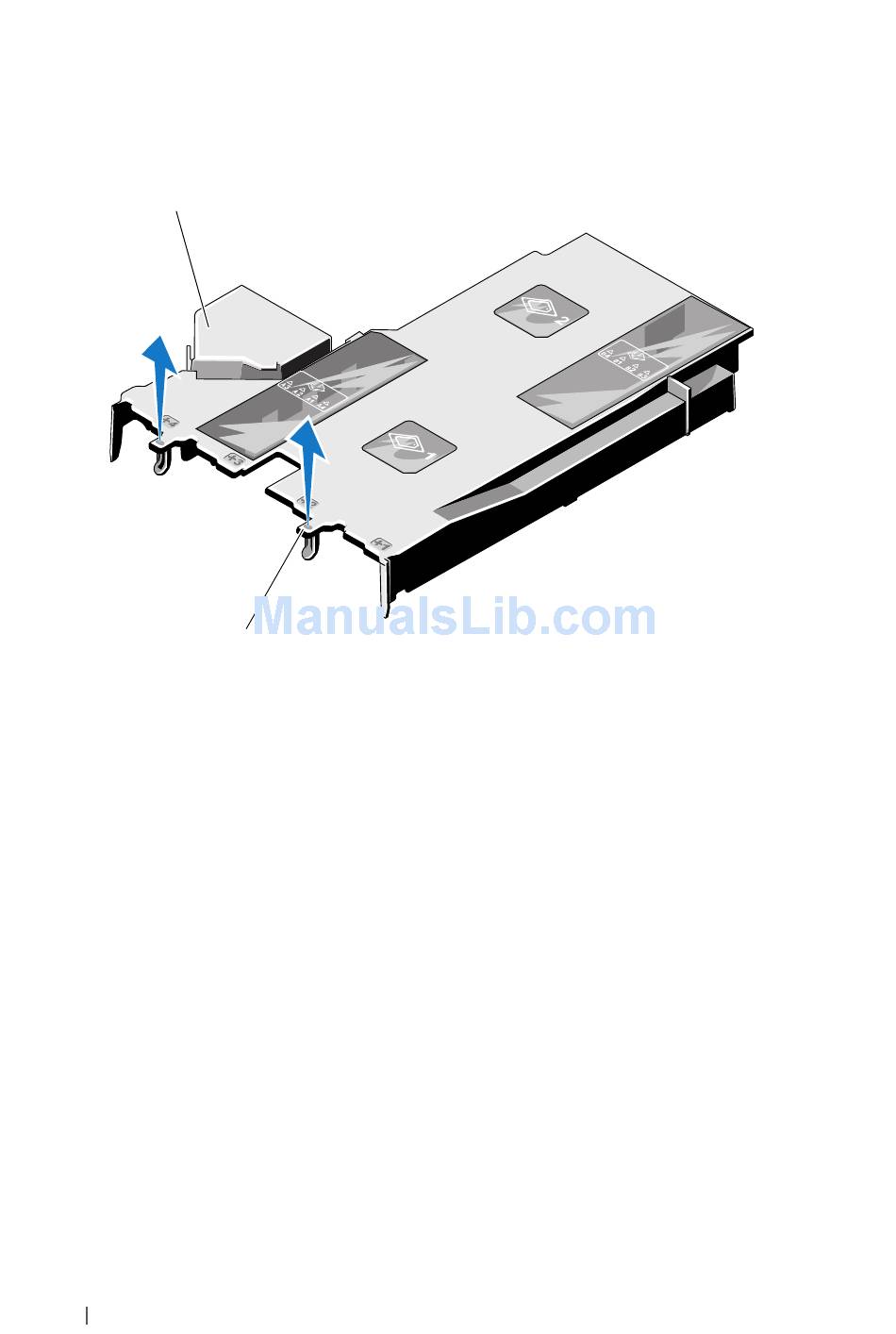

Figure 3-16. Removing and Installing the System Board Shroud
1
1 system board shroud
Installing the System Board Shroud
1 Open the system. See "Opening the System" on page 82.
2 Align the shroud using center of the numbered fan bays as a guide and
locate the tab projection on the left side of the fan module numbered 3.
See Figure 3-16.
3 Push the system board shroud down until all edges are seated in the slots,
securing the shroud to the system board.
4 Route the cables appropriately through the cable holders on the system
board shroud.
5 Close the system. See "Closing the System" on page 83.
110
Installing System Components
2
2 shroud tab (2)
