Summary of Contents for NetComm NCT240

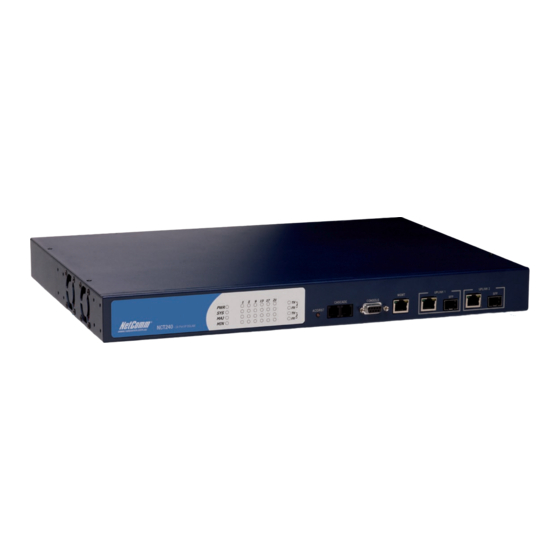

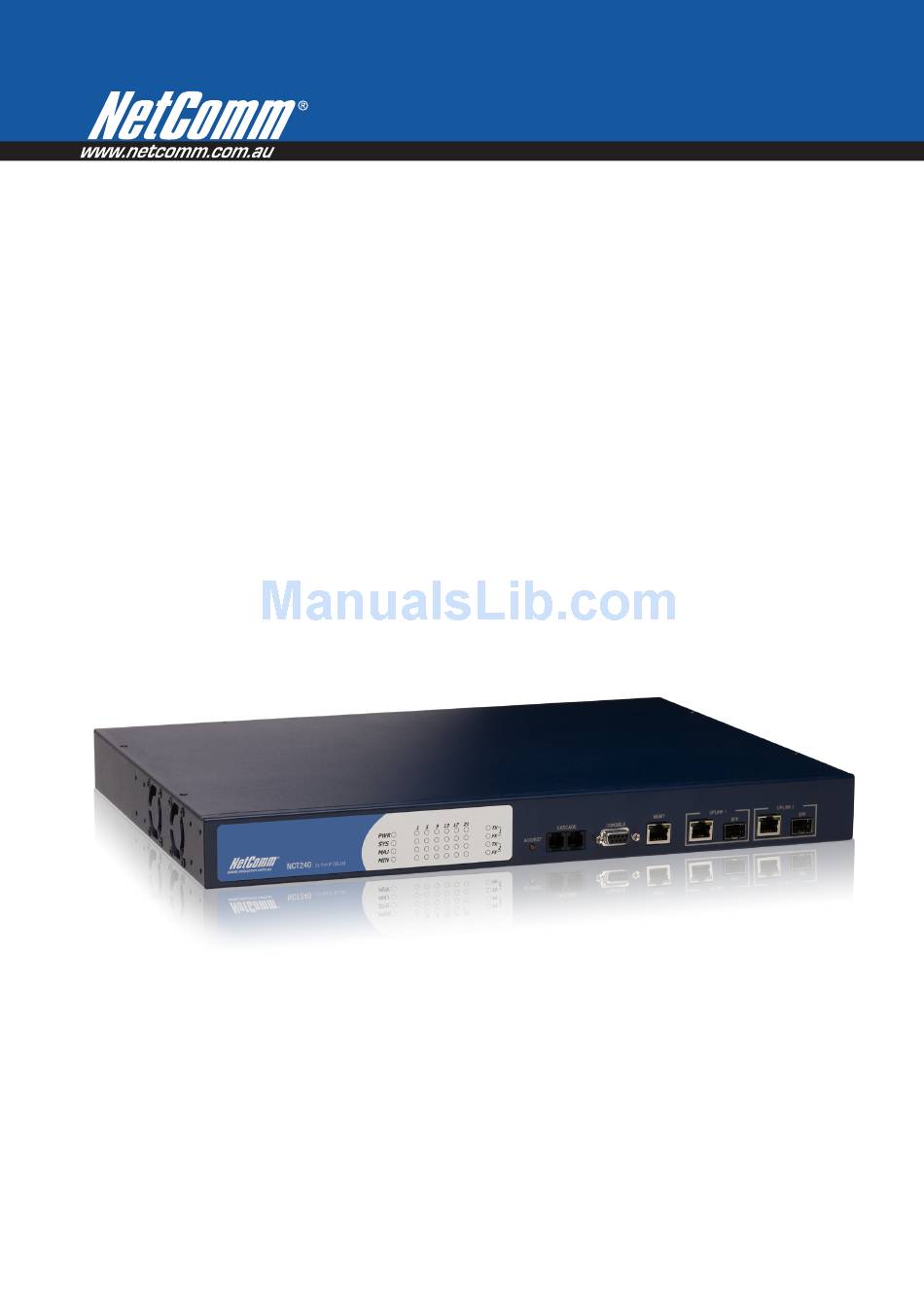

- Page 1 IP DSLAM Management User Guide...
-
Page 2: Table Of Contents
NetComm NCT240 Management Guide Release 1.0 Table of Content 1. INTRODUCTION ..........................5 1.1 F ............................6 EATURES 1.2 B .....................7 ASIC OPERATING INFORMATION 1.2.1 Default username and Password .....................7 1.2.2 Default IP addresses........................7 1.2.3 Default profile..........................7 2. CONFIGURING THE SWITCH BY WEB INTERFACE..............8 2.1 S... - Page 3 NetComm NCT240 Management Guide Release 1.0 2.3.2 Ethernet Port Setting ......................22 2.3.3 MAC management .........................23 2.3.4 IGMP snooping........................24 2.3.5 Port authentication 802.1x ....................24 2.3.6 Queue MAP ...........................25 2.3.7 DHCP relay – option 82 ......................26 2.3.8 Loop test ..........................26 2.4 S ............................26...
- Page 4 NetComm NCT240 Management Guide Release 1.0 Server..............................42 Syslog..............................43 Time ..............................44 Date ..............................44 Timeserver ............................45 Alarm ..............................46 ADSL: ..............................47 Enable.............................47 Disable............................48 Profile .............................49 Name...............................49 Line diagnostic ..........................50 Vcprofile ............................50 Alarmprofile............................51 PVC ..............................51 :...............................52 TATUS Chstatusget .............................52 Linestatusget...........................53 Linestateget ............................53 SWITCH:............................54 Queuemap............................54 VLAN ..............................55...
- Page 5 NetComm NCT240 Management Guide Release 1.0 CONFIG: ............................62 Save ..............................63 Restore............................63 4. TROUBLESHOOTING........................64 ........................64 ROUBLESHOOTING GUIDE 6. GLOSSARY ............................66...
-
Page 6: Introduction
Release 1.0 1. Introduction This document is intended for First Office Acceptance test plan for NetComm’s ADSL2+ Broadband Access Switch solution (BAS). The Netcomm NCT240 Broadband Access Switch contains 24 ADSL2/2+ circuits to deliver high-speed data, video and voice service over traditional twisted copper pairs by using DSL technology. -
Page 7: Features
NetComm NCT240 Management Guide Release 1.0 The NCT240 Access system contains 24 ADSL2/2+ circuits to deliver high-speed data service over twisted copper pairs using industry standard Discrete Multi-Tone (DMT) line coding technology. The NCT240 complies with full-rate ADSL in accordance with ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite)ITU-T G.992.3 (ADSL2) and ITU G.992.5... -
Page 8: Basic Operating Information
MGMT : (Management Ethernet port ) – 192.168.1.1 UPLINKs : 192.168.0.1 1.2.3 Default profile The NetComm NCT240 comes with the following default settings for all of the ADSL ports and it is ready to use as a basic DSLAM out of the box. VC Profile:... -
Page 9: Configuring The Switch By Web Interface
NetComm NCT240 Management Guide Release 1.0 2. Configuring the Switch by Web Interface Log in 2.1 System 2.1.1 System Info This page displays the basic system information... -
Page 10: System Log
NetComm NCT240 Management Guide Release 1.0 2.1.2 System log When you enter to the syslog page the first function visible is enable and disable, default is enabled. There are three types of syslogs , 1) Error log 2) Warning log 3) Message log Show –... -
Page 11: Snmp Setup
NetComm NCT240 Management Guide Release 1.0 2.1.3 SNMP setup This page is for configuring the built in SNMP agent, NCT240 support SNMP V2c SNMP set community: SNMP get community: SNMP trap community and the Trap receiver IP address 2.1.4 General setup... -
Page 12: Reboot
NetComm NCT240 Management Guide Release 1.0 Display and Edit General information Host Name: NCT240 Host name Location: NCT240 location Contact Person’s Name: maintainer’s name Model: NCT240 model User Time Server When Bootup: Select time service protocol during bootup. Time Server IP Address: IP address of Time server... -
Page 13: Synchronization With Time Server (Sntp)
NetComm NCT240 Management Guide Release 1.0 2.1.6 Synchronization with Time server (SNTP) 2.1.7 User Management Add, delete and Modify user information 2.1.8 Log out... -
Page 14: Server Services
NetComm NCT240 Management Guide Release 1.0 2.1.9 Server services 2.1.10 Alarm This page is used for displaying current alarms and alarm history, Display current alarms or Alarm history, 2.1.11 Daisy control Please refer to the application note on Daisy control for more details... -
Page 15: Software Upgrade And Configuration Backup
NetComm NCT240 Management Guide Release 1.0 2.1.12 Software upgrade and Configuration backup Page for setting the FTP server settings Page for selecting which file to upgrade Page to back the files... -
Page 16: Adsl
NetComm NCT240 Management Guide Release 1.0 2.2 ADSL 2.2.1 xDSL port setup Enable and Disable ADSL ports, map ADSL profiles to each port individually, copy settings of one port to another port 2.2.1.1 Map profile... -
Page 17: Copy Settings To Other Ports
NetComm NCT240 Management Guide Release 1.0 Map ADSL profile, Alarm profile, ADSL mode (and the annex) to ADSL ports 2.2.1.2 copy Settings to other ports 2.2.1.3 PVC Map (single and Multiple PVC setup) PVC can be set to a range of ports or to Individual ports using this page. -
Page 18: Pvc Show
NetComm NCT240 Management Guide Release 1.0 2.2.1.4 PVC show The PVC profile of an individual port or a range of ports can be displayed using this page. 2.2.1.5 PVC delete... -
Page 19: Multiple Port Xdsl Set Up
NetComm NCT240 Management Guide Release 1.0 2.2.2 Multiple port xDSL set up This page is used for configuring several ports with the same configuration: After selecting the ports, click on Apply:... -
Page 20: Xdsl Profiles
NetComm NCT240 Management Guide Release 1.0 2.2.3 xDSL profiles 2.2.3.1 Port profile ADSL profiles can be added and deleted using this page 2.2.3.2 VC profile VC profile can be added using this page... -
Page 21: Alarm Profile
NetComm NCT240 Management Guide Release 1.0 2.2.3.3 Alarm profile SET alarm profile 2.2.3.4 Map alarm profile Map the Alarm profile... -
Page 22: Line Diagnostic - Delt
NetComm NCT240 Management Guide Release 1.0 2.2.4 Line Diagnostic – DELT 2.3 Switch 2.3.1 VLAN Default VLAN Stack VLAN Priority Tag mode Strip mode... -
Page 23: Ethernet Port Setting
NetComm NCT240 Management Guide Release 1.0 Forwarding method Frame types 2.3.2 Ethernet Port Setting Uplink 1 and 2 enable and disable Flow control configuration... -
Page 24: Mac Management
NetComm NCT240 Management Guide Release 1.0 2.3.3 MAC management This page is used for setting up the MAC aging time for the L2 switch feature in NCT240 and for setting up the MAC filter, MAC aging time setting – Default is NO MAC ageing MAC filter settings, up to 20 MAC addresses can be added to the filter list. -
Page 25: Igmp Snooping
NetComm NCT240 Management Guide Release 1.0 2.3.4 IGMP snooping This page is for configuring IGMP snooping feature, IGMP snooping can be enabled for PVC, VLAN. IGMP snooping and IGMP fast leave feature can be enabled and disabled. 2.3.5 Port authentication 802.1x... -
Page 26: Queue Map
NetComm NCT240 Management Guide Release 1.0 802.1x monitor page: 2.3.6 Queue MAP... -
Page 27: Dhcp Relay - Option 82
NetComm NCT240 Management Guide Release 1.0 2.3.7 DHCP relay – option 82 2.3.8 Loop test 2.4 Status 2.4.1 Channel status... -
Page 28: Line Status
NetComm NCT240 Management Guide Release 1.0 Display the channel status of each port Upstream and Downstream. 2.4.2 Line status Display the Line status for each line. 2.4.4 Line state This page displays the current state of the line. -
Page 29: Ip Setup
NetComm NCT240 Management Guide Release 1.0 2.5 IP 2.5.1 IP setup For Setting IP, Net mask and Default gateway for two 1000base uplink ports. For setting IP, Net mask and Default gateway for the Management 100base Ethernet port. 2.5.2 ARP table Display and flush... -
Page 30: Ping Function
NetComm NCT240 Management Guide Release 1.0 2.5.3 PING function For pinging any IP address for diagnostic purposes. 2.5.4 VLAN (For management ) 2.6 Performance 2.6.1 ADSL performance For 15 minutes to 1days performance data for NCT240... -
Page 31: Statistics
NetComm NCT240 Management Guide Release 1.0 2.7 Statistics 2.7.1 Gigabit Ethernet port counters 2.7.2 Utopia counter Port 1~8 = Utopia port 0~7 Port 9~16 = Utopia port 32~39 Port 17~24 = Utopia port 64~71 2.7.3 VCC counter... -
Page 32: Ether Port Counter
NetComm NCT240 Management Guide Release 1.0 2.7.4 Ether port counter 2.7.5 Vcencap counter 2.7.6 Excpetion counter... -
Page 33: Configuration
NetComm NCT240 Management Guide Release 1.0 2.8 Configuration 2.8.1 Configuration save SAVE the current configuration of NCT240 in to non volatile Memory 2.8.2 Restore Set the current configuration to last saved or factory default settings... -
Page 34: Configuring Nct240 By Cli Interface
NetComm NCT240 Management Guide Release 1.0 3. Configuring NCT240 by CLI Interface To use “windows hyper terminal” to get into CLI interface, a configuration need to be set as the method below: GOTO – Start > Programs > Accessories > Communications > HyperTerminal... - Page 35 NetComm NCT240 Management Guide Release 1.0 Select the comport the device is connected to - (if you are using a computer with a built in com-port the port number will be COM1 or COM2 but if you are using a...
-
Page 36: Log In Process
NetComm NCT240 Management Guide Release 1.0 After completing the initial setup, GOTO – File > Properties > settings And do the settings according to the window below. Log in Process When connected to the CLI please use the username/password – admin/admin;... - Page 37 NetComm NCT240 Management Guide Release 1.0 This chapter introduces the command line interface and lists the available commands. It is divided into 7 topics: 1. System:- Deal with system configuration and maintenance. 2. ADSL:- Introducing and configuring ADSL parameters. 3. Status :- Display the system status 4.
-
Page 38: Command Format
NetComm NCT240 Management Guide Release 1.0 Command format Some commands required parameter(s). The number of parameter required is different for each command. To know each command’s parameters, just type the command name. For example, to know the command format for XXX, you can type XXX; the screen will show something like this: XXX <aaa|bbb|ccc|ddd>... -
Page 39: System
NetComm NCT240 Management Guide Release 1.0 SYSTEM: These are the commonly used commands that belong to the sys (system) group of commands as the figure 2. You can input “help” or “?” for help. BAS/sys>help help Display command list Display command list... -
Page 40: Update
NetComm NCT240 Management Guide Release 1.0 Command usage : BAS0/sys>daisy The management of daisy chain. Usage: daisycontrol <show|setdevice|settarget|tsetslavenum|tshowslavenum> show Display the settings of daisy chain management. setdevice Set the local device ID. settarget Set the target ID. setslavenum Set the max slave number. -
Page 41: Info
NetComm NCT240 Management Guide Release 1.0 Info This command shows general system setting about switch name, switch location, contact person and contact phone number. Syntax: info <show | switchname | location | contact | phone> show – list all the settings of the info menu switchname –... -
Page 42: Reboot
NetComm NCT240 Management Guide Release 1.0 Command usage : BAS/sys>user Setup user information. Usage: user <add| del| list| online| passwd> Add an account and assign it's group. Delete an account. list List all registered users in the system online List all online users in the system passwd Set the user's password. -
Page 43: Snmp
NetComm NCT240 Management Guide Release 1.0 SNMP This command is for configuring SNMP agent: Syntax: snmp <show|getcommunity|setcommunity|trapcommunity> show Display SNMP settings. getcommunity Set the SNMP GetRequest community. setcommunity Set the SNMP SetRequest community. trapsetting Set the SNMP TrapCommunity, trapIP, trapPort. -
Page 44: Syslog
NetComm NCT240 Management Guide Release 1.0 Syslog syslog is a utility for tracking and logging all manner of system messages from the merely informational to the extremely critical. Each system message sent to the syslog server has two descriptive labels associated with it that makes the message easier to handle The first describes the function (facility) of the application that generated it. -
Page 45: Time
NetComm NCT240 Management Guide Release 1.0 Time This command can display and set system’s time. Syntax: time <show | set> show – display system time set – set system time Command usage: set time use this format hh:mm:ss NCT240 uses 24 hours format BAS/sys>time... -
Page 46: Timeserver
NetComm NCT240 Management Guide Release 1.0 Command usage: set date use this format yyyy:mm:dd BAS/sys>date The system's current date Usage: date <show| set> show Display the system's current date. Set the system's date. date command Timeserver This command can display and use system’s time server. -
Page 47: Alarm
NetComm NCT240 Management Guide Release 1.0 Alarm Syntax: alarm <show> show Display the recorded system alarm. alarm show <current|history> Command usage: BAS0/sys>alarm The recorded system alarm. Usage: alarm <show> show Display the recorded system alarm. BAS0/sys>alarm show Usage: alarm show <current|history>... -
Page 48: Adsl
NetComm NCT240 Management Guide Release 1.0 ADSL: This chapter explains how to configure NCT240 system’s ADSL ports. It also covers how to configure virtual channels and virtual channel profiles. A profile is a table that contains a list of pre-configured ADSL settings. Each ADSL port has one profile assigned to it. -
Page 49: Disable
NetComm NCT240 Management Guide Release 1.0 Command usage: BAS/adsl>enable Turn on the specified ADSL ports Usage: enable portlist (1-24) BAS/adsl>enable 1~24 (will enable all the ports) enable command Disable Syntax: disable <port> disable an ADSL port Command usage: BAS/adsl>disable Turn off the specified ADSL ports... -
Page 50: Profile
NetComm NCT240 Management Guide Release 1.0 Profile Syntax: profile <show| set| delete| map> show –show an ADSL profile set – create an ADSL line profile downstream max rate – downstream minimum rate delete – remove an ADSL profile map – assign a specified profile to a port and set the port's ADSL mode Command usages: set –... -
Page 51: Line Diagnostic
NetComm NCT240 Management Guide Release 1.0 Line diagnostic Syntax: linediag <port number> Run line diagnostic on the specified port Command usage: BAS/adsl>linediag Usage: linediag Set the specified port to line diagnostics and display the result. Vcprofile Syntax: vcprofile <show| set| delete>... -
Page 52: Alarmprofile
NetComm NCT240 Management Guide Release 1.0 Alarmprofile Syntax: alarmprofile <show| set| delete| map> show – display alarm profiles and their settings set – configure an alarm profile delete – remove an alarm profile map – map specified ADSL ports to an alarm profile Command usage: BAS/adsl>alarmprofile... -
Page 53: Status
NetComm NCT240 Management Guide Release 1.0 Command usage: BAS/adsl>pvc Display, create, modify, and remove a PVC setting Usage: pvc <list|show| set| delete> list List all mapped vcprofiles for all port. show Display PVC settings. Create or modify a PVC setting. -
Page 54: Linestatusget
NetComm NCT240 Management Guide Release 1.0 Linestatusget This command will list the line status. Syntax: linestatusget Command usage: BAS/status>linestatusget line status get Usage: linestatusget nLine(1-24) nDirection(0-1) linestateget command Linestateget This command will list the line states. Syntax: linestateget Example: BAS/status>linestateget... -
Page 55: Switch
NetComm NCT240 Management Guide Release 1.0 SWITCH: This chapter will guide user how to configure the NCT240 switch features. help Display command list Display command list queuemap The system's priority level to physical queue mapping vlan Setting VLAN portvlan Setting port based vlan group... -
Page 56: Vlan
NetComm NCT240 Management Guide Release 1.0 VLAN Usage: vlan <show|portshow|basicset|advset|switchmode|frametype> show Display VLAN settings. portshow Display the port(s) VLAN settings. basicset Basic Configuration of a VLAN entry. advset Advanced Configuration of a VLAN entry. switchmode Set forwarding mode. frametype Set the specified DSL port to accept tagged, untagged or Ethernet frames (or both). -
Page 57: 802.1X
NetComm NCT240 Management Guide Release 1.0 802.1x Syntax: 802_1x <show|portmode|enable|disable|portenable|portdisable|config|timer> show - Display IEEE 802.1X settings. Enable - Enable 802.1x protocol disable - Disable 802.1x protocol portmode - Set portmode on special ports portenable - Turn on IEEE 802.1X on special ports. -
Page 58: Dhcp Relay, Option 82
NetComm NCT240 Management Guide Release 1.0 Command Usage: igmpsnoop <show|set|enable|disable|fastleave> igmpsnoop <show> igmpsnoop set <VPI(0~4095)> <VCI(0~65535)> <VID> <Priority> igmpsnoop <enable> Turn on IGMP snooping. igmpsnoop <disable> igmpsnoop fastleave <enable>|<disable> igmpsnoop <showentry> DHCP relay, option 82 Syntax: dhcprelay <show|enable|disable|server> show - show settings and status of dhcp relay. -
Page 59: Looptest
NetComm NCT240 Management Guide Release 1.0 Looptest Using this command you can diagnostic this device through four ways loops. Syntax: looptest <ingutopia|egutopia|ingge0|egge0|disable> ingutopia - LoopLine Interface, UTOPIA Ingress Loop enable egutopia - LoopLine Interface, UTOPIA Egress Loop enable ingge0 - System Interface, LAN Interface Ingress Loop enable... -
Page 60: Arp
NetComm NCT240 Management Guide Release 1.0 Command usage: BAS/ip>show ixp0 ip addr: 192.168.1.1 mac addr: 00:aa:aa:aa:aa:aa gateway: 0.0.0.0 net mask: 255.255.255.0 eth0 ip addr: 192.168.0.1 mac addr: 00:05:ca:00:04:10 gateway: 0.0.0.0 net mask: 255.255.255.0 Figure 29：show command Syntax: arp <show | flush>... -
Page 61: Gateway
NetComm NCT240 Management Guide Release 1.0 Command usage: set <ip|netmask|mac|vlan> set ip <device ID> <ip> set netmask <device ID> <netmask> set mac <device ID> <MAC> set vlan <enable|disable> <VID> Gateway Use this command to establish a static route between this device and management stations that exist on another network segment. -
Page 62: Statistics
NetComm NCT240 Management Guide Release 1.0 Command usage : ping <ip> <count> STATISTICS: Use these commands to display ADSL statistics. help Display command list Display command list adsl Display DSL statistics ethuto Display UTOPIA|VCC|ETHER|GE data exit Return to upper level Figure 35：statistics command list... -
Page 63: Ethuto
NetComm NCT240 Management Guide Release 1.0 Ethuto Syntax: ethuto <utopia| vcc| ether| ge| vcencapgroup| exception> utopia –display UTOPIA port rx and tx counters vcc –display Vcc interface rx and tx counters ether –display ether interface rx and tx counters ge – display ge port rx and tx counters vcencapgroup –... -
Page 64: Save
NetComm NCT240 Management Guide Release 1.0 Save This command saves all system configurations to nonvolatile memory. You must use this command to save any configuration changes that you make, otherwise the NCT240 will ignore the changes. Save your changes after each configuration session. -
Page 65: Troubleshooting
NetComm NCT240 Management Guide Release 1.0 4. Troubleshooting Troubleshooting guide Trouble Possible cause Solution PWR indicator Power outlet, power • Check the power outlet by plugging does not light up cord, or internal power in another device that is functioning after power on. - Page 66 NetComm NCT240 Management Guide Release 1.0 Cannot ping uplink...
-
Page 67: Glossary
NetComm NCT240 Management Guide Release 1.0 6. Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 UTP cable. - Page 68 NetComm NCT240 Management Guide Release 1.0 OSI model and extends the physical layer and media with repeaters and implementations that operate on fiber, thin coax and twisted-pair cable. Fast Ethernet A 100 Mbps network communication system based on Ethernet and the CSMA/CD access method.
- Page 69 NetComm NCT240 Management Guide Release 1.0 A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes. MDF (Main Distribution Frame) Equipment where outside telephone lines are terminated at a building or site.
- Page 70 NetComm NCT240 Management Guide Release 1.0 A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network. A VLAN serves as a logical workgroup with no physical barriers, allowing users to share...
- Page 71 Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
