Summary of Contents for NetComm NP1201

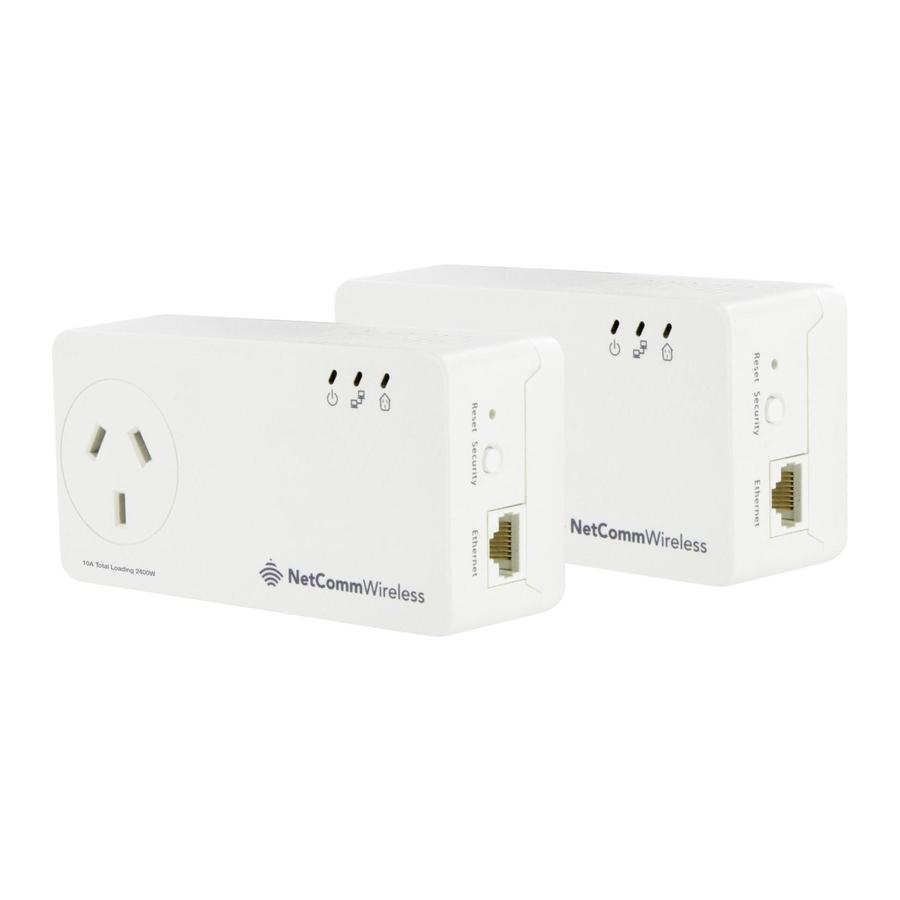

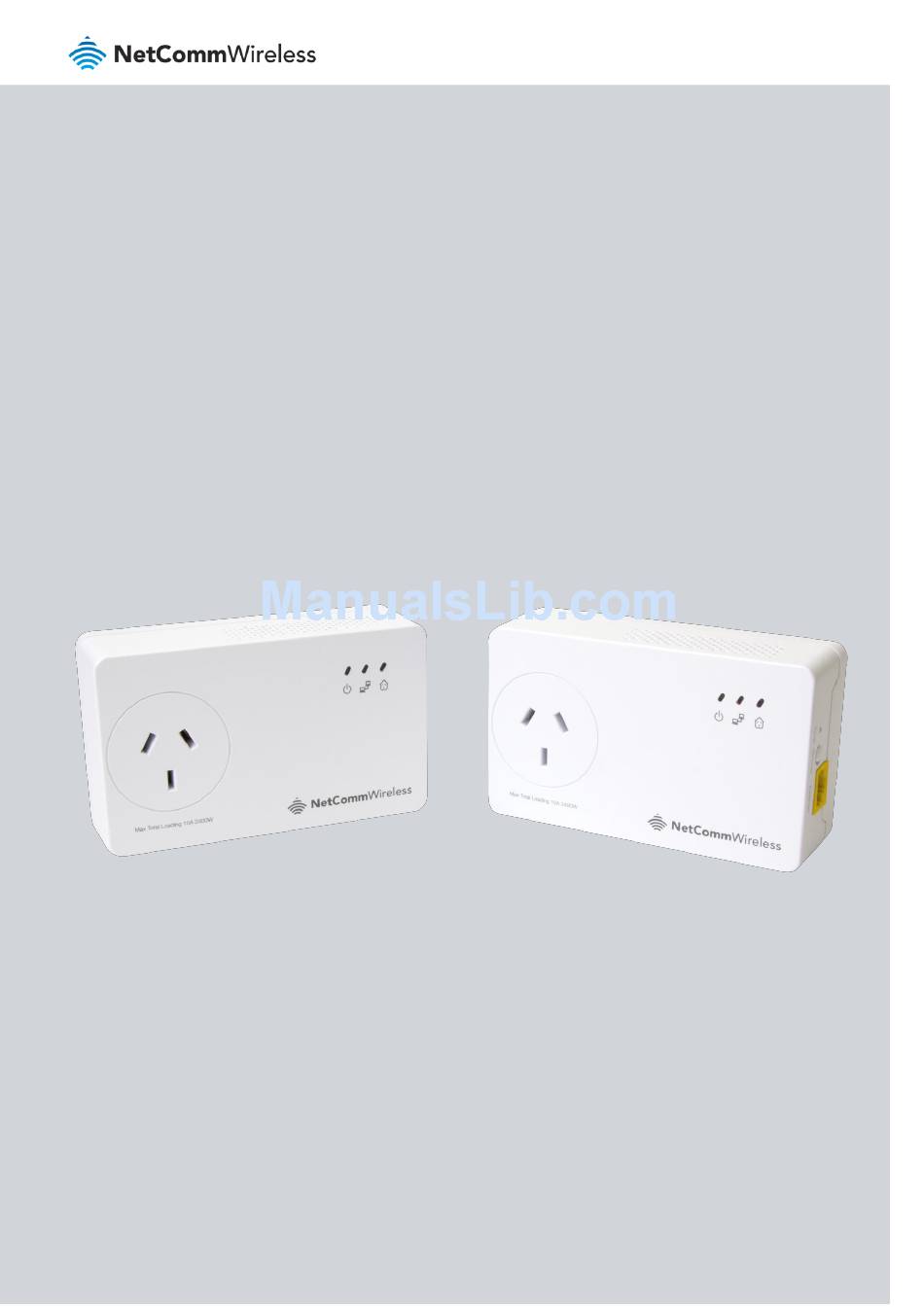

- Page 1 User Guide 1.2Gbps Powerline Kit with Gigabit Port...
- Page 2 Copyright© 2017 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
- Page 3 Document history This guide covers the following products: NetComm Wireless 1.2Gbps Powerline Kit with Gigabit Port (NP1201) Ver. Document description Date v1.0 Initial document release 6 March 2017 Table i. - Document revision history 1.2Gbps Powerline Kit with Gigabit Port 3 of 17 v1.0...
-
Page 4: Table Of Contents
Map View ............................................13 Detailed View ..........................................14 Device Setup ........................................... 14 Advanced ............................................15 Options 15 Legal & Regulatory Information ................................. 16 Product Warranty ....................................16 Limitations of Warranty ..................................17 4 of 17 User Guide © NetComm Wireless 2017 v1.0... -
Page 5: Overview
Overview Introduction This document provides you all the information you need to set up, configure and use the NetComm Wireless 1.2Gbps Powerline Kit with Gigabit Port. Prerequisites For advanced configuration of the Powerline Kit, please confirm that you have the following: An electronic computing device with a working Ethernet network adapter and a web browser such as Internet Explorer®, Mozilla Firefox®... -
Page 6: Product Introduction
The package contains the following items: 2 x Powerline adapters 2 x Ethernet cables Quick start guide If any of these items are missing or damaged, please contact NetComm Wireless Support immediately by visiting the NetComm Wireless Support website at: http://support.netcommwireless.com 6 of 17 User Guide ©... -
Page 7: Interfaces And Indicators
No device connected to the Ethernet port of the Powerline adapter. Powerline adapter is connected to a powered wall socket. Blinking The powerline adapter is pairing. Powerline adapter is not powered on. 1.2Gbps Powerline Kit with Gigabit Port 7 of 17 v1.0 © NetComm Wireless 2017... -
Page 8: Setting Up Your Powerline Adapters
Follow these instructions to connect them: Connect one end of the supplied Ethernet cable into a LAN Ethernet port of your modem/router. Connect the other end of the cable into one of the Powerline adapters. 8 of 17 User Guide © NetComm Wireless 2017 v1.0... - Page 9 Note: When the Powerline adapters are first plugged in to the wall sockets, they take a short time to locate and synchronize with each other. When synchronized, the Powerline LED on both adapters turn on and they are ready for use. 1.2Gbps Powerline Kit with Gigabit Port 9 of 17 v1.0 © NetComm Wireless 2017...
-
Page 10: Determining Connection Rate
Plug your Powerline adapters side-by-side where you can easily observe the LED behaviour. Upon connection, the LEDs will blink simultaneously and then the Power LED remains on steadily. Adapter X Adapter Y 10 of 17 User Guide © NetComm Wireless 2017 v1.0... -
Page 11: Resetting The Private Network Password
On Powerline adapter Z, press the Security button for 1-3 seconds. When you release the button, the Power LED and Ethernet LED will turn off and on again. 1.2Gbps Powerline Kit with Gigabit Port 11 of 17 v1.0 © NetComm Wireless 2017... - Page 12 Unplug Powerline adapter Z and then connect it to your Ethernet device using the Ethernet cables from the product package. After connecting the Ethernet cable, plug adapter Z directly to a wall outlet where you intend to use it. 12 of 17 User Guide © NetComm Wireless 2017 v1.0...
-
Page 13: Power Packet Utility
Details of remote adapters on the network are displayed including their connection speed in Mbps. You can rename a remote adapter at any time by clicking the “Rename” button. 1.2Gbps Powerline Kit with Gigabit Port 13 of 17 v1.0 © NetComm Wireless 2017... -
Page 14: Detailed View
The Device Setup page lets you specify a Private Network Name for a particular device, set the selected adapter to be a local or remote device and specify a multicast address for the selected device. The Private Network Name is also your network security key. Keep this private to protect your network. 14 of 17 User Guide © NetComm Wireless 2017 v1.0... -
Page 15: Advanced
The Options page includes the ability to turn the automatic periodic scan function on or off as well as set the scan interval. Note that this is a setting of the Power Packet Utility software and not a setting on a Powerline adapter. 1.2Gbps Powerline Kit with Gigabit Port 15 of 17 v1.0 © NetComm Wireless 2017... -
Page 16: Legal & Regulatory Information
Your product has been repaired or modified or attempted to be repaired or modified, other than by a qualified person at a service centre authorised by NetComm; and, 6. The serial number has been defaced or altered in any way or if the serial number plate has been removed. -
Page 17: Limitations Of Warranty
To the extent permitted by the Relevant Acts, in relation to your product and any other materials provided with the product (“the Goods”) the liability of NetComm under the Relevant Acts is limited at the option of NetComm to: Replacement of the Goods; or Repair of the Goods;...
