Removing Memory Module

m
Turn the system power off.
m
Press the two keyboard latches so that the keyboard can be elevated
from its normal position (Figure 2-6.1).
m
Carefully lift the keyboard assembly out to expose the mainboard.
Locate the memory sockets (Figure 2-7).
m

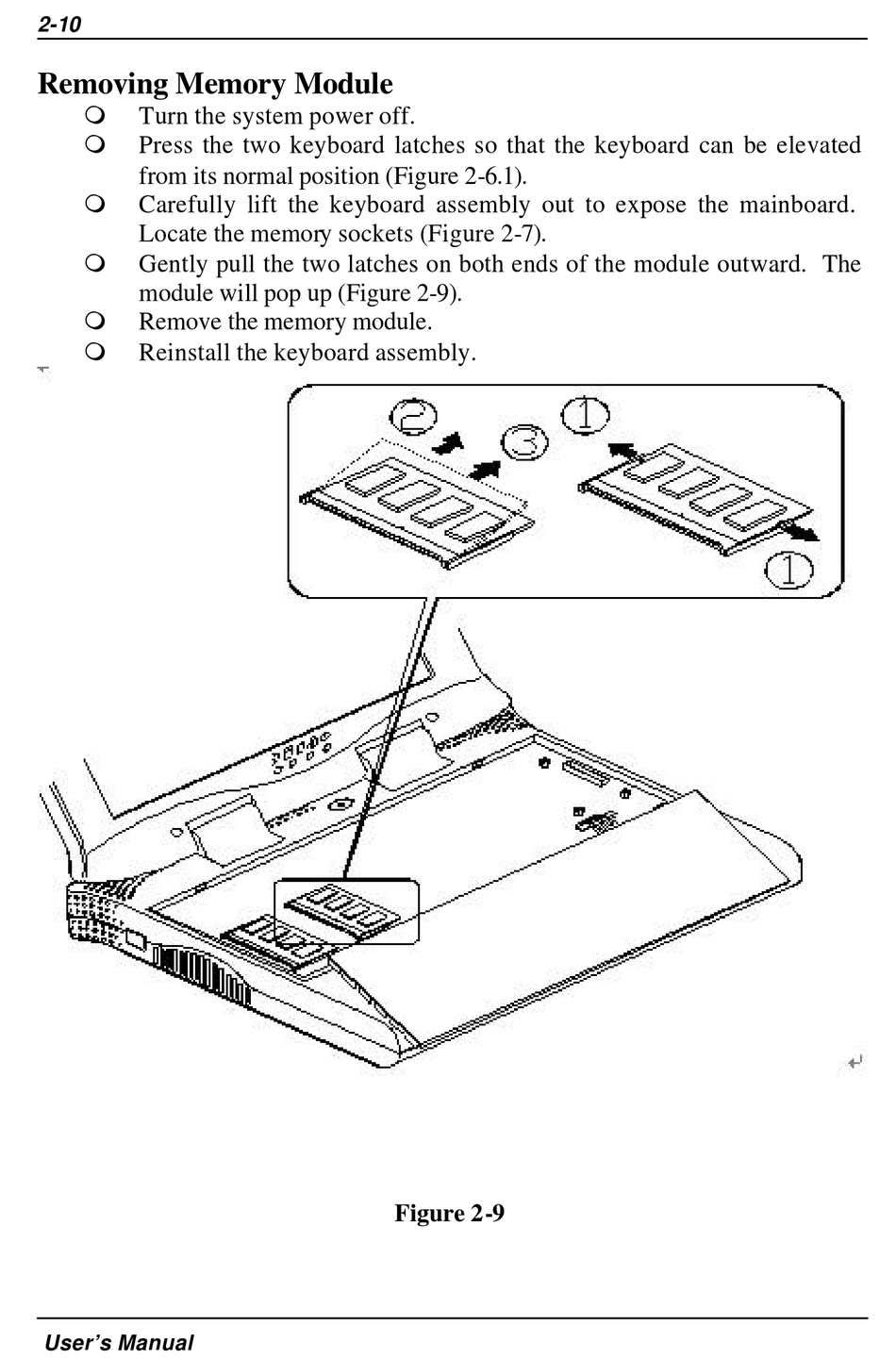

Gently pull the two latches on both ends of the module outward. The
module will pop up (Figure 2-9).
m
Remove the memory module.
m
Reinstall the keyboard assembly.
User's Manual
Figure 2-9
