1-12

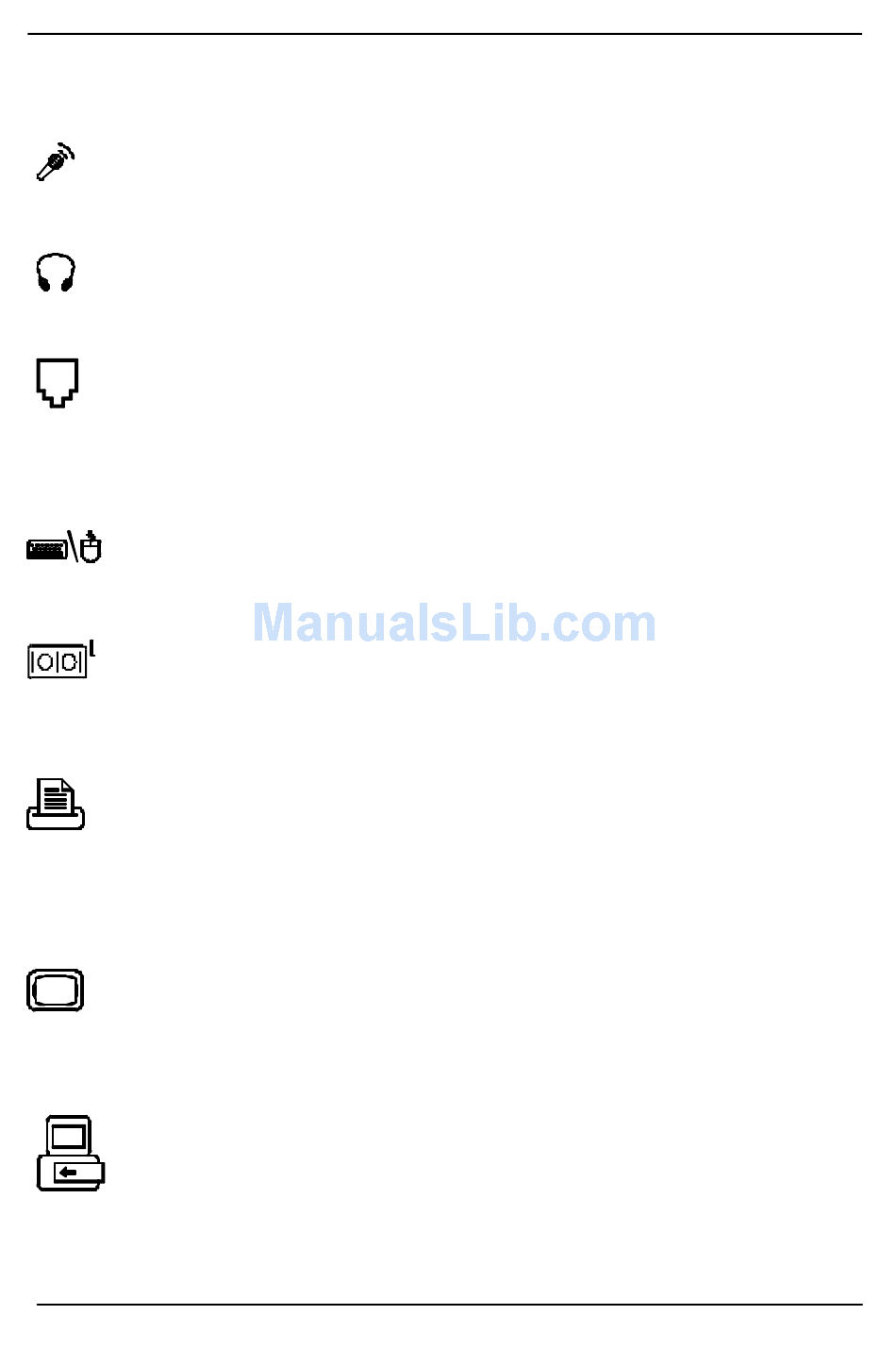

Rear View

Microphone-in Jack

Use this jack to connect a microphone to the system for audio input.

Headphone Jack

Headphone can be attached to the system through this jack for audio output,
so can external speakers that have built-in output power amplifier.

Phone Jack

The phone jack is used to support the built-in modem. To use the function,
attach a phone line to the jack and insert a modem card (Optional) into the
modem socket on the mainboard. See figures (2-21.1 / 2-21.2).

PS/2 Type Port

A PS/2 type mouse and keyboard may be connected to the system using this
port.

Serial Port

This port is NS 16C550 compatible. It features a 9-pin connector for the
addition of an external mouse for example.

Parallel Port

This parallel port supports EPP (Enhanced Parallel Port) and ECP (Extended
Capabilities Port) modes.

External Monitor (CRT) Port

This port is used for transmission of the display to an external monitor.
Simultaneous display with the LCD panel is available.

Expansion Port

This port is used to connect the proprietary Port Replicator.
