Attaching a TV Set

The S-video jack on the rear panel of the Notebook is used for transmitting
video signals to a TV set. You may need to select the video standard for video
display. Enter the System Configuration Utility (SCU), Components Menu to
specify the appropriate TV mode. Simultaneous display on external monitor
(CRT) and TV is available. You may enter the SCU to select the appropriate
parameters or use the Fn + F6 keys (refer to Chapter 2, Using Hot Keys).

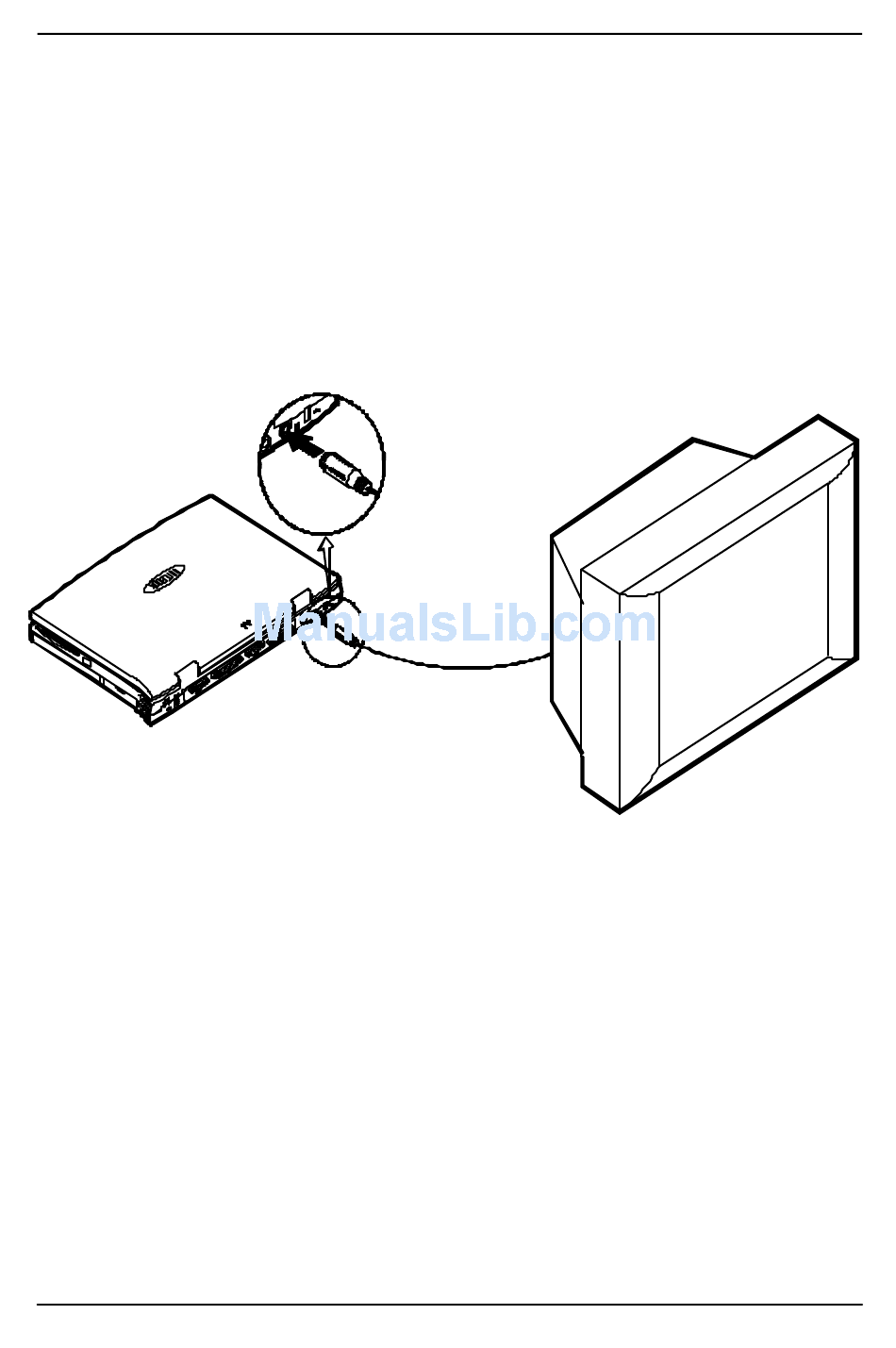

Attach the TV set as shown below (Figure 2-28).
Figure 2-28
