Using PC Card Sockets

The Notebook provides system expansion capabilities with two PC card sockets
(previously referred to as PCMCIA). PC cards to be inserted can be LAN,
fax/modem, communication devices, or expanded memory.
support 3.3V 32-bit PC cards, referred to as CardBus. The CardBus sockets are
backward compatible with 5V 16-bit PC cards. There are three types of PC
cards. Type I measures 3.3mm thick; Type II 5.0mm; and Type III 10.5mm.
The PC card sockets accommodate one Type III card or two Type II cards and
the lower socket named Socket A is capable of ZV (Zoomed Video), which
allows a direct connection between a PC card and video devices that enables
high quality video playback.

Inserting PC Cards

m
Open the access door (Figure 2-16.1).
m
Align the PC card with the slot and push it in firmly until it locks into
place (Figure 2-16.2).

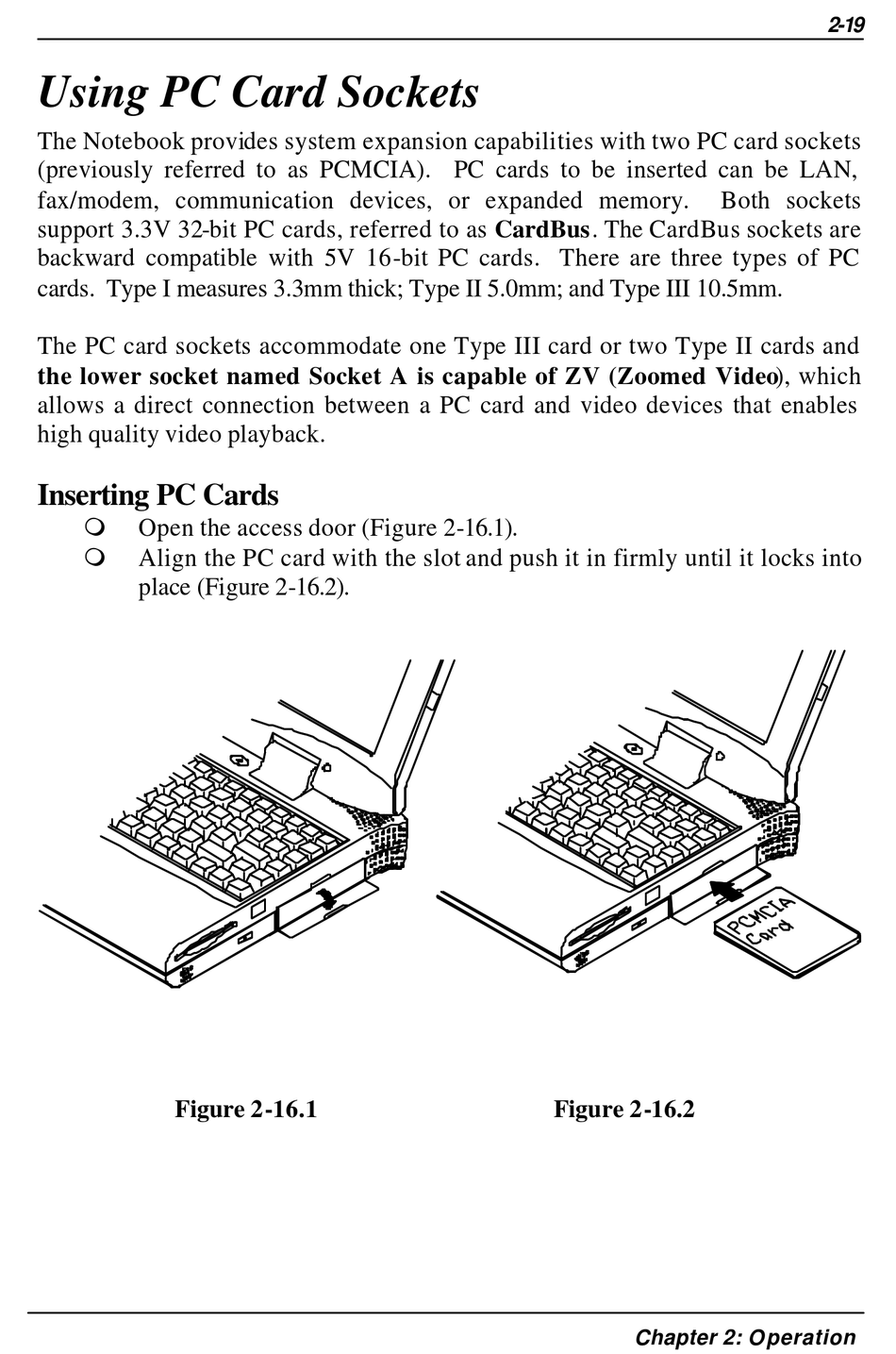

Figure 2-16.1
Both sockets
Figure 2-16.2
