User's Manual
! ! !
! !
Caution
3
Danger of explo-
sion if battery is
incorrectly
replaced. Re-
place only with
the same or
equivalent type
recommended
by the manufac-
turer. Dispose of
used batteries
according to the
manufacturer's
instructions.
3 - 8

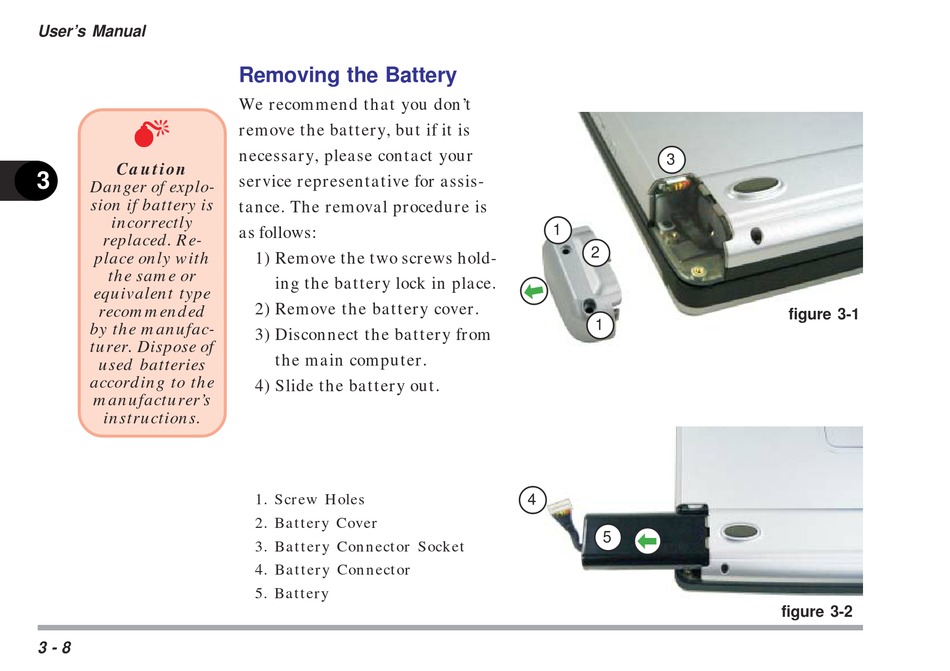

Removing the Battery

We recommend that you don't
remove the battery, but if it is
necessary, please contact your
service representative for assis-
tance. The removal procedure is
as follows:
1) Remove the two screws hold-
ing the battery lock in place.
2) Remove the battery cover.
3) Disconnect the battery from
the main computer.
4) Slide the battery out.
1. Screw Holes
2. Battery Cover
3. Battery Connector Socket
4. Battery Connector
5. Battery
3
1
2
1
4
5
figure 3-1
figure 3-2
