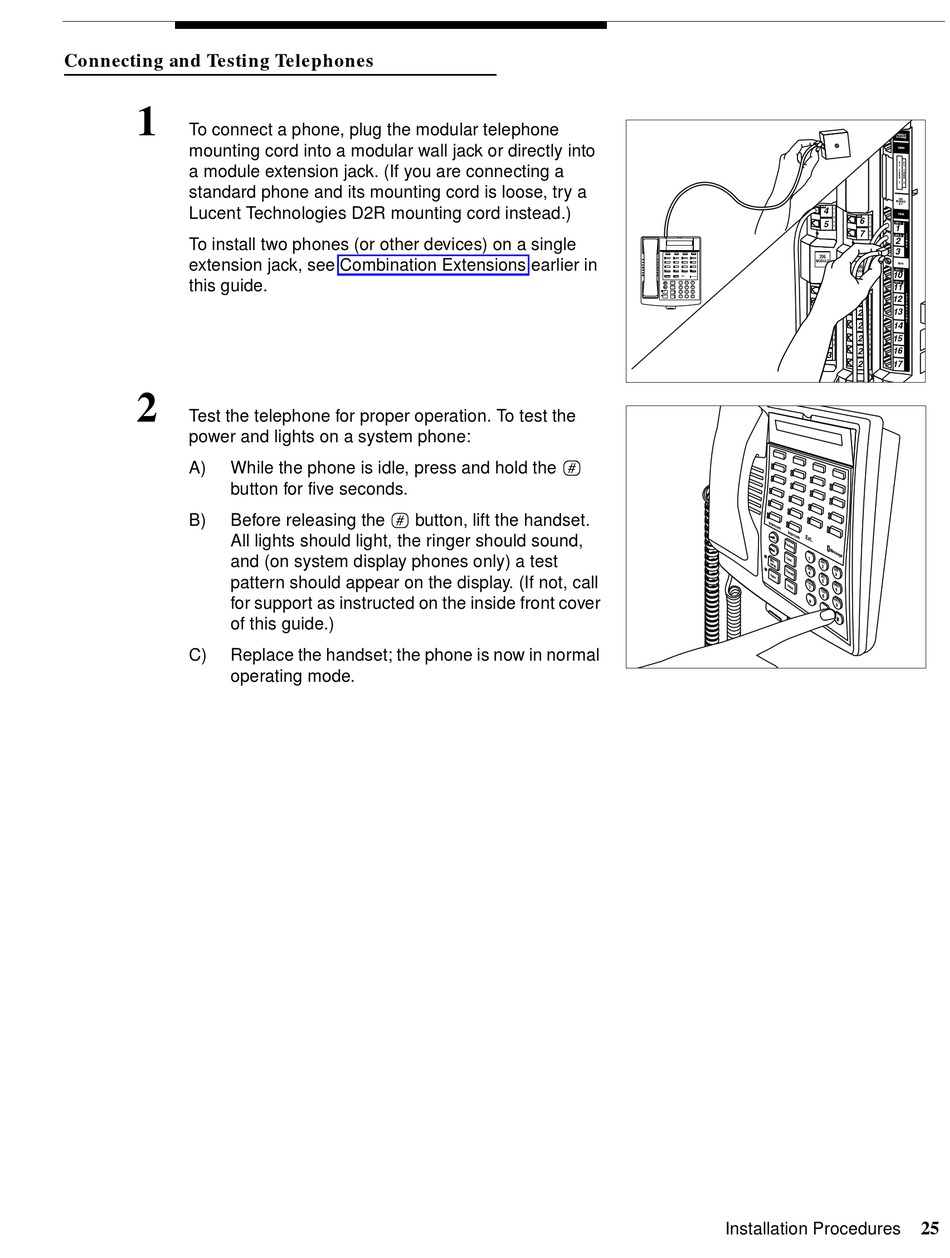

Connecting and Testing Telephones

1
To connect a phone, plug the modular telephone
mounting cord into a modular wall jack or directly into
a module extension jack. (If you are connecting a
standard phone and its mounting cord is loose, try a
Lucent Technologies D2R mounting cord instead.)
To install two phones (or other devices) on a single
extension jack, see Combination Extensions earlier in
this guide.
2
Test the telephone for proper operation. To test the
power and lights on a system phone:
A) While the phone is idle, press and hold the
button for five seconds.
B) Before releasing the
All lights should light, the ringer should sound,
and (on system display phones only) a test
pattern should appear on the display. (If not, call
for support as instructed on the inside front cover
of this guide.)
C) Replace the handset; the phone is now in normal
operating mode.
#
#
button, lift the handset.
PFT
4 L
I
N
5 E
S
206
MODULE
Ext. Message
Intercom Intercom
+ Feature ABC DEF
1 2 3
PFT
GHI JKL MNO
– Conf 4 5 6
18
Mic Transfr PQRS TUV WXYZ
HFAI 7 8 9
Spkr Hold * 0 #
E
19
X
T
20
E
N
S
21
I
O
22 N
S
23
Installation Procedures
PFT
6 L
I
N 1
7 E
S
2
3
206
MODULE
10
11
PFT
12
24
E 13
25
X
T
26 14
E
N
S
27 15
I
O
16
28
N
S
17
29
25
