Find a D4CH Modular Line Cord of the proper length to connect the network inter-
6.
face to the control unit, as shown on the floor plan. Attach one label around the cord
about 2 inches from one end. Attach the other label (containing the same informa-
tion) around the cord about 2 inches from the other end.
Plug the cord into the "Tel. Co. Lines" jack on the control unit that has the same
7.
letter (A or B) as the label. (See Figure 7.)
8. Plug the other end of the D4CH Modular Line Cord into the network interface or the
(267C) two-line adapter having the same telephone number and line number (if
relevant) as the label.
To connect additional lines, repeat Steps 5 through 8 for each telephone company
9.
line.
10.
Attach the installed modular cords to the wall or baseboard, using either staples or
adhesive-backed cable clips.
Caution: If staples are used, be careful not to pierce the cord; ensure
that cords do not create a safety hazard.
CORD/CABLE
LABEL

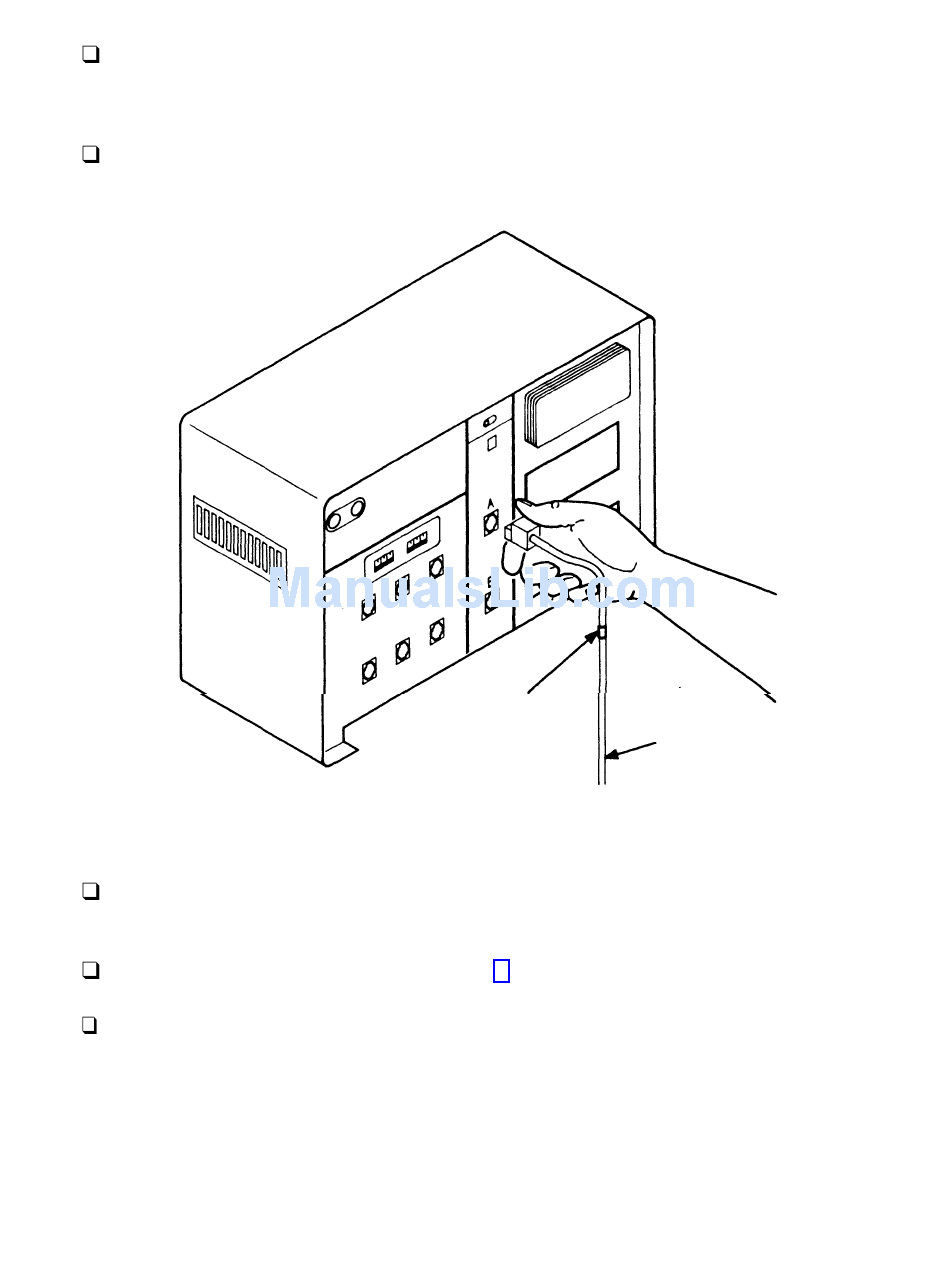

Figure 7
D4CH MODULAR
LINE CORD
